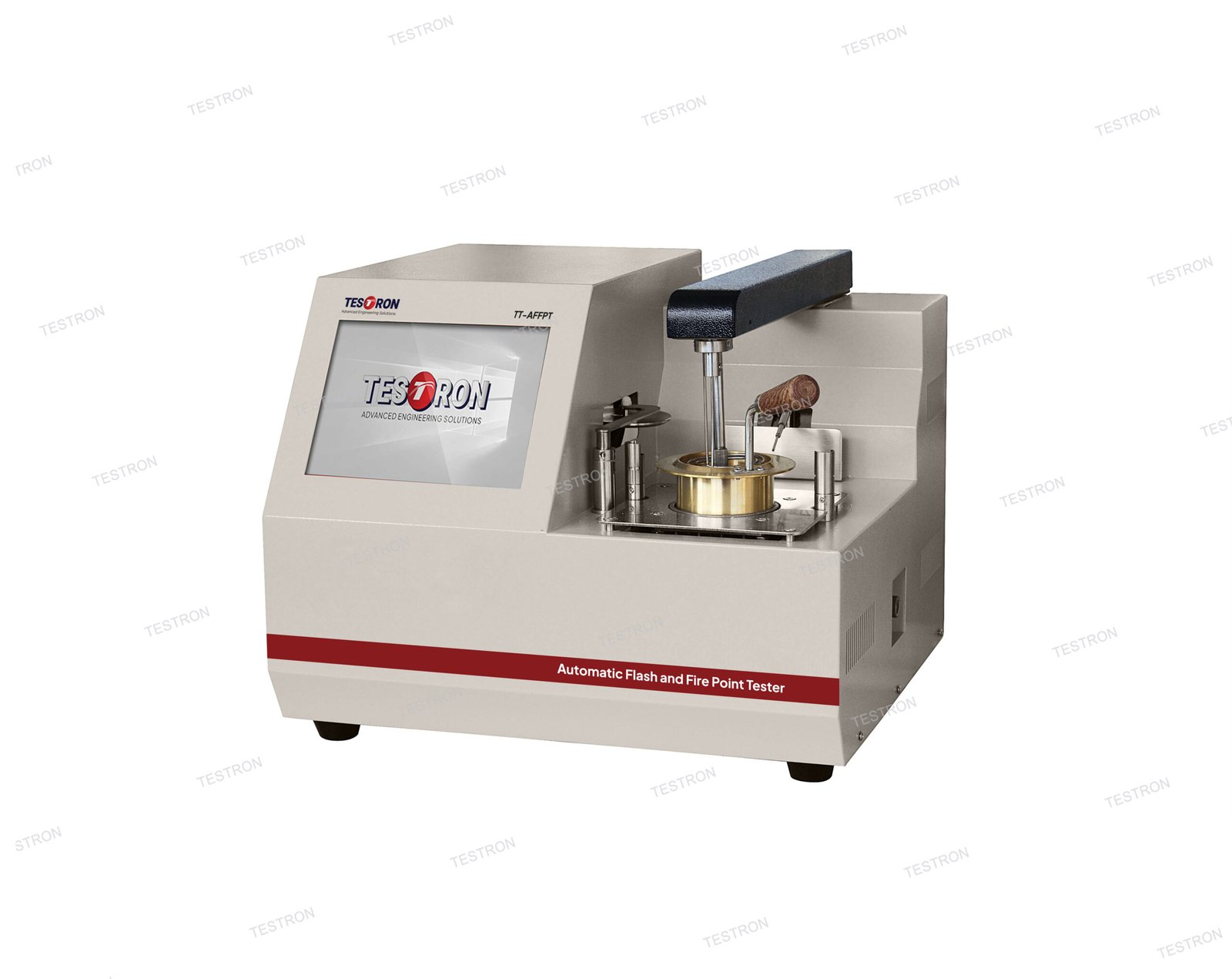

Test Standard of TT-AFPT Automatic Flash and Fire Point Tester (Cleveland Open Cup Tester)
ASTM D92
Application of TT-AFPT Automatic Flash and Fire Point Tester (Cleveland Open Cup Tester)
It is widely applied in industries such as petroleum, chemicals, transportation, and manufacturing to test materials like lubricating oils, fuel oils, bitumen, and solvents. The tester helps ensure product safety, support quality control, and meet regulatory standards related to storage, handling, and transportation of flammable substances.
Features of TT-AFPT Automatic Flash and Fire Point Tester (Cleveland Open Cup Tester)
- Embedded computer, 8-inch color LCD touch screen, all English interfaces.
- Real-time display of expected flash point, applicable standard, maximum flash point, detection sensitivity and test status and other information.
- It has the functions of automatic control of heating rate, automatic ignition, automatic judgment, automatic cooling and so on.
- Can save 500 test results, test data can be transmitted to the LIMS system.
- With electronic ignition and gas ignition two ways.
Technical Specification of TT-AFPT Automatic Flash and Fire Point Tester (Cleveland Open Cup Tester)
| Model | TT-AFPT |
| Measurement range | Room ~ 400℃ |
| Flash point detector | Flame ionization detector |
| Heating speed | 14~17℃/min & 5~6℃/min |
| Heater | 220V 0.5KW |
| Gas source | Liquefied petroleum gas/Butane |
| External dimensions | 384 X 418 X 328 (mm) |
| Weight | 15Kgs |
Standard Configuration
| Items | Qty |
| Main machine | 1 set |
| Fuse wire Φ6×30 10A | 1 piece |
| Oil cup Installed on instrument | 1 piece |
| Thermometer －6～400℃ | 1 piece |
| Thermometer adapter | 1 set |
| Windshield | 1 piece |
| Temperature sensor | 1 piece |
| LPG connection pipe | 1 piece |
| Mouse, keyboard | 1 set |
| Mainboard battery | 1 piece |
| Ruler | 1 piece |
| Hose clamp φ16 | 1 piece |
| Warranty Card | 1 copy |
| Instructional Manual | 1 copy |
