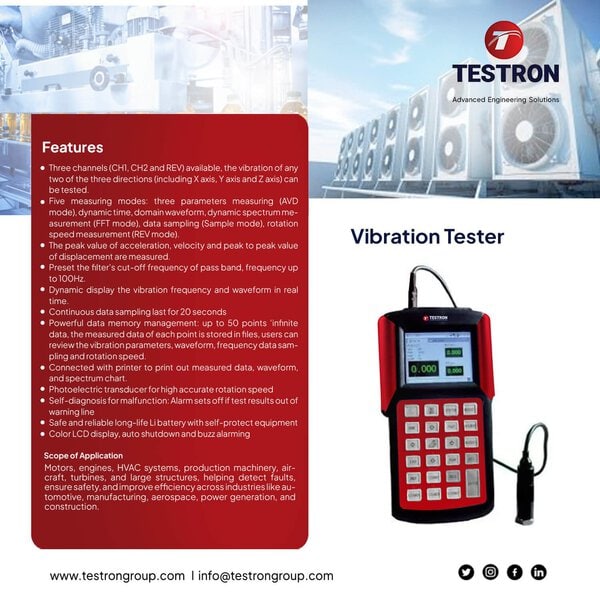

Features:
- Three channels (CH1, CH2 and REV) available, the vibration of any two of the three directions (including X axis, Y axis and Z axis) can be tested.
- Five measuring modes: three parameters measuring (AVD mode), dynamic time, domain waveform, dynamic spectrum measurement (FFT mode), data sampling (Sample mode), rotation speed measurement (REV mode).
- The peak value of acceleration, velocity and peak to peak value of displacement are measured.
- Preset the filter’s cut-off frequency of pass band, frequency up to 100Hz.
- Dynamic display the vibration frequency and waveform in real time.
- Continuous data sampling last for 20 seconds
- Powerful data memory management: up to 50 points ‘infinite data, the measured data of each point is stored in files, users can review the vibration parameters, waveform, frequency data sampling and rotation speed.
- Connected with printer to print out measured data, waveform, and spectrum chart.
- Photoelectric transducer for high accurate rotation speed
- Self-diagnosis for malfunction: Alarm sets off if test results out of warning line
- Safe and reliable long-life Li battery with self-protect equipment
- Color LCD display, auto shutdown and buzz alarming
Technical Specification:
| Sensitivity of Acceleration transducer (mVrms/g) | Acceleration (m/s2) | Velocity(mm/s) | Displacement(μm) |
| 1.0~9.9 | 1-2,000 | 1-2,000 | 10-20,000 |
| 10~99 | 0.2-200 | 0.2-200 | 5-2000 |
| Frequency range | Acceleration:5Hz~10000Hz | ||
| Velocity:5Hz~1000Hz | |||
| Displacement:5Hz~500Hz | |||
| Rotation Speed | 300~60000RPM | ||
| Tolerance | ±5% | ||
| Battery | Li battery(continuous working for 8hours) | ||
| Operating temperature | 0℃~40℃ | ||
| Humidity | ≤80%RH | ||
| Dimensions (mm) | 223×122×38 | ||
| Weight (g) | 606 | ||
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Photoelectric keyphasor transducer |
| Vibration probe TSV-03 | 1 | RS232 cable(for printing) |
| Magnetic base | 1 | TPUP-NH thermal printer |
| Protection sheath | 1 | Needle groupware |
| Power adapter | 1 | |
| USB communication | 1 | |
| SD memory card(2G) | 1 | |
| Certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
