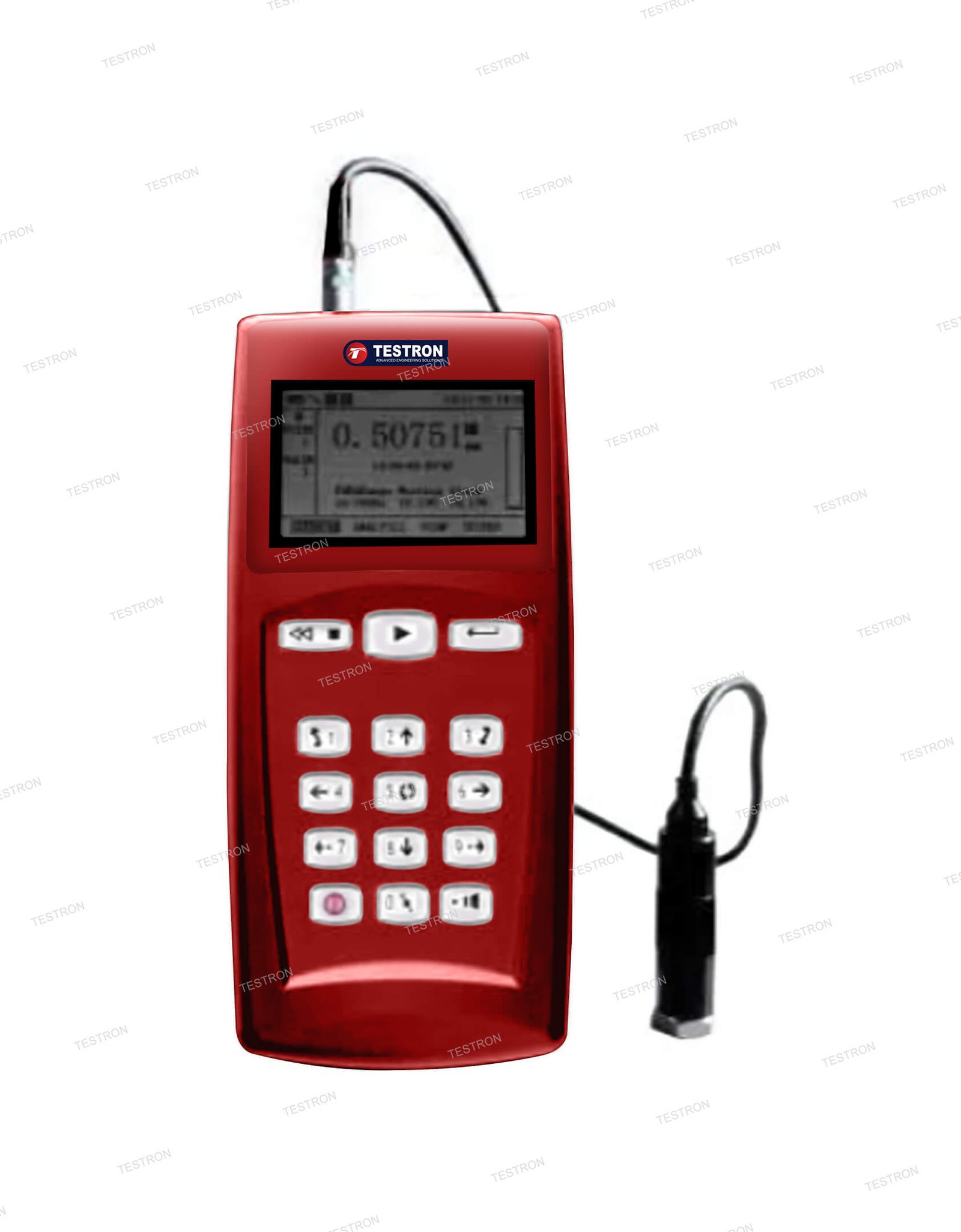

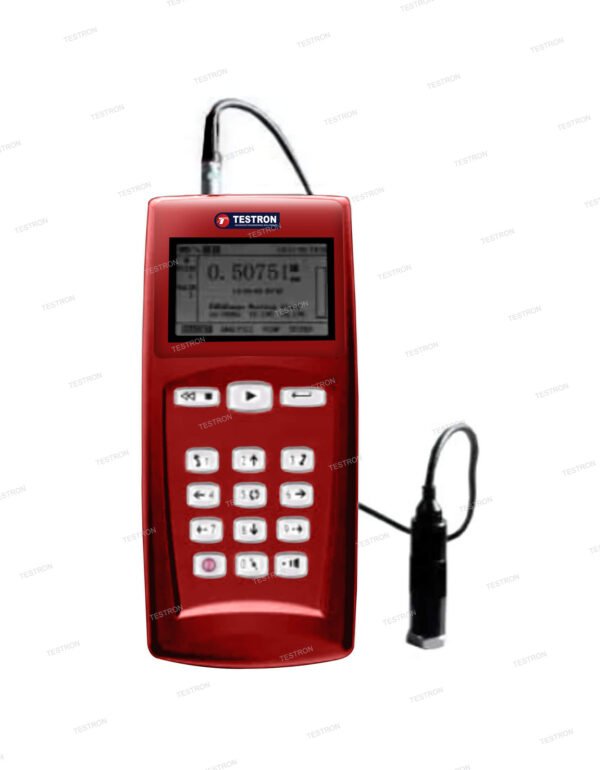

Features:
- Two display modes: digital value mode and spectrum mode
- Large memory function: 100 x 100 measured results (100 testing points, 100 data can be stored in each testing points), 100 spectrograms (each testing point can store one spectrogram)
- Spectrogram can display in real time
- Histogram can be made according to the preset alarm line
- Upper /lower limits pre-setting and sound alarm if test results out of limitation, which leads to spectrum analysis mode automatically
- Connected to PC with advanced software for more analysis needs
- Integrated with printer to print out the testing result
- 300 x 200 matrix LCD display with backlight
- Two probes for option: low and high sensitivity probes
Technical Specifications:
| Measuring range | Low sensitivity probe | |
| Acceleration | 0.1m/s2-392m/s2 (peak) | |
| Velocity | 0.01cm/s-80cm/s (RMS) | |
| Displacement | 0.001mm-18.1mm (peak-peak) | |
| High sensitivity probe | ||
| Acceleration | 0.1m/s2-20m/s2 (peak) | |
| Velocity | 0.01cm/s-4cm/s (RMS) | |
| Displacement | 0.001mm-0.8mm (peak-peak) | |
| Frequency range | Low sensitivity probe: | |
| Acceleration | 10Hz-200Hz,10Hz-500Hz, | |
| 10Hz-1KHz,10Hz-10KHz | ||
| Velocity | 10Hz-200Hz, 10Hz-500Hz,10Hz-1KHz | |
| Displacement | 10Hz-200Hz,10Hz-500Hz | |
| High sensitivity probe | ||
| Acceleration | 10Hz-200Hz,10Hz-500Hz, | |
| 10Hz-1KHz,10Hz-10KHz | ||
| Velocity | 10Hz-200Hz, 10Hz-500Hz,10Hz-1KHz | |
| Displacement | 10Hz-200Hz,10Hz-500Hz | |
| Accuracy | ±5% | |
| Power | Li battery (continuous working 20 hours without backlight) | |
| Temperature | 0~40℃ | |
| Humidity | ≤80%RH | |
| Dimension (mm) | 171×78.5×28 | |
| Weight (g) | 230 | |
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Needle groupware |
| Protection pocket | 1 | |
| Low sensitivity probe | 1 | |
| High sensitivity probe | 1 | |
| Power adapter | 1 | |
| Magnetic base | 1 | |
| Certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
