Application of TT-6580E Leeb Hardness Tester (Enhanced-type)
Application to Die cavity of molds, Inspection of bearing and other mass-produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces, Testing surface of a small hollow space, etc.

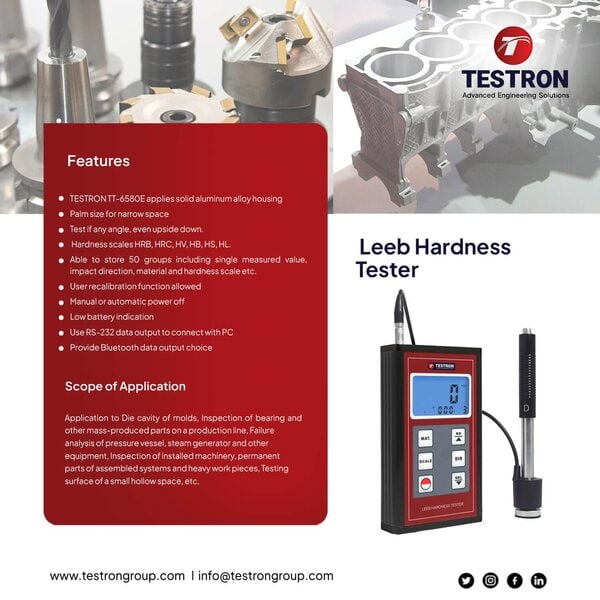

Features of TT-6580E Leeb Hardness Tester (Enhanced-type)

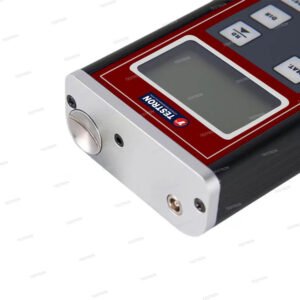

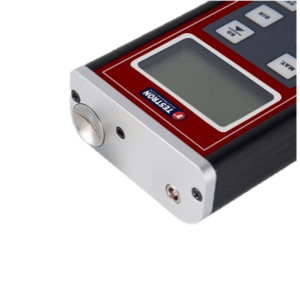

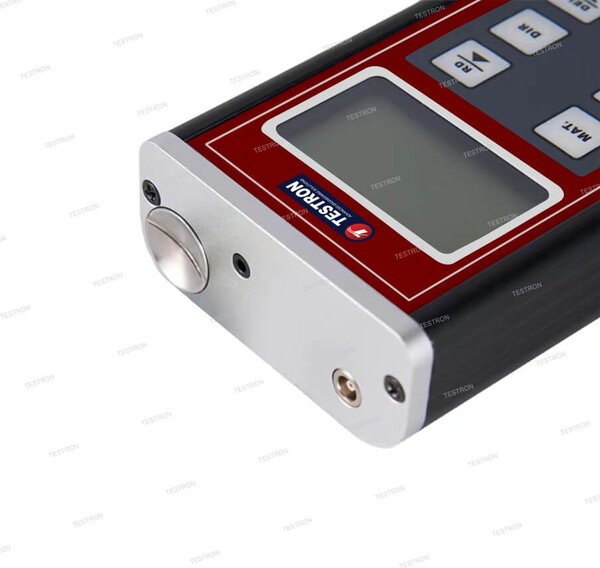

- TESTRON TT-6580E applies solid aluminum alloy housing
- Palm size for narrow space
- Test if any angle, even upside down.
- Hardness scales HRB, HRC, HV, HB, HS, HL.
- Able to store 50 groups including single measured value, impact direction, material and hardness scale etc.
- User recalibration function allowed
- Manual or automatic power off
- Low battery indication
- Use RS-232 data output to connect with PC
- Provide Bluetooth data output choice
Technical Specification of TT-6580E Leeb Hardness Tester (Enhanced-type)
| Model | TT-6580E |
| Display | LCD |
| Materials | 9 different common materials (Steel & Cast Steel, C.W Tool Steel, Stainless Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum, Brass, Bronze, Copper) |
| Measuring range | 170~190 (HLD) |
| Accuracy | Display Error ±12 |
| Repeatability | ±12 |
| Conversion | HL-HRC-HRB-HB-HV-HSD |
| Memory | 50 data can be stored and re-readable |

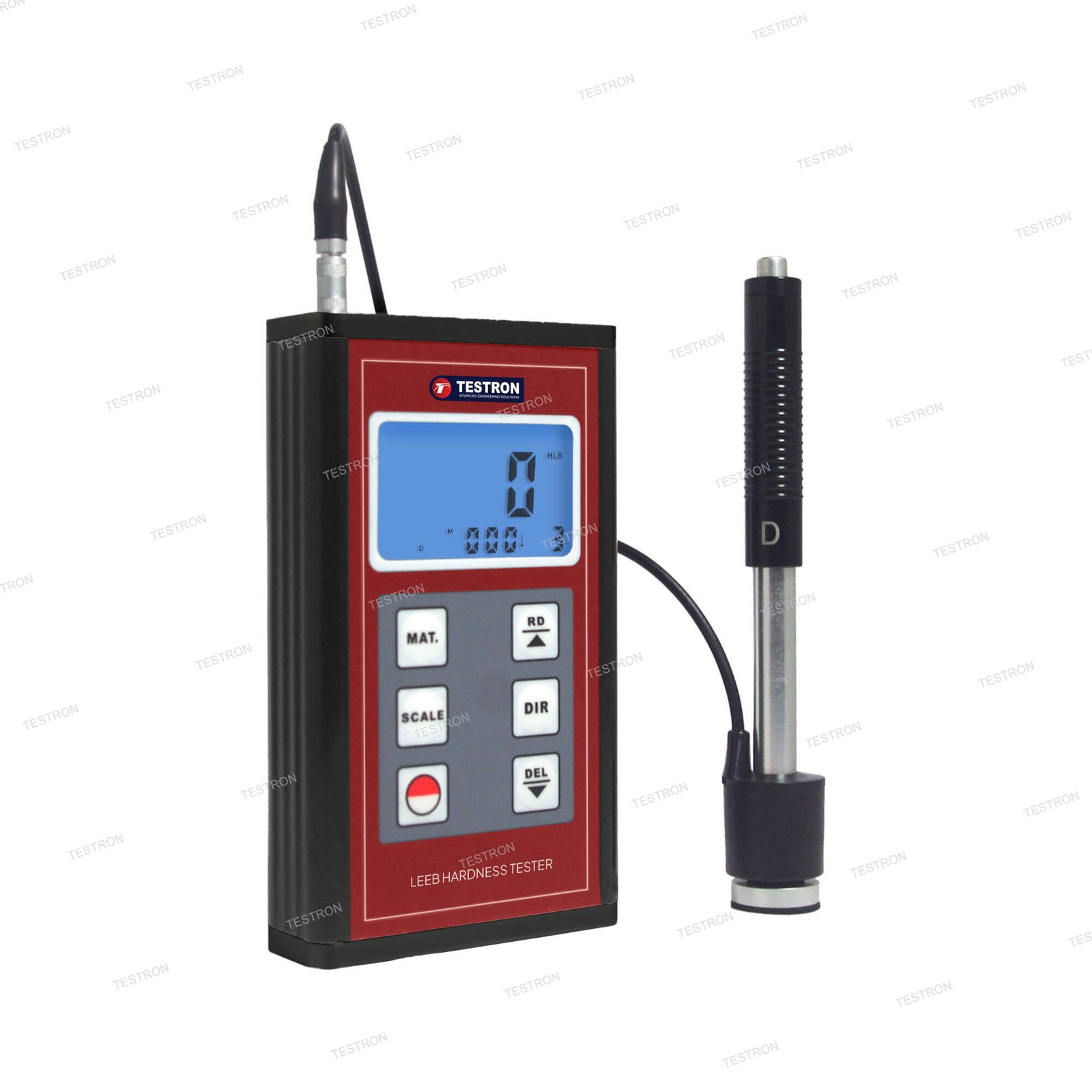

| Impact Device | Probe D, Weight: 75g |
| Storage Temperature | -30~60°C |
| Operating Conditions: Temperature | -10~50°C |
| Humidity | <90 %RH |

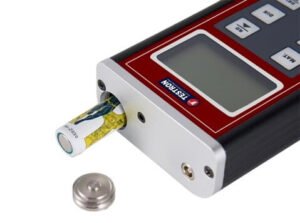

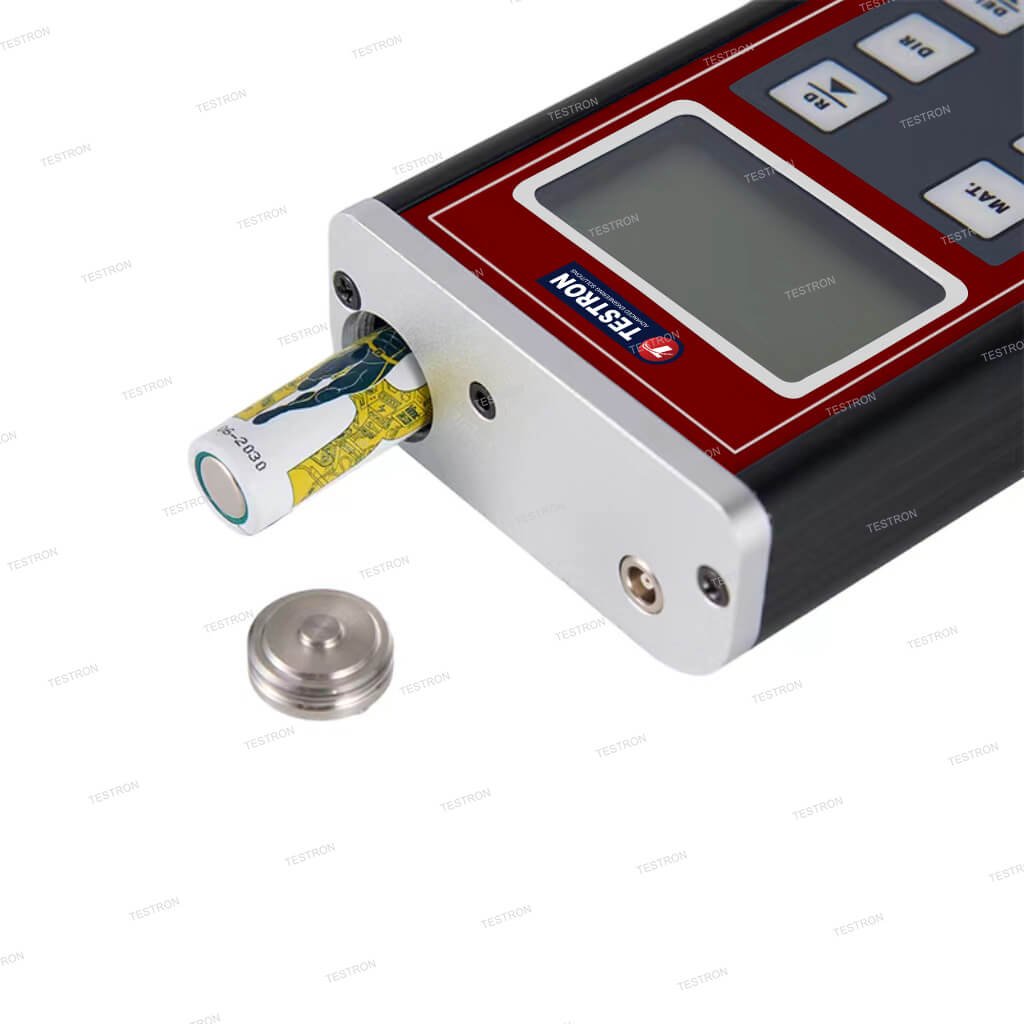

| Power Supply | 2×1.5 AA (UM-3) Battery |
| Dimensions | 130x76x32mm |
| Weight | 340g (Not including batteries) |

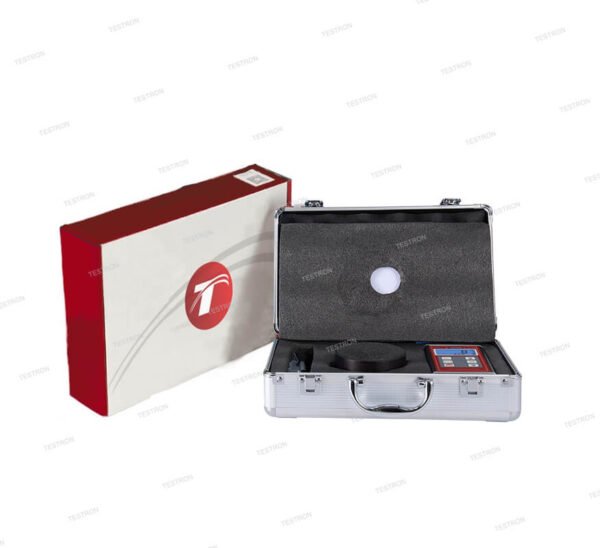

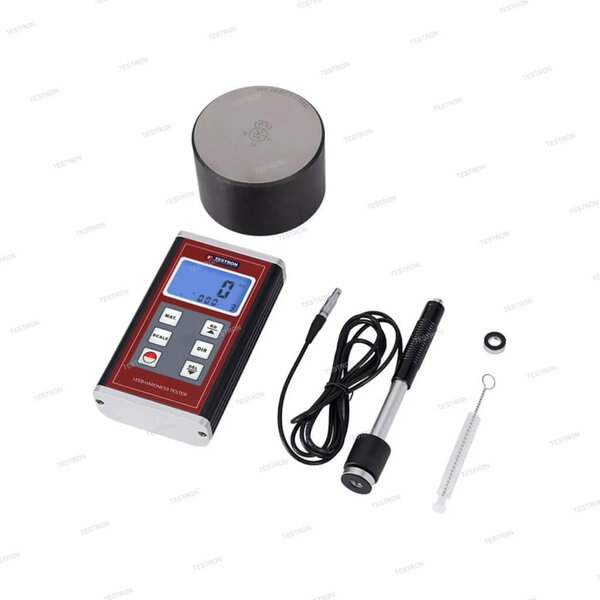

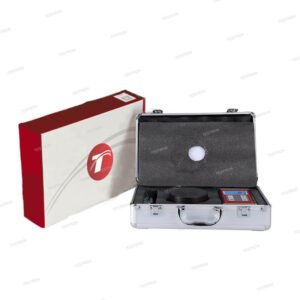

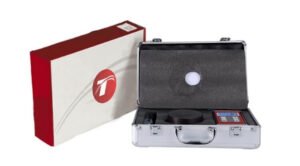

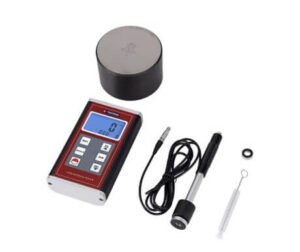

| Standard accessories | Main unit, Standard Test Block, Small Support Ring, Carrying Case (B09), Manual Book, Cleaning Brush |
| Probe With Cable | |
| Optional Accessories | Support Rings Set, Impact Body, RS-232C Data Cable with Software, Bluetooth Data Adapter with Software |
Supporting Ring Set of TT-6580E Leeb Hardness Tester (Enhanced-type)
| No. | Model | Sketch of Supporting Ring | Remarks |
| 1 | Z10-15 |  | For Testing Cylindrical Outside Surface R10~R15 |
| 2 | Z14.5-30 | For Testing Cylindrical Outside Surface R14.5~R30 | |
| 3 | Z25-50 | For Testing Cylindrical Outside Surface R25~R50 | |
| 4 | Z11-13 |  | For Testing Cylindrical Outside Surface R11~R13 |
| 5 | HZ12.5-17 | For Testing Cylindrical Outside Surface R12.5~R17 | |
| 6 | HZ16.5-30 | For Testing Cylindrical Outside Surface R16.5~R30 | |
| 7 | K10-15 |  | For Testing Spherical Outside Surface SR10~SR15 |
| 8 | K14.5-30 | For Testing Spherical Outside Surface SR14.5~SR30 | |
| 9 | HK11-13 |  | For Testing Spherical Outside Surface SR11~SR13 |
| 10 | HK12.5-17 | For Testing Spherical Outside Surface SR12.5~SR17 | |
| 11 | HK16.5-30 | For Testing Spherical Outside Surface SR16.5~SR30 | |
| 12 | UN |  | For testing cylindrical outside surface, radius adjustable R10~∞ |
