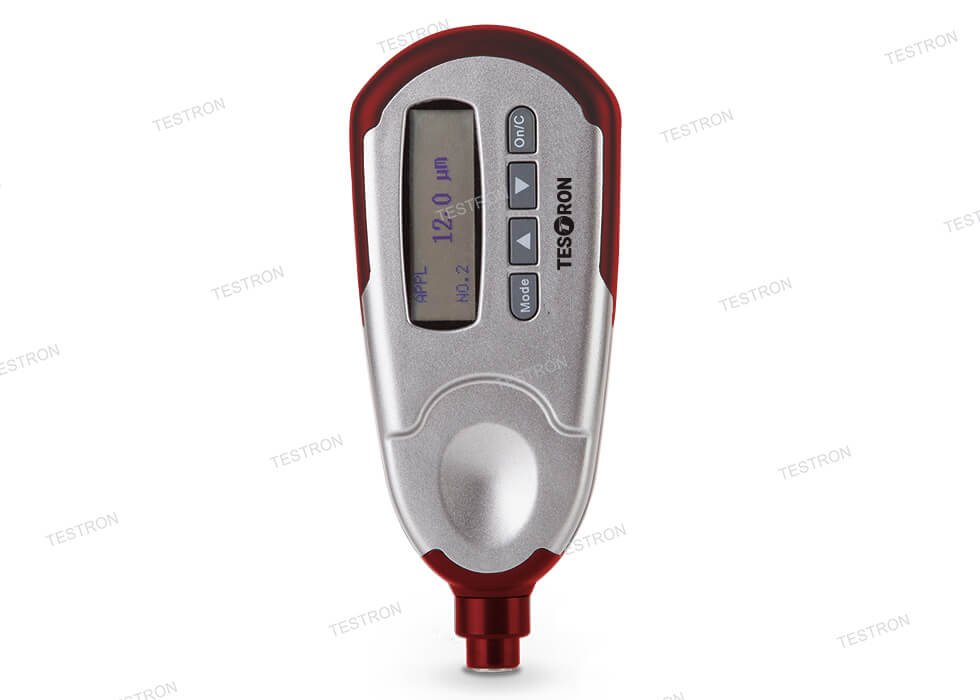

TT-2501 Digital Coating Thickness Gauge

TESTRON TT-2501 Digital Coating Thickness Gauge is integrated with Probe N: the eddy current principle to measure the thickness of insulating coatings on non-magnetic materials (enamel, rubber, paint and plastics coatings on the base of copper, aluminum, zinc, tin, etc.).

Inquiry Now

Description

Application of TT-2501 Digital Coating Thickness Gauge

Inspect paint thickness on vehicles to detect repainting or bodywork.
Check powder coating thickness on alloy wheels and components.
Check coatings on steel structures (e.g., bridges, pipelines, storage tanks) for compliance with safety and durability standards.
Monitor paint degradation or wear over time.
Measure thin coatings on components like circuit boards, sensors, or micro-machined parts.

Features of TT-2501 Digital Coating Thickness Gauge

TT-2500 is integrated with probe F: magnetic induction principle to test the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. Iron, nickel etc.).
Zero-point calibration and two-point calibration to correct the system error of the probe
Features two working modes: DIRECT and BATCH & two measuring ways: CONTINUE and SINGLE
Statistics include the mean, maximum, minimum, test numbers and standard deviation.
Memory of 500 data
Deletion of current data, calibrated data, limit data and all data stored.
Low battery indication and error alarm
Buzz during operation for indication
Backlight for the screen
Auto or manual shutdown

Technical Specifications of TT-2501 Digital Coating Thickness Gauge

Model		TT-2501
Probe Type		TT-2500		TT-2501
Measuring Methods		Magnetic induction (F)		Eddy current(N)
Measuring range		0~1250μm
Display resolution		0.1μm
Tolerance	Zero-point calibration(μm)	± (3%H+1)			± (3%H+1.5)
	Two points calibration(μm)	± [(1%~3%) H+1]			± [(1%~3%) H+1.5]
Measuringcondition	Min. curvature radius(mm)	convexity 1.5	concave 9		convexity 3	concave 10
	Min testing area diameter(mm)	Ø7			Ø5
Power		AAA 1.5V Battery (2 pcs)
Working environment		0~40℃; humidity: 20%~90%
Dimensions (mm)		145×60×28
Weight (g)		132
