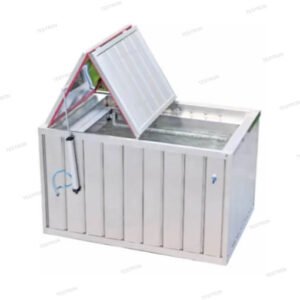

Thermal Tank Standards:
- ISO 1167
- ASTM D 1598
- ASTM D 1599
Thermal Tank Features:
- The circulation system guarantees high accuracy and uniform temperature distribution.
- With the excellent thermal insulation of the basic container, even when the water temperature rises up to 95 ℃ the outer lid is still at ambient temperature, which helps to enhance the security and save more than 70% of power consumption.
- Special lid seals keep steam and heat in the test bath and protect against injuries.
- Quick-release couplings and ergonomic arrangement of the manifolds enable easy connection of the test samples.
- The structural bracing frame provides excellent supporting capacity and anti-deforming capacity.
- Lid open: pneumatic control, an opening degree can be adjusted on customer’s requirement.
- Automatic water level control, if the water level is lower than the preset value, it will be re-established automatically by introducing water in a way that the preset temperature will not fluctuate too much (fluctuation is less than 0.2℃).
- Supplying a wide selection of test bath sizes with 3 different lid systems.
Thermal Tank Technical specifications:
- Temperature resolution ±0.1℃
- Temperature 15℃ to 95℃
- Temperature accuracy ±0.5℃
- Number of test stations 1 to 50 on request
- Internal dimension depends on the pipe diameter
