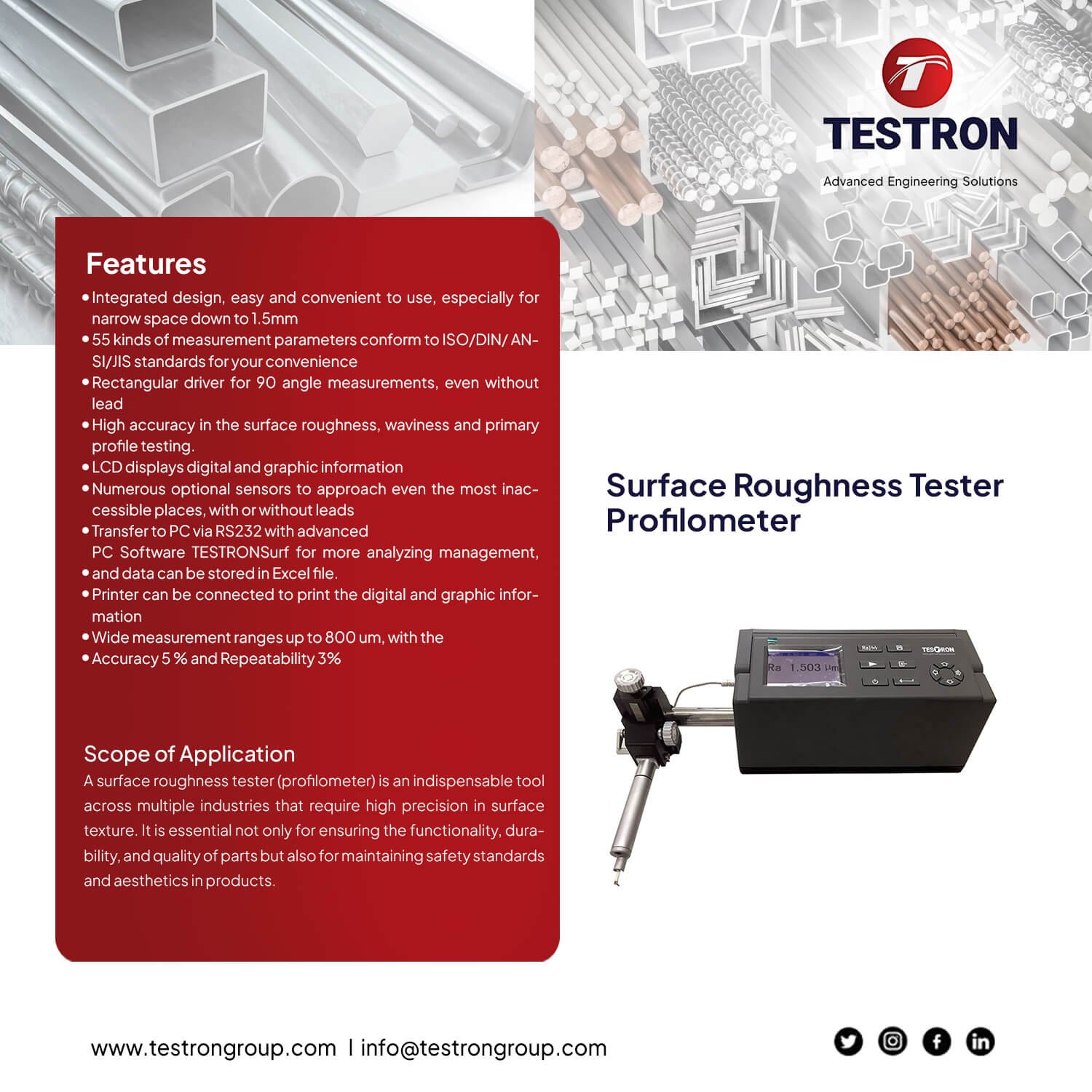

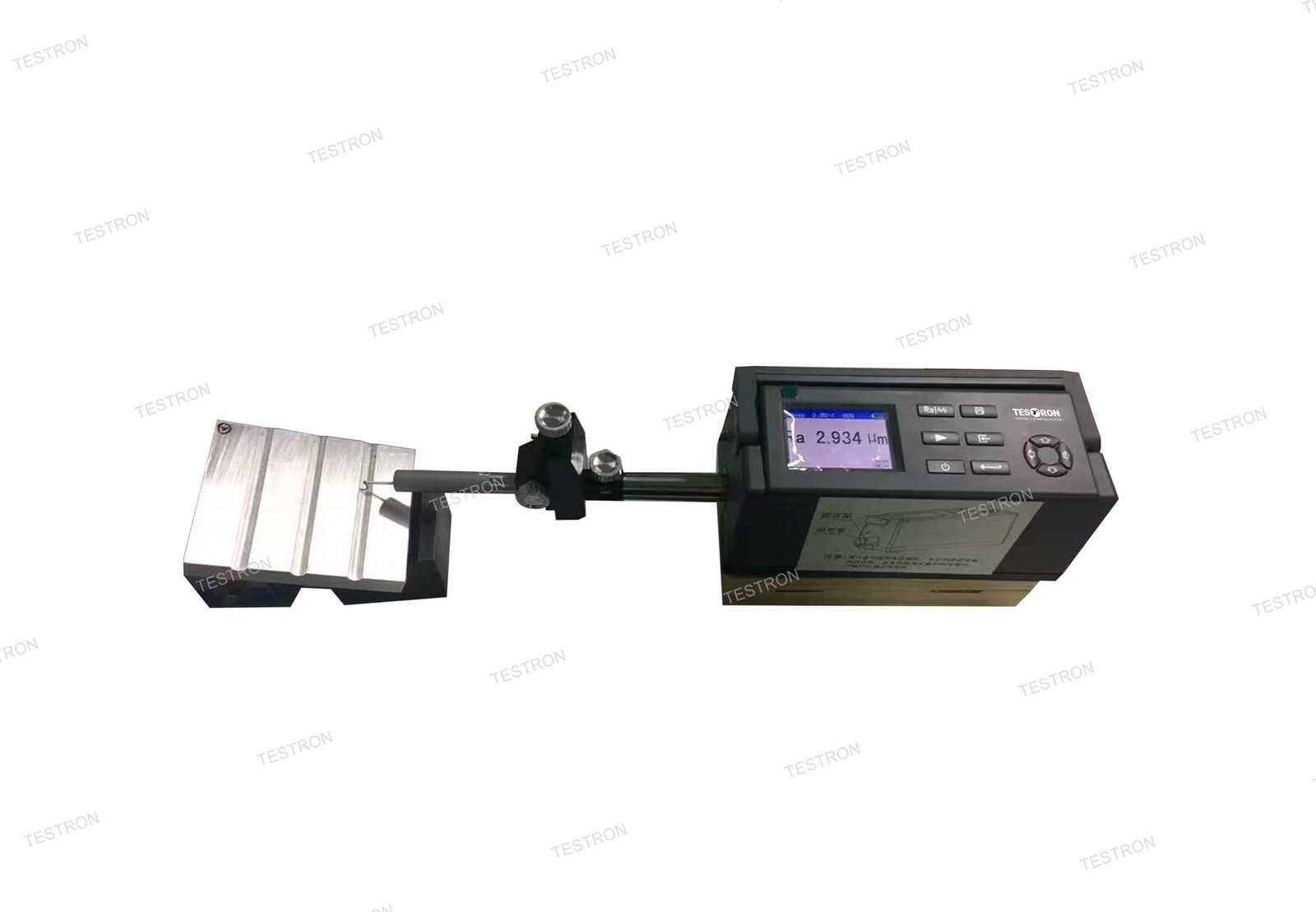

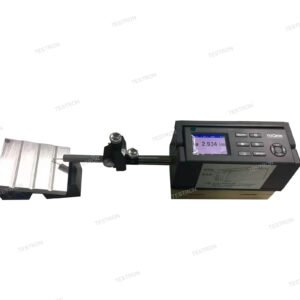

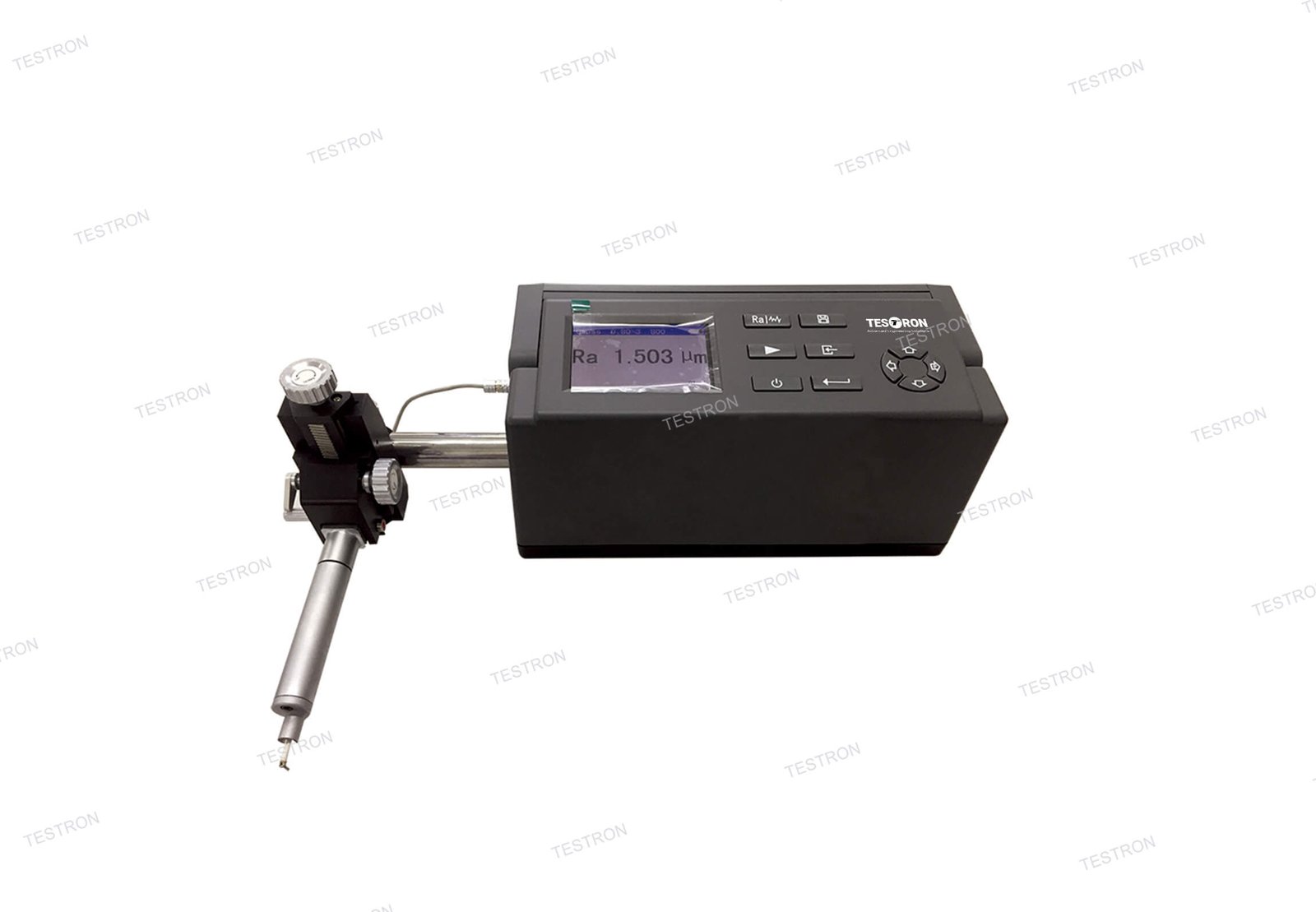

- Integrated design, easy and convenient to use, especially for narrow space down to 1.5mm
- 55 kinds of measurement parameters conform to ISO/DIN/ ANSI/JIS standards for your convenience
- Rectangular driver for 90 angle measurements, even without lead
- High accuracy in the surface roughness, waviness and primary profile testing.
- LCD displays digital and graphic information
- Numerous optional sensors to approach even the most inaccessible places, with or without leads
- Transfer to PC via RS232 with advanced
- PC Software TESTRON Surf for more analyzing management, and data can be stored in Excel file.
- Printer can be connected to print the digital and graphic information
- Wide measurement ranges up to 800 ums, with the Accuracy 5 % and Repeatability 3%
Optional Accessory of TT-3231 Surface Roughness Tester Profilometer
- PC software (TestronSurf for Testron323X)
- RS232 communication cable
Technical Specifications of TT-3231 Surface Roughness Tester Profilometer
| Model | TT-3231 |
| Assessed profile | R (Roughness), W (Waveness), P (Primary profile) |
| Measuring range | ±400μm, ±25μm |
| Filtering | RC, PCRC, Gauss, D-P, ISO 13565 |
| Parameters | R: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,Rku,Rc,RS,RSm,Rlo,RHSC,Rpc,Rmr(c),RzJIS,R3y,R3z
|
| W: Wa, Wp, Wv, Wt, Wz, Wq, Wsk, Wku, Wc, WS, WSm, Wlo, WHSC, Wpc, Wmr(c), WzJIS | |
| P: Pa, Pp, Pv, Pt, Pz, Pq, Psk, Pku, Pc, PS, PSm, Plo, PHSC, Ppc, Pmr(c), PzJIS
|
|
| Rk: Rk,Rpk,Rvk,Mr1,Mr2 | |
| Cut-off length | 0.08mm,0.25mm,0.8mm,2.5mm,8mm,10mm |
| Max. tracing length | 40mm |
| Analysis graphs | ADC, BAC |
| Evaluation length | 1L-5L |
| Resolution | 0.001μm/50μm；0.016μm/800μm |
| Tolerance | ±5% |
| Display | LCD |
| Memory | 10 groups of primary data |
| Data output | RS232, USB |
| Power supply | Li battery / AC adapter |
| Dimensions (mm) | 409×96×98 |
| Weight (g) | 2300 |
|
Assessed profile |
R (Roughness), |
|
Measuring range |
±400μm, ±25μm |
|
Filtering |
RC,PCRC,Gauss,D-P,ISO 13565 |
|
Parameters |
R: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,Rku,Rc,RS,RSm,Rlo,RHSC,Rpc,Rmr(c), RzJIS, R3y, R3z W: Wa,Wp,Wv,Wt,Wz,Wq,Wsk,Wku,Wc,WS,WSm, Wlo,WHSC,Wpc,Wmr(c),WzJIS |
|
Cut-off length |
0.08mm,0.25mm,0.8mm,2.5mm,8mm |
|
Max. tracing length |
40mm |
|
Analysis graphs |
ADC, BAC |
|
Evaluation length |
1L-5L |
|
Resolution |
0.001μm/50μm；0.016μm/800μm |
|
Tolerance |
±5% |
|
Display |
LCD |
|
Memory |
10 groups of primary data |
|
Data output |
RS232,USB |
|
Power supply |
Li battery / AC adapter |
|
Dimensions (mm) |
409×96×98 |
|
Weight (g) |
2300 |
