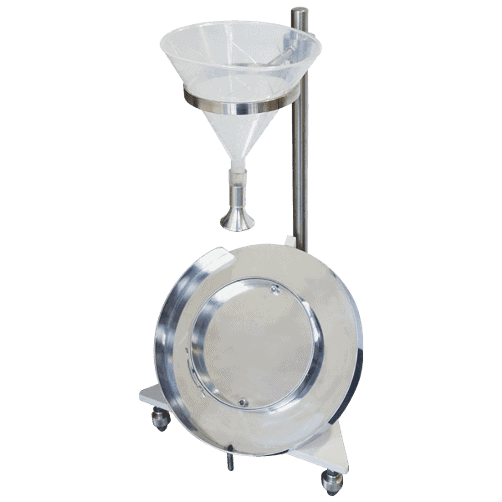

Spray Tester may test water-proof or non-water-proof textile surface water resistance. Clamping textile with 45 degree angle on grip, hold open around 150mm diameter plane, putting sprayer above sample center 150mm, spraying 250 cc water from 45 degree angle to the surface of sample within 25-30 seconds. Comparing after test sample soak condition by the classification levels from standards.
JIS L1092, BS EN 24920, AATCC 22, ISO 4920, ASTM D1913-2000, ASTM D583-54
| Sample Size | 18 × 18 cm |
| Sample Ring | Ø150 mm |
| Tilting Angle | 45º |
| Spray distance | 6” |
| Water volume | 250ml，Spray Time：25 ~ 30Sec |
| Dimension | 30 × 30 × 65 cm |
| Weight | 9 kg |
