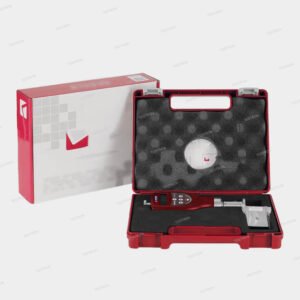

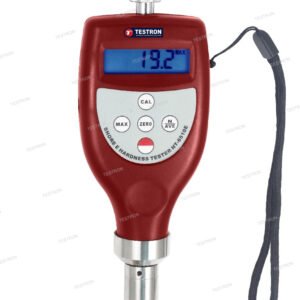

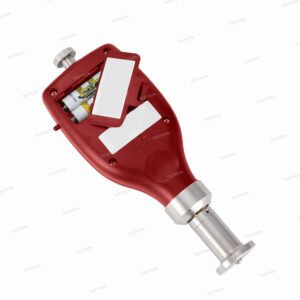

Shore Hardness Tester Features:
●Digital Shore A hardness tester for testing the hardness of soft rubber, plastics and other elastomeric materials
●Built-in displacement sensor, small size, easy to operate and easy to carry
●1.3 inch OLED screen, 128X64 dot matrix.
●Two testing modes: real-time testing and Peak-value-lock testing
●200 groups of average peak values can be stored.
●USB interface to connect with PC
●Software optional to manage the testing data output in Word or Excel for analysis.
●Pre-set upper/lower limits and out-of-limit alarm
●Automatically power off
| Model | TT-5430 |
| Test scale available | Shore A |
| Standards | DIN53505,ASTM D2240,ISO 7619,JIS K7215 |
| Display | Hardness result, Average value, Max value (Peak value lock), Battery indication |
| Data output | USB |
| Measuring range | 0~100HA |
| Tolerance | ±1HA |
| Display resolution | 0.1HA |
| Power supply | Built in 3.7V rechargeable battery |
| Operating temperature | 0~40℃ |
| Continuous working time | 20 hours |
| Dimensions (mm) | 173×56 ×42 |
| Weight (g) | 175 |
| Model | TT-5431 |
| Measuring range | 0～100HD |
| Tolerance | ≤±1 HD (within 20～90HD） |
| Resolution | 0.1HD |
| Power | Built-in rechargeable Li battery |
| Dimensions | 173mm×56mm×42mm |
| Weight | 200g |
| Model | TT-210FJ / TT-220FJ | |
| Max. thickness of sample (mm) | 80 | |
| Max. diameter of working table (mm) | Ø116 | |
| Max. lifting displacement (mm) | 24 | |
| Max. touch distance between pressure foot and working table (mm) | 0.05 | |
| Dimensions (mm) | 420X200x170 | |
| Weight (g) | 22000 | |
