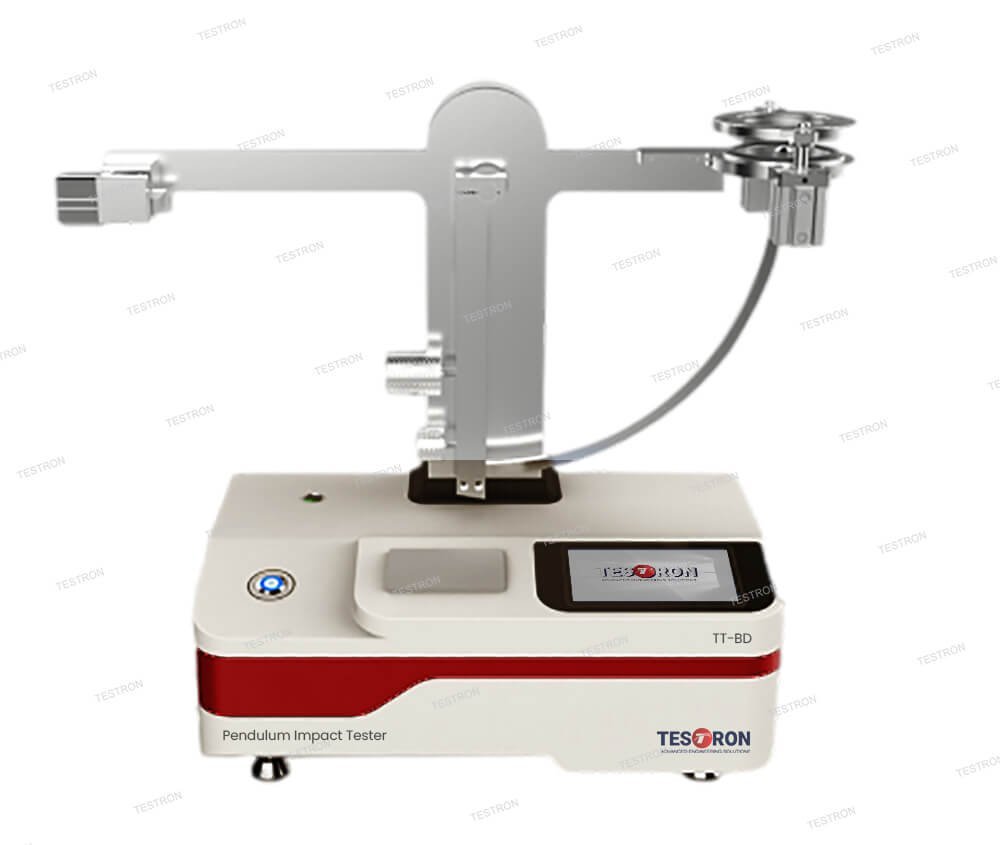

TT-BGL Pendulum Impact Tester

Pendulum impact tester is designed and manufactured according to GB8809, this machine is suitable for determining the pendulum impact resistance of the film materials, metallic foil, and so on. Through the impact head of semi globe shape, the instrument impacts and breaks through the sample with a certain ram speed so as to measure the consumptive energy of the impact head, and use the energy to estimate the energy value of pendulum impact resistance of the film sample. The machine can be used in scientific research, teaching, industrial and mining enterprises, laboratories, research institutes, and quality supervision departments.

Inquiry Now

Categories: Material Testing, Packaging Testing

Description

Pendulum Impact Tester Standards:

ASTM D3420, GB/T 8809

Pendulum Impact Tester Features:

LCD display test data.
Easy to operate, auto-process data.
Pneumatic clips.
Automatically clip and release the dart.
Built-in printer can print reports.
Can change impact head and clips.

Pendulum Impact Tester Specifications:

Item	Technical Parameters
Maximum impact energy	3J
Test precision	0.001J
Pendulum angle	90°
Pendulum swing radius	280mm
Size of the impact head	Φ12.7mm, Φ19mm, Φ25.4mm
Size of clips	Φ60mm, Φ90mm
Size of the test sample	100mm × 100mm
Instrument size	480mm × 330mm × 540mm
Weight	48 kg
Power supply	AC 220V，50Hz
Power	1000W

Pendulum Impact Tester Configuration List:

A, Spare parts
NO.	Name		Remark	Quantity
1	Power cable		3*0.75 10A 1.8M	1 PC
2	Sample clip		φ89 φ60	2 PCS
3	Impact head		φ19 φ25.4	2 PCS
4	Cross screwdriver		6-10mm	1 PC
5	Allen wrench		M3	1 PC
6	Wooden box			1PC
B, Optional parts
NO.	Name	Unit	Quantity	Remark
1	Metrology Certificates			Optional
2	Air compressor			Optional
C, User provide
1	Power supply 500W 220V 10A three holes socket ground wire
2	Air source (such as air compressor) specification 2.5HP、8KG pressure
3	High-pressure air pipe（Φ6mm plastic pipe)
4	Air filter (filter dust, filter oil, filter water)
