Ozone Resistance Test Chamber, Ozone aging Test Chamber, ozone test chambers

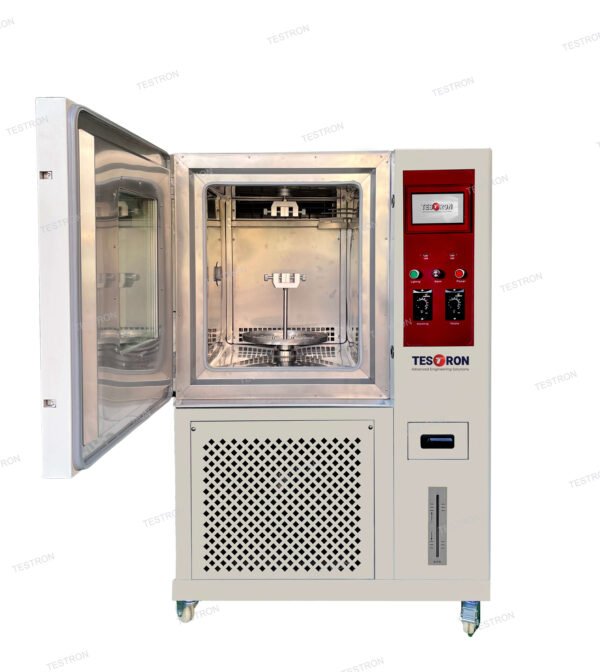

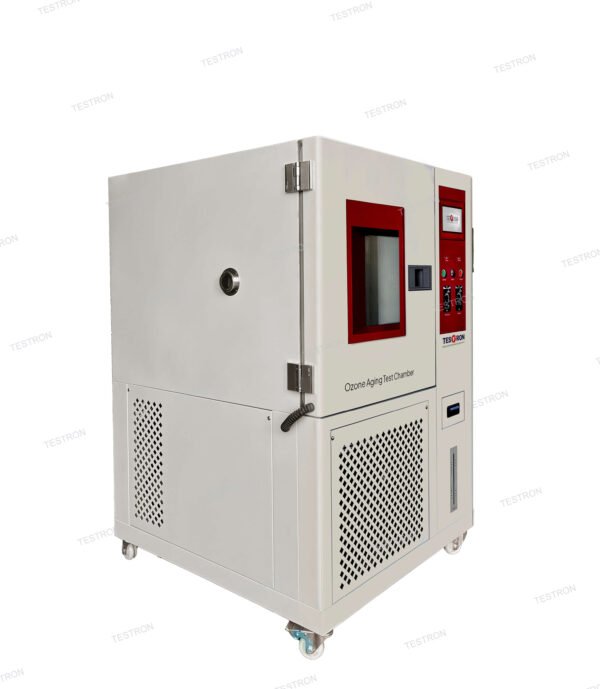

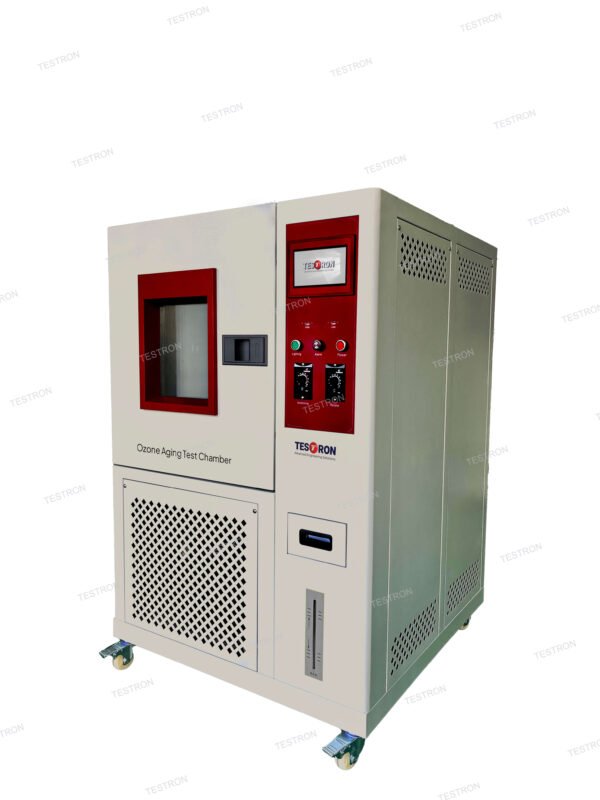

Ozone Resistance Test Chamber

Ozone resistance test chambers test elastomers (rubber) in the condition of ozone exposure, to simulate and measure rubber aging by means of ozone within a few days.
Structure: Built with dynamic and static sample holders, cooling system, humidity system, air circulation, ozone generating unit, ozone exhaust device, and control system.
Standard: ASTM D1149, IEX6006811-403, ISO1431, ASTM D1171.
Operate: All models are upgraded to a programmable controller and Ethernet access that provides simple operation and control.

Inquiry Now

Description

Ozone Resistance Test Chamber Features:

Automatic control and supply ozone gas
Temperature control and display unit
Humidity control and display unit
Programmable color LCD touch screen controller
USB and Ethernet
Static + dynamic combined sample holder
Ozone Generating Unit
Large viewing Window
Electromagnetic lock to prevent the door from opening under the working
Install 4 castors for ease moving, and with brakes function
CE mark, ISO17025 calibration

Ozone Resistance Test Chamber Models:

Model	Internal Dimension (mm)	Overall Dimension (mm)	Temperature Range (℃)	Ozone Concentration
OC-250	600600700	96011501860	0℃～100℃	1～1000 pphm
OC-500	700800900	118013502010	0℃～100℃	1～1000 pphm
OC-800	80010001000	128015502110	0℃～100℃	1～1000 pphm
OC-010	100010001000	150015502110	0℃～100℃	1～1000 pphm

Ozone Resistance Test Chamber Accessories:

Number	Name	Description
No.1	Ozone Sensor	Measurement Range: 1~50PPHM; Accuracy：1PPHM
No.2	Ozone generator	Ozone generator
No.3	Activated carbon for ozone chamber	Activated carbon for ozone chamber
No.4	Temperature heater	Temperature heater Description: Nichrome heater Power：2000W, and more
No.5	Humidity heater	Humidity heater Description: Nichrome heater Power
