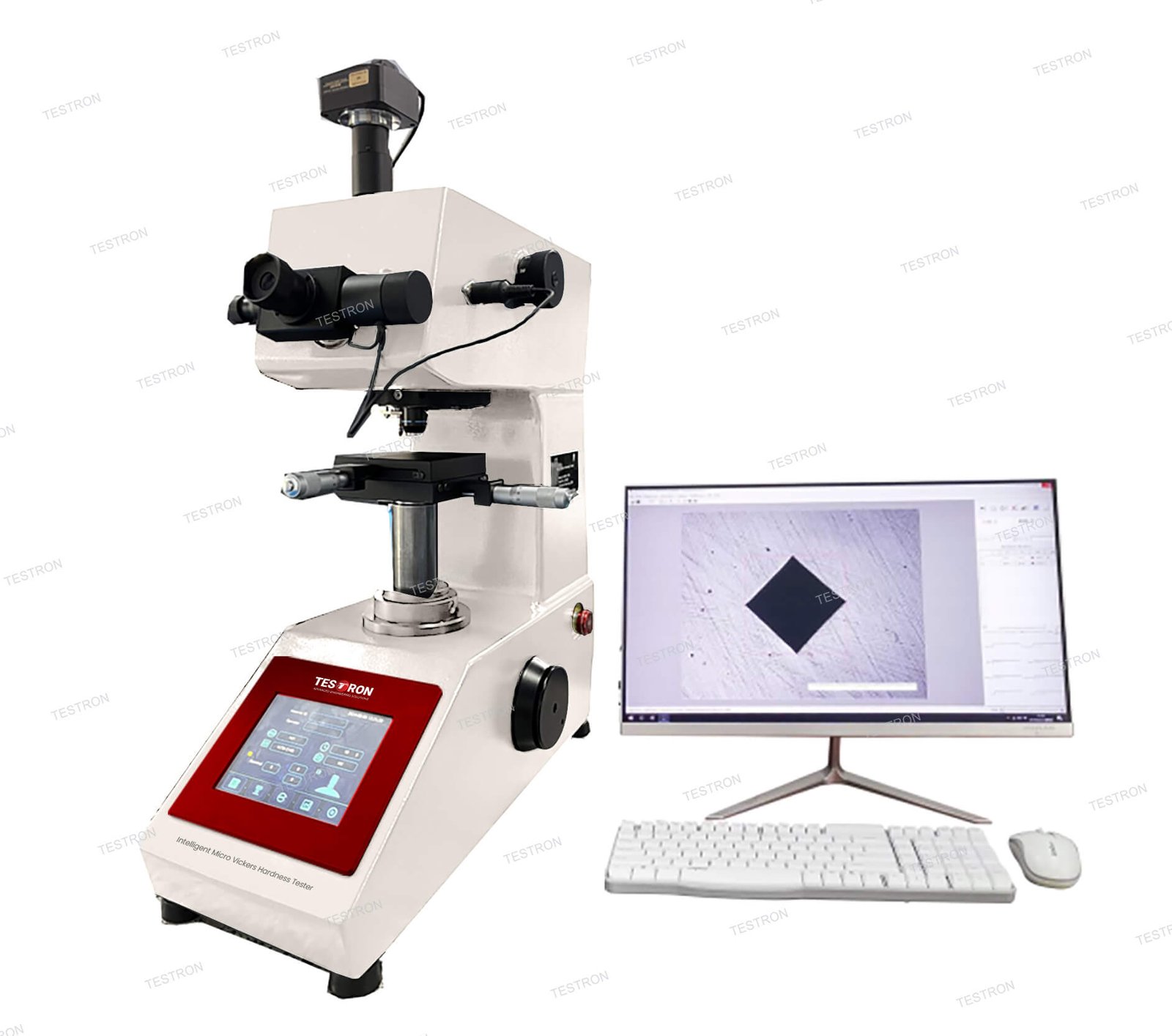

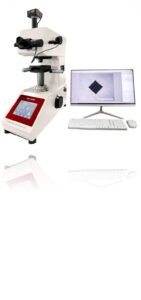

Test Standards of TT-VI1000A Intelligent Micro Vickers Hardness Tester
ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Application of TT-VI1000A Intelligent Micro Vickers Hardness Tester
It is suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Features of TT-VI1000A Intelligent Micro Vickers Hardness Tester
- With a novel and pleasing appearance, the internal structure is mainly made by stainless steel parts, has better It adopts a new type of automatic turret mechanism, equipped with both Micro Vickers and Knoop indenters.
- It can directly show the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time on the large screen.
- If you press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen.
- With the up and down limit alarm function, test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer.
- Equipped with CCD image automatic measuring system.
![]() | ![]() |
| Reading Microscope | XY Table |
Technical Specifications of TT-VI1000A Intelligent Micro Vickers Hardness Tester
| Model | TT-VI1000A | |
| Test Force | gf | 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
| N | 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N | |
| Test Range | 1HV~2967HV | |
| Hardness Resolution | 0.1HV | |
| Test Mode | HV/HK | |
| Loading Method | Automatic (Loading/Dwell/Unloading) | |
| Shifting between Objective and Indenter | Automatic Shifting (Two Indenters, Four Objectives) | |
| Conversion Scale | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW | |
| Data Output | Built-in Printer, RS232 Interface | |
| Hardness Reading | LCD Display, Data can be saved | |
| Eyepiece | 10× Digital Measuring Eyepiece | |
| Objective | 10× (Observe), 20× (Measure), 40 × (Measure), 40 × (Measure) | |
| Total Magnification | 100×, 200×, 400 ×, 400 × | |
| Effective Field of View | 20×: 400μm, 40 ×: 200μm | |
| Min. Measuring Unit | 20×: 0.03μm, 40 ×: 0.02μm | |
| Dwell Time | 0~95s | |
| Light Source | Halogen Lamp | |
| X-Y Test Table | Size: 100× 100mm; Travel: 25×25mm; Resolution: 0.01mm | |
| Max. Height of Specimen | 90mm | |
| Throat | 100mm | |
| Power Supply | AC220V, 50Hz | |
| Execute Standard | ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2 | |
| Dimension | 495× 305× 550mm, (Packing Dimension: 600× 360×800mm) | |
| Weight | Net Weight: 35kg, Gross Weight: 44kg | |
Standard Configuration of TT-VI1000A Intelligent Micro Vickers Hardness Tester
| Items | Qty |
| Instrument Main Body | 1 set |
| Diamond Micro Vickers Indenter | 1 pc |
| 10×, 20×, 40 ×, 40 × Objective | 4 pcs |
| Power Cable | 1 pc |
| Thin Specimen Test Table | 1 pc |
| Filament Clamping Test Table | 1 pc |
| Horizontal Regulating Screw | 4 pcs |
| Fuse 1A | 2 pcs |
| Inner Hexagon Spanner | 1 pc |
| Camera & Vickers measuring system | 1set |
| Hardness Block 700~800 HV1 | 1 pc |
| Anti-dust Cover | 1 pc |
| 10× Digital Measuring Eyepiece | 1 pc |
| Diamond Knoop Indenter | 1pc |
| Weights | 7 pcs |
| Cross Test Table | 1 pc |
| Flat Clamping Test Table | 1 pc |
| Level | 1 pc |
| Halogen Lamp 12V、 15~20W | 1 pc |
| Screwdriver | 1 pc |
| Computer (Optional) | 1 set |
| Hardness Block 400~500 HV0.2 | 1 pc |
| Hardness Block 700~800 HK1 | 1 pc |
| Operation Manual | 1 pc |
| Warranty Card | 1 pc |
