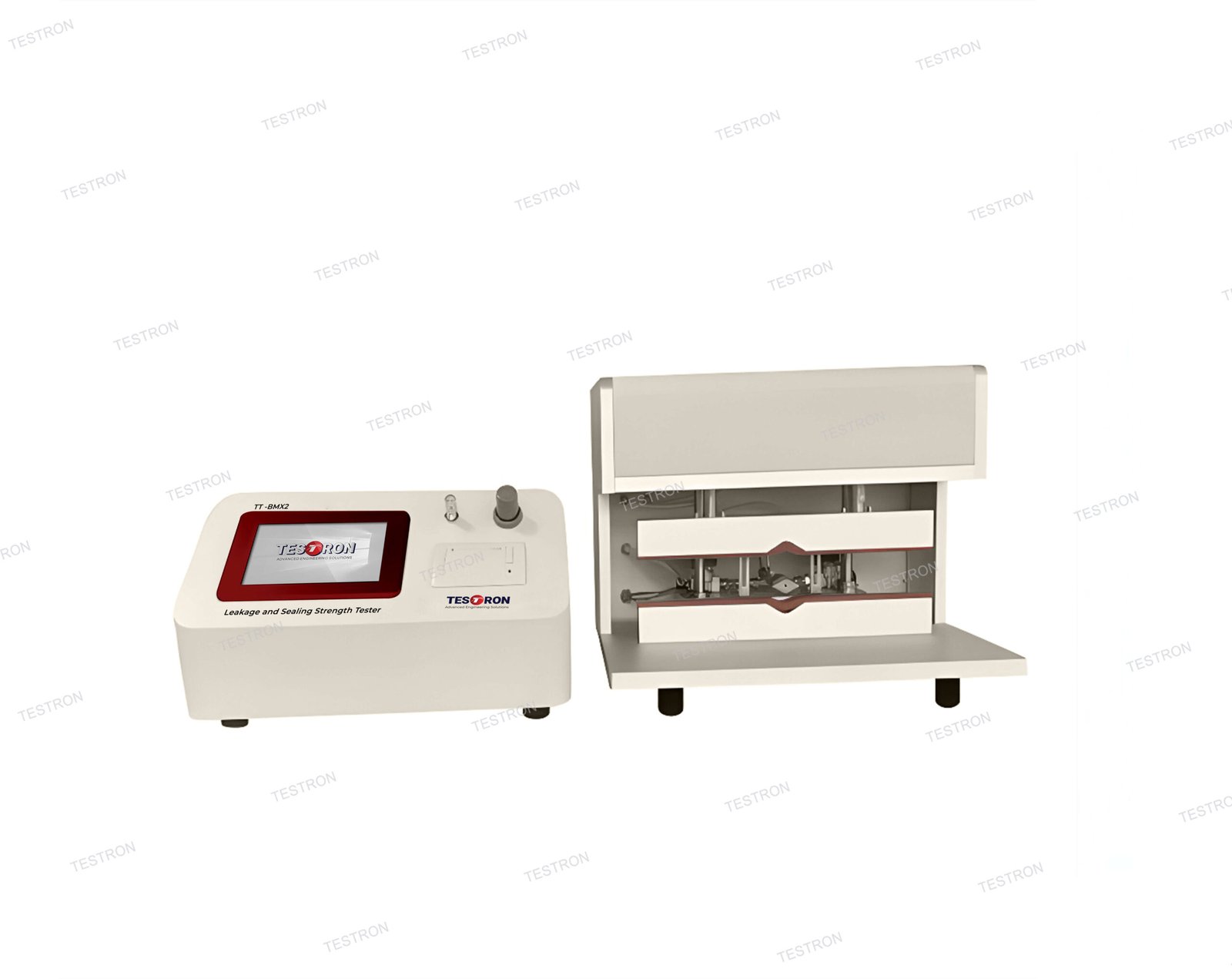

TT-BMX2 Leakage and Sealing Strength Tester

TESTRON TT-BMX2 Leakage and Sealing Strength Tester is a specialized instrument used to evaluate the airtightness, sealing integrity, and package strength of various packaging materials. It simulates real-world conditions such as pressure, vacuum, and sealing forces to ensure that the packaging provides effective protection against leaks, contamination, and external stress.

Application of TT-BMX2 Leakage and Sealing Strength Tester

To test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in food, beverage, pharmaceuticals, personal care and so on.

Test Standards of TT-BMX2 Leakage and Sealing Strength Tester

GB 10440, GB 18454, GB 19741, GB 17447, ASTM F1140, ASTM F2054, ISO 11607-1, ISO 11607-2, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002

Features of TT-BMX2 Leakage and Sealing Strength Tester

Pneumatic clips, good sealing of bag opening.
Wholly automatic, automatically inject air and keep for set time; auto measure and stop.
Can manually pause and stop.
LCD display test data.
Built-in printer can print report.
Simple calibration of pressure sensor.
Can customize clips for unusual bag.

Technical Specifications of TT-BMX2 Leakage and Sealing Strength Tester

Model	TT-BMX2
Test range of sealing strength	0~1Mpa
Test range of leakage	0~100Kpa
Accuracy	0.5%
Gas source	compressed air, 0.4~1Mpa
Range of sample’s sealing size	0~400mm
Gas source interface	Φ6mm gas tube
Main machine body size	450mm x 340mm x 230mm
Clips size	500mm × 250mm × 280mm
Weight	125kg
Power	100W
Power supply	AC 220V 50Hz
