Larger Sand and Dust Test Chambers

Larger Sand and Dust Test Chambers

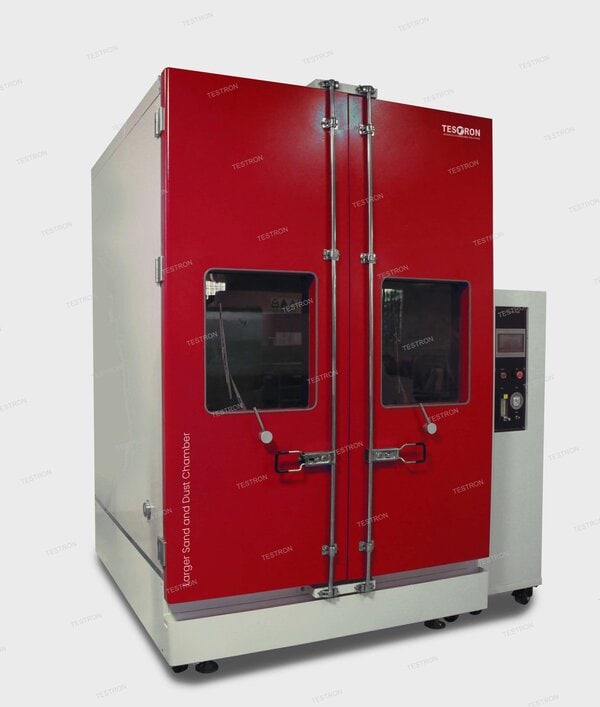

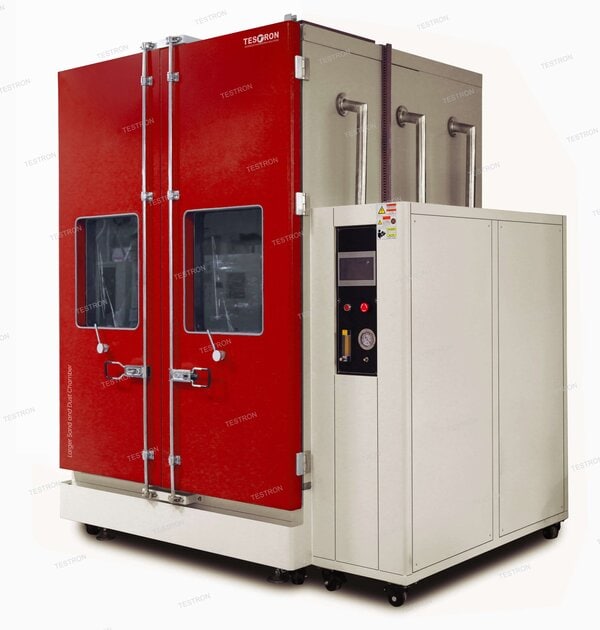

Larger series sand and dust test chambers allow for large and more quantity specimens, a capacity of 1500 liters and 2000 liters as standard and great for laboratories and large industrial products.

Sand and dust test chambers are made for the simulation of dust and sand conditions. These dust test chambers are used to test the exposure of automotive and electronic components under extreme environmental conditions in order to validate product seals. Dust ingress test methods included IEC60529, ISO20653, MIL-STD-810G, and many others.

The airflow circulates upward from the bottom, blowing the dust circulation, forcing dust around the specimens. All models are upgraded to programmable controller and Ethernet access that provides simple operation and control.

Categories: Dust and Rain Test Chamber, Environmental Chamber, Material Testing Tags: Climatic Test Chamber, Deals, Environmental Test Chamber, IP Test Chamber

Description

Sand and Dust Test Chambers Features:

The larger capacity of 1500 liters and 2000 liters
Standard and custom.
Suitable for large and more quantity products
Dust blowing through special wind tunnel and air outlet
Constant dust concentration
2 viewing windows with wipers
2 doors with a tight seal
Programmable color LCD touch screen controller
Multi-language interface
USB and Ethernet

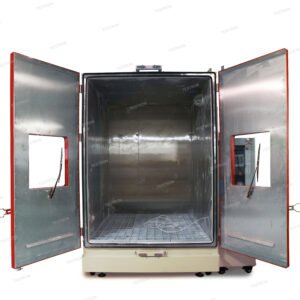

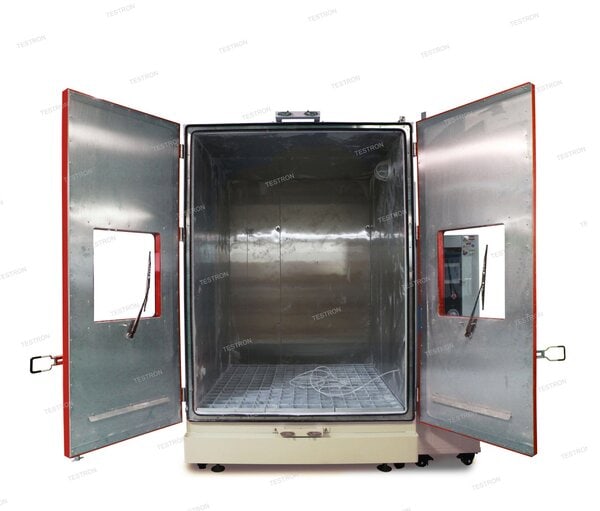

Strong stainless steel specimen shelves
Build -in power interface and vacuum system for specimens
Internal illumination in the test room
Reliable performance
Safety protection system
CE mark, ISO17025 calibration

Sand and Dust Test Chambers Models:

Model	Internal Dimensions(mm)	Overall Dimensions (mm)	Temperature Range	The Talcum Powder Amount
DI-1500	100015001000	125019001960	Ambient to +50℃	2 ~ 4kgs/m3
DI-2000	100020001000	130024001960	Ambient to +50℃	2 ~ 4kgs/m3

Sand and Dust Test Chambers Accessories:

Number	Name	Description
No.1	Talcum powder	Partical size:45μm
No.2	Temperature heater	Temperature heater Description: Nichrome heater Power：2000W, and more
