Standards
TAPPI T414, JIS P8116
Description

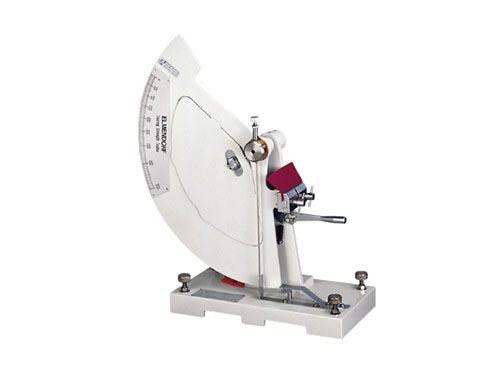

This tester can be classified by different test strengths; it can test the tear strength of paper, fiber, and PVC material. Grip the specimen and use a cutter to make a notch. The falling pendulum will use its swing force to tear the specimen and by changing the elevation energy of the pendulum as specimen tear strength. Meanwhile, the scale will indicate the tearing force. Tearing force is adjustable according to specimens’ strength.
Specifications
| Model | TT-C-337 |
| Specimen size | 63.5 × 100 mm |
| Capacity | 0～3200g / 0～6400g (Capacity changeable) with a counterweight |
| Dimension | 47 × 25 × 38 cm |
| Weight | 25㎏ |
