TT-300 Concrete Thickness Gauge Features
● Measure the thickness of concrete, rock, glass and other nonmetallic plates.
● Sound alarm, signal strength bar are used to improve measuring accuracy.
● Direct digital read out of the thickness value avoid the inaccuracy of manual comparison.
● Test data create and data logging
● RS232 and USB interface to PC.
● Real time analysis of the tested data.

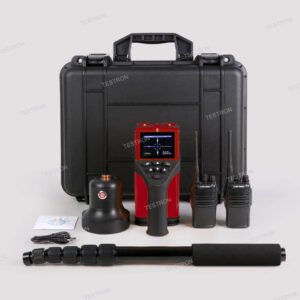

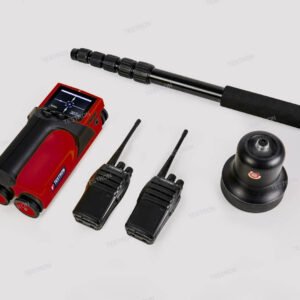

TT-300 Concrete Thickness Gauge Standard Delivery
| Standard Delivery | |||
| Main unit | 1 | Shoulder strap | 1 |
| Transmitting Transducer | 1 | AA battery (LR6) | 6 |
| Receiving Transducer | 1 | AAA battery (LR03) | 6 |
| Supporting bar | 5 | Key | 2 |
| Interphone | 2 | TIME certificate | 1 |
| Signal cable | 1 | Warranty card | 1 |
| Charger | 1 | Instruction manual | 1 |
TT-300 Concrete Thickness Gauge Technical Specifications
| Measuring range | 40-820mm |
| Accuracy | ±1mm[When thickness = (40-600mm)] |
| ±2mm[When thickness = (601-820mm)] | |
| Memory | 32000 test data and 4000 components |
| Power | AA batteries (LR6) x 6 |
| Display | Large graphic display |
| Operating temperature | -10℃~40℃ |
| Humidity | <90% |
| Dimension (mm) | 210x153x90 |
| Weight (g) | 880 |
