Application of TT-Q100B Automatic Metallographic Sample Cutting Machine
It is also used to evaluate heat treatment and surface coatings in high-stress components such as gears, engine parts, crankshafts, and valves. Precision sectioning is applied to turbine blades, airframe materials, alloys, and composites in aerospace analysis. Additionally, it is used for assessing boiler tubes, turbine shafts, and nuclear reactor materials, as well as examining internal grain structures in castings and forgings.
Features of TT-Q100B Automatic Metallographic Sample Cutting Machine

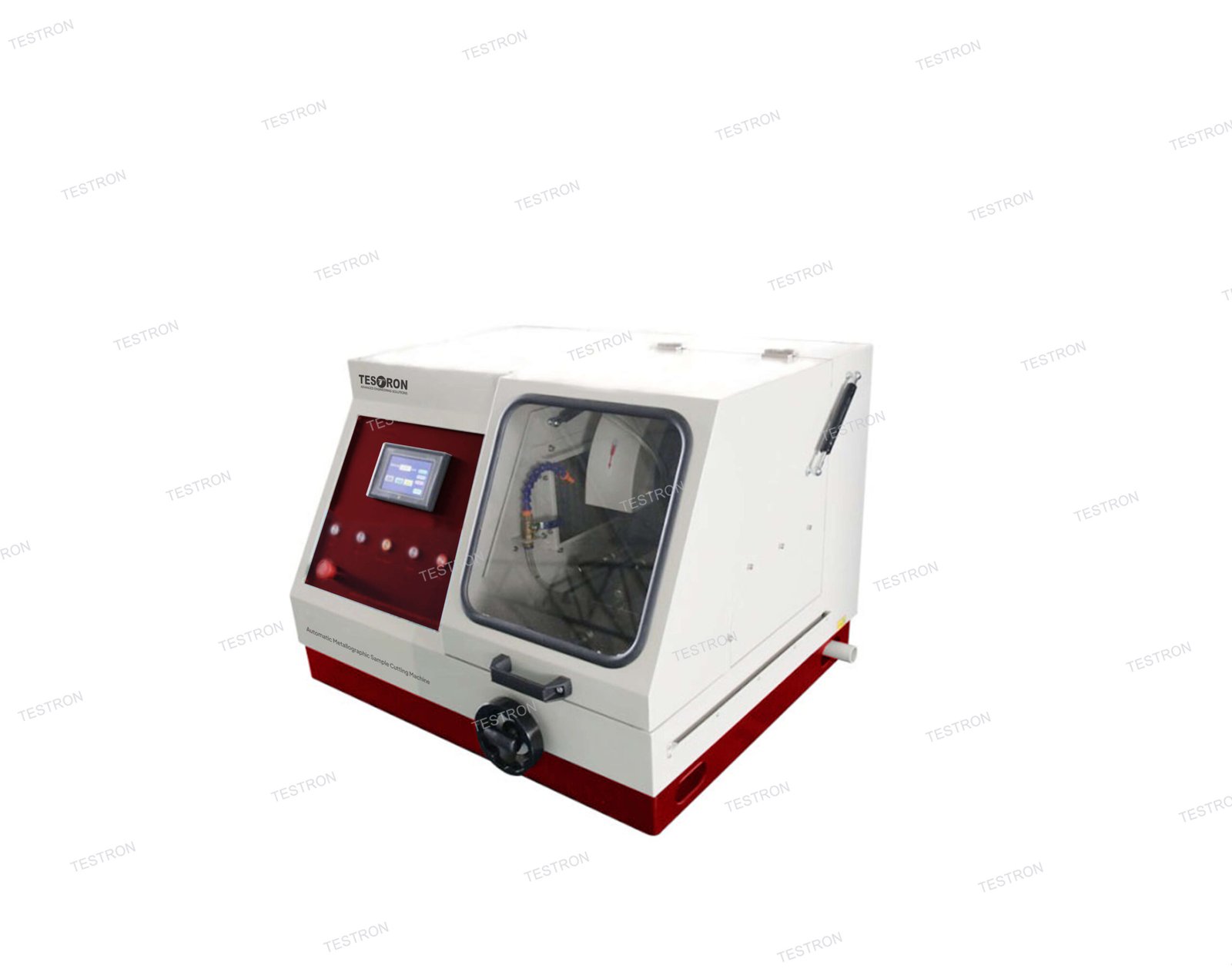

- It is composed of body, electric control box, cutting chamber, motor, cooling system, cutting wheel and other parts.
- Cutting machine can not only cut round workpieces with a diameter no more than 100mm (pipes), but also rectangular specimens with a height of 100mm and a depth of 200mm. The machine combines manual cutting and automatic cutting in one. The large cutting chamber is more convenient for cutting samples. It is ideal sample preparation equipment for universities, factories and labs. This product has two types: desktop type and floor type.
- Machine adopts screen display control system.
- Feed speed can be pre-adjusted before cutting, and the feed depth can be tracked in real time (LCD digital
- display). The Y-axis movement stroke of the worktable is 200mm. Pattern programming is more suitable for batch cutting. Automatic knife reset function. The machine adopts closed cutting structure, equipped with safety limit switches, and transparent plexiglass windows for observation during cutting.
- Cooling system prevents the sample from getting damaged by overheating during the cutting process.
- Double-sided fixture structure firmly fixes the specimen; the main components such as the fixture jaws and the work surface are made of stainless steel, with long service life and convenient maintenance.
Technical Specifications of TT-Q100B Automatic Metallographic Sample Cutting Machine
| Model | TT-Q100B | |
| Structure | Desktop; Floor (optional) | |
| Shell material | Steel | |
| Cutting diameter | 100mm | |
| Cutting table size | 290*300mm | |
| Cut-off wheel | 350*2.5*32mm | |
| Sample holder | The fixture table is divided into left and right, the cutting edge in the middle | |
| Cutting method | Manual/automatic | |
| Feed method | Manual/automatic | |
| Cutting speed | 0.1-3.0mm/s, automatic cutting mode, can select intermittent cutting (metal) and continuous cutting (non-metal) | |
| Cutting distance | 0-200mm | |
| Reset method | Automatic | |
| Cooling system | Automatic water cooling | |
| Spindle speed | 2200r/min | |
| Power | 3-phase 380V 50HZ 3KW | |
| Water tank | 50L; Dimension: 440*320*250 (mm) net weight: 21KG; gross weight: 27KG | |
| Weight | net weight: 210KG; gross weight: 250KG | |
| Dimension | 880*800*600 (mm) | |
Standard Configuration of TT-Q100B Automatic Metallographic Sample Cutting Machine
| Item | Qty |
| Cutting Machine | 1 |
| Cut-off Wheel | 1 |
| Water inlet pipe | 1 |
| Water outlet pipe | 1 |
| Water Tank (pump included) | 1 |
| Anti-rust lubricant | 1 |
| User Manual | 1 |
| Certificate | 1 |
Optional Accessory of TT-Q100B Automatic Metallographic Sample Cutting Machine
- Floor Net Weight: 246KG
- Floor Gross Weight: 288KG
- Dimensions: 880*800*1300(mm)
- Cutting Disk
- Diamonds, silicon carbide, etc.
- Special fixture
