Application of TT-M4 Coefficient of Friction Tester
Suitable for films, papers, textiles, non-woven fabrics, woven bags, aluminum foil, aluminum foil composite film, metal products, Printing products
Test Standards of TT-M4 Coefficient of Friction Tester
ASTM D1894-2014, ISO 8295-2004, TAPPI 816, GB/T 10006-1988
Features of TT-M4 Coefficient of Friction Tester
- Accurate and reliable data
High precision with Imported core components with easy and convenient to calibrate the force value sensor with the special standard block.
- Simple operation
With LCD display, the static friction coefficient and dynamic friction coefficient are displayed in real time.
Can run independently without computer, data processing automatically.
Easy operation, with controlling software, can connect to computer to display curves and print out the test report.
- Advanced technology
Full-auto operation, auto judgment and stop.
- Reliable and easy maintenance
Sensor over-range auto protection.
Function modularization, easy to maintain.
Technical Specifications of TT-M4 Coefficient of Friction Tester
| Model | TT-M4 |
| COF test range | 0.001~0.999 |
| Force range | 0~10 N |
| Measurement accuracy | ±2% FS |
| Slider size | 63.5 mm×63.5 mm |
| Slider mass | 200±2g |
| Workbench surface size | 200 mm×470 mm |
| LCD display | Test speed, dynamic friction coefficient and static friction coefficient |
| Stroke | 0~150 mm |
| Slider movement speed | 0~500 mm/min (Support stepless speed regulation) |
| Sample thickness | ≤2 mm |
| Power supply | AC 220 V, 50 Hz |
| Dimensions | 470×300×300mm |
| Weight | 13.6 kg |

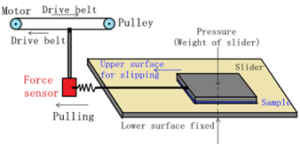

Working Principle of TT-M4 Coefficient of Friction Tester
The test procedure involves clamping the strip test sample and wrapping the slider with the material to be tested. The slider is then placed on the hanging hole of the force sensor. Under a specified contact pressure, the motor drives the conveyor belt to move the force sensor, causing the two test surfaces to move relative to each other. The force signal detected by the sensor is amplified by the integrator and transmitted to the recorder, where both the static friction coefficient and the kinetic friction coefficient are accurately measured and recorded.
Standard Configuration of TT-M4 Coefficient of Friction Tester
Spare Parts
| Name | Remark | Qty |
| Power cable | 3*0.75 10A 1.8M | 1 PC |
| Allen wrench | – | 1 PC |
| Cross screwdriver | 6-10mm | 1 PC |
| Wooden box | – | 1 PC |
| Slider | 200g | 1 PC |
| Weight | 200g | 1 PC |
Optional: Computer set
User Provide
- Power supply 500w 220V 10A 3 holes socket ground wire
- 1 set of computers (with nine-pin COM port) system/Windows7
