Optical Cable Flexing Testing Machine determines the ability of an optical fibre cable to withstand repeated flexing for elevator cable and similar application. The test confirms to IEC 60794-1-2-E8 standard
Designed with pulleys having a semicircular shaped groove for circular cables and a flat groove for flat cables. Restraining clamps are fixed so that the pull is always applied by the weight from which the carriage is moving away.

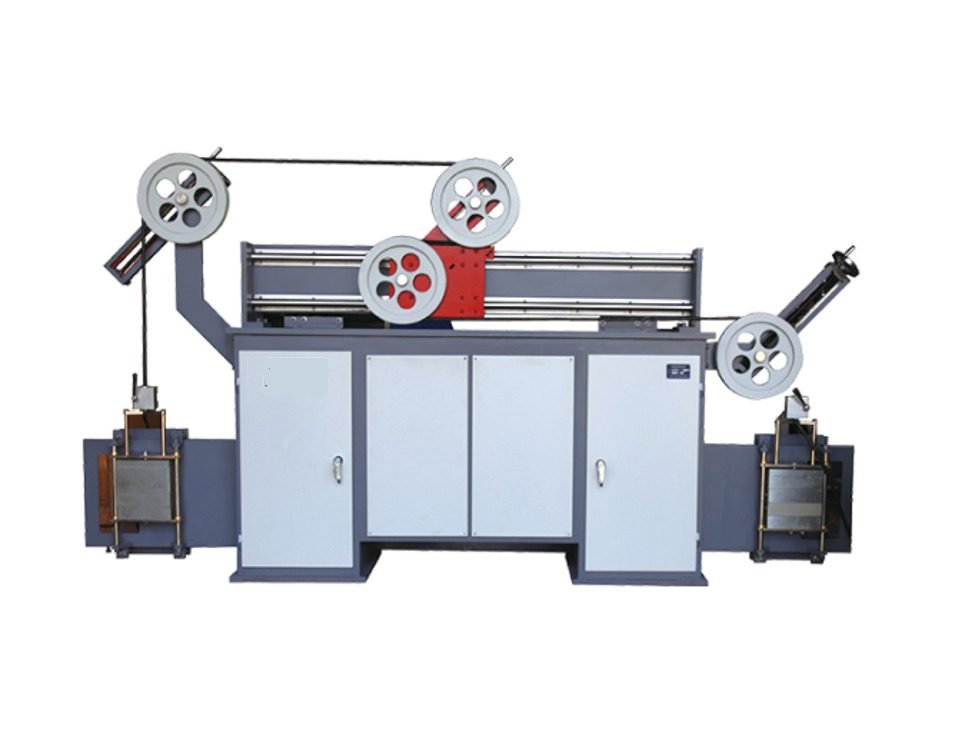

TT-QR1000 Series Optical Fiber Cable Flexing Testing Machine is intended to establish the ability of a fiber optic cable to withstand mechanical repeated flexing in service, e.g. elevator cable.
Comply with test standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4
Optical Fiber Cable Flexing Testing Machine Technical Parameters:
- Carriage stroke: 1000mm
- Maximum cycles: 9999
- Speed setting range: 250～350mm/s
- Power: 0.75kW
- Temperature: 10℃～40℃
- Humidity: Less than 80%
