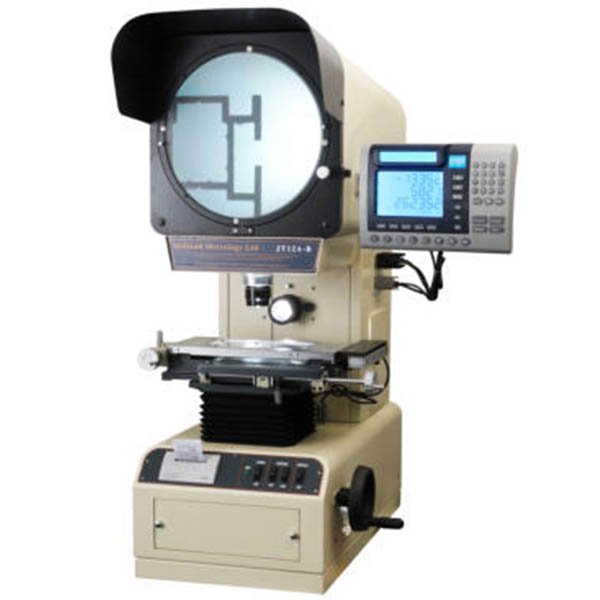

TT-T300-1550 Digital Profile Projector Description:
- Positive Image Optical System,
- The machine is of Welded Construction
- External Digital Readout
- The Digital Readout displays both X and Y Axes and the angular measurement
- Patent coating process used on the reflective mirror, better performance of the dust-proof.
- The two high-and-low adjustable light intensities for transmission lighting can be adaptable for different measuring requirements.
- Long-life halogen tungsten lamps
- With axial flow blower fans, the bilateral heat radiation can provide super-strong radiating power.
TT-T300-1550 Digital Profile Projector Specification:
| Product Name | Digital Vertical Profile Projector | |
| Model | Observe Image: TT-T300-1550 | |
| Screen Diameter | Φ300mm | |
| Rotating range | 0°～360° | |
| Angle Measurement Resolution | 1′ | |
| Rotation Accuracy | 6′ | |
| Size of Work Stage | 340×152 mm | |
| Stage Travel: X and Y-axis | 150x50mm | |
| Stage Travel : Z-axis | 90mm | |
| Accuracy | (3+L/75) µmL=length tobe measure in mm | |
| Resolution of X-Y Scale | 1 µm | |
| Load weight of worktable | 10kg | |
| Illumination | Profile | 12V 100WTungsten halogen lamp |
| Surface | 24V 150WTungsten halogen lamp | |
| Instrument Dimensions(mm) | L694×W380×H1058 | |
| Net Weight | 135kg | |
| Operating Environment | Room temperature :20℃±5℃Relative humidity :40%~70%RH | |
TT-T300-1550 Digital Profile Projector Objective:
| Magnification Power | 10× | 20× | 50× | 100× |
| Object Visual Field | φ30mm | φ15mm | φ6mm | φ3mm |
| Object Working Distance | 75.201mm | 69.599mm | 44.4 mm | 26.243 mm |
| Errors of magnifying power | 0.08% | 0.08% | 0.08% | 0.08% |
TT-T300-1550 Digital Profile Projector Standard Packing List:
| Packing List | Packing List | Packing List |
| Instrument Mainframe | 10X Objective with Transmitted Lens | Worktable 150×50mm |
| Digital Readout | 4 pcs Screen Clamp Devices | Built-in Mini-printer |
| Instrument Level | Anti-dust Cover | 5 pcs 5A/Ф5×20 Fuse |
| Tungsten Halogen Lamp 12V100W | Tungsten Halogen Lamp 24V150W | 5 pcs 3A/Ф5×20 Fuse |
| Digital Readout Operation Manual | Instrument Operation Manual | Product Certificate |
