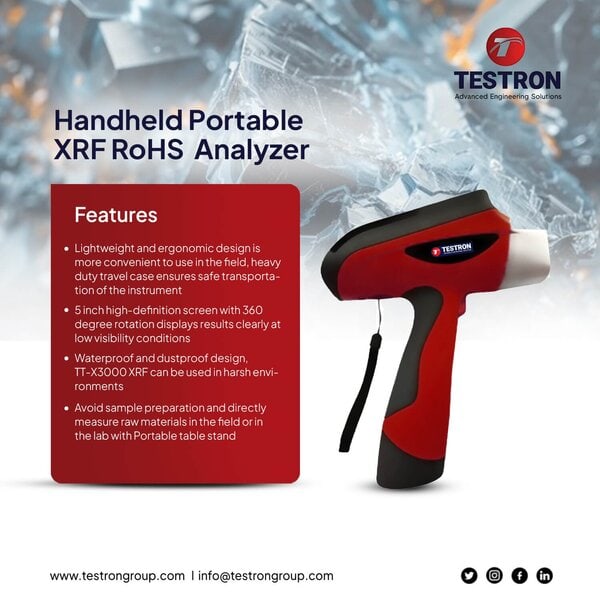

Handheld portable XRF RoHS analyzer adopts photoelectron, microelectronics and semiconductor technology to deliver results in less than 2 seconds. TT- X3000 handheld RoHS analyzer is the first to use large high-resolution LCD and the new digital signal processor. The minimum detection limits make its performance equal to Desktop XRF. Small and lightweight , TT- X3000 can analyze any sample large or small, in the lab or in the field.
Application in RoHS Industries:
- Electrical and electronic manufacturing
- Waste electrical and electronic recycling
- Machinery manufacturing and processing
- Toys production
- Packaging materials manufacturing
- Consumer goods inspection
TT- X3000 RoHS Analyzer Advantages:
Easy Operation

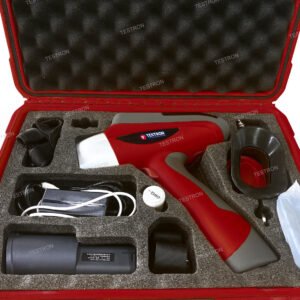

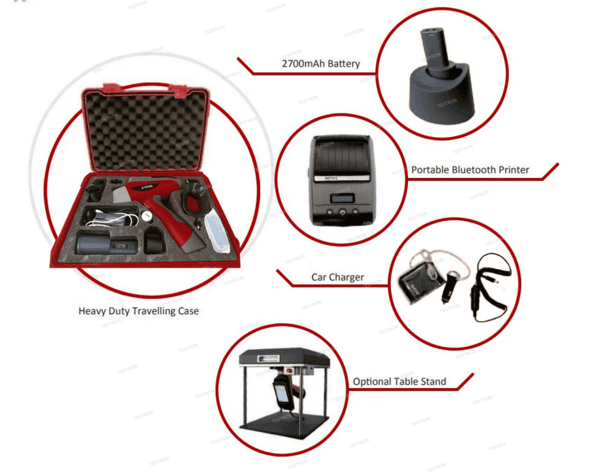

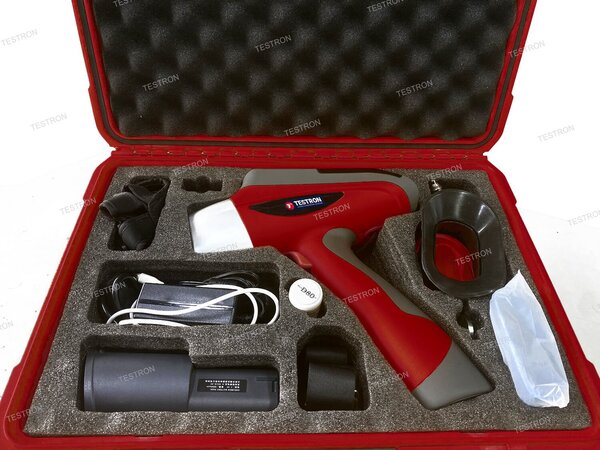

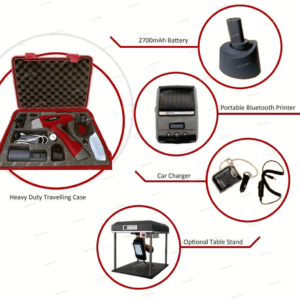

- Lightweight and ergonomic design is more convenient to use in the field, heavy duty travel case ensures safe transportation of the instrument
- 5 inch high-definition screen with 360 degree rotation displays results clearly at low visibility conditions
- Waterproof and dustproof design, TT- X3000 XRF can be used in harsh environments
- Avoid sample preparation and directly measure raw materials in the field or in the lab with Portable table stand
Best Performance
- Rapid nondestructive detection and quick measurement with results within two seconds. With performance similar to most benchtop XRF Models, Explorer XRF sets a new standard for handheld XRF analyzers
- Fast analysis of Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, Zr, Nb, Mo, Ru, Rh, Pd, Ag, In, Sn, Sb, Hf, Ta, W, Re, Pt, Au, Pb, Bi, Mg, Al, Si, P, S. Other elements can be easily added as per customers application
- Detect the light elements without helium gas
Extended Battery Life
- Rechargeable 9000mAh lithium battery with up to 12 hours work time on a single charge
- Optional 27000mAh lithium battery with up to 3 days work time on a single charge
Intelligent Software
- TT- X3000 XRF analyzer comes with our newest software which simplifies user training and operation. Unlike other Handheld XRF Spectrometers , Explorers easy-to-use interface allows anyone to operate the instrument
- The software features two user modes: Operator mode-simplifies operation with one step testing for quick day-to-day testing by inexperienced staff. Expert mode – for experienced users looking for in-depth analysis and advanced features
Technical Specifications:
| Analytical Method | Energy dispersive X-ray fluorescence |
| Built-In Computer | CPU: 1G, System memory: 1G, standard 4G mass storage data, extended stored maximum support up to 32G |
| Intelligent Analysis | No need to select test curve, intelligent matching software automatically selects best curve |
| Excitation Source | 50KV/200µA – Ag/Rh end window integrated miniature X-ray tube and high voltage power supply |
| Collimator & Filter | Collimator diameters are 2.0mm and 4.0mm, 6 kinds of filters with automatic switching functions |
| Detector | Silicon drift detector (SDD)Optional Fast-SDD detector is available, |
| Detector Resolution | Up to 125eV |
| Sample States | Solids, liquids, powders |
| Elemental Range | Atomic numbers between 12 (Mg) and 92 (U) |
| Detection Limit | The minimum detection limits – 5 ppm, depending on element |
| Detection Time | 1 – 60s; results will be displayed within 1 second, duration of test will increase accuracy of results |
| Simultaneous Analysis | Displays up to 40 elements at a time |
| Display Range | ppm – 99.99% |
| Display Screen | 5 inch transflective LCD touch screen, 1820×720 resolution |
| Video System | 500W pixel high-resolution camera |
| PDA | GPS, Wi-Fi, Bluetooth |
| Data Transmission | Digital multi-channel technology, SPI data transmission; waterproof mini-USB, can be connected to desktop computer to import results |
| Safety | Automatic shutdown of X-ray tube, Pb-lined instrument frame, rubber radiation shield, radiation levels within international safety standards |
| Warning Signals | Green light – Power on/standby Red light (flashing) – Operating/performing analysis Yellow light (flashing) – Trouble |
| Specialty | Analysis mode can be specialized by application |
| Power Supply | Rechargeable Li battery, standard 9000mAh, provides up to 12 hours operation on a single charge; 110/220V universal adapter for charging
|
| Temperature | -20ºC to +50ºC |
| Humidity | ≤90% |
| Dimensions | 244mm x 90mm x 330mm (L x W x H) |
| Weight | 1.7 kg |
