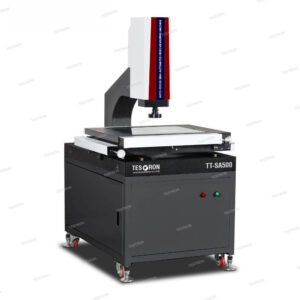

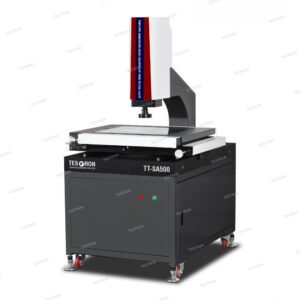

Features of TT-SA500 Auto-Focus Semi-Automated Video Measuring Machine
Smart Design
The mechanical design of the TT-SA500 is based on the principles of being light, compact, and smart, while maintaining rigidity and stability. Despite its small footprint, it offers the highest measuring range.
High accuracy transmission system
TT-SA500 uses a high-accuracy linear sideway, which is completely different from the cross-sideway found in other manual video measuring machines. This design ensures more stable and accurate transmission of the work stage, while also eliminating the potential
risk of a shortened travel range caused by the cross-sideway.
3D measuring function
Working with TESTRON professional 3D measuring software, the TT-SA500 VMM will provide offers strong 3D measuring function, which becomes powerful 2D/3D composite measuring device with extremely reasonable price.
Technical Specifications of TT-SA500 Auto-Focus Semi-Automated Video Measuring Machine
| Mode | TT-SA500 | |
| Dimension (mm) (x/y/z) | 1024/1251/1752 | |
| Measuring Range (mm) (x/y/z) | 500/400/200 | |
| Measuring Accuracy (µ/m) | 3+L/100 | |
| Repeatability ((µ/m) | 3µm | |
| Weight (Kg) | 552kg | |
| Image and measuring | CCD | 1.3M pixel digital camera |
| Lens | Manual dented zoom lens with magnification signal feedback 0.7-4.5X | |
| Magnification | 24.7-160x (For reference only. With different camera and lens the magnification will be different) | |
| Field of view | 8.5~1.3mm (For reference only. With different camera and lens combination, the value will be different) | |
| Working distance | 80mm | |
| Linear scale resolution | 0.5µm | |
| Driving System | X/Y axis manual control, Z axis CNC full closed loop motion control (including auto focus function) | |
| Illumination | Programmable LED 8-zone ring surface light, LED bottom parallel light (optional:8-zone ring light, coaxial light) | |
