To measure surface roughness, a sensor is placed directly onto the material’s surface and moved uniformly across it using an internal drive mechanism within the tester. As the sensor travels, a sharp built-in probe detects variations in the surface texture. These variations cause the probe to displace, altering the inductance in nearby coils and generating an analog signal that corresponds to the surface roughness. This signal is then processed by a phase-sensitive rectifier and analyzed by a dedicated digital signal processor (DSP), which calculates and displays the measurement results on an LCD screen.
TESTRON TT-RT Series offers 2 models.
- TT-RT-S4 (Functional type) – measures parameters Ra, Rq, Rz, Rt
- TT-RT-S16 (Basic type) – measures parameters Ra, Rz
Test Standards of TT-RT Series Surface Roughness Tester
GB/T6062, ISO 4287, DIN4768, JIS B, ANSI46.1

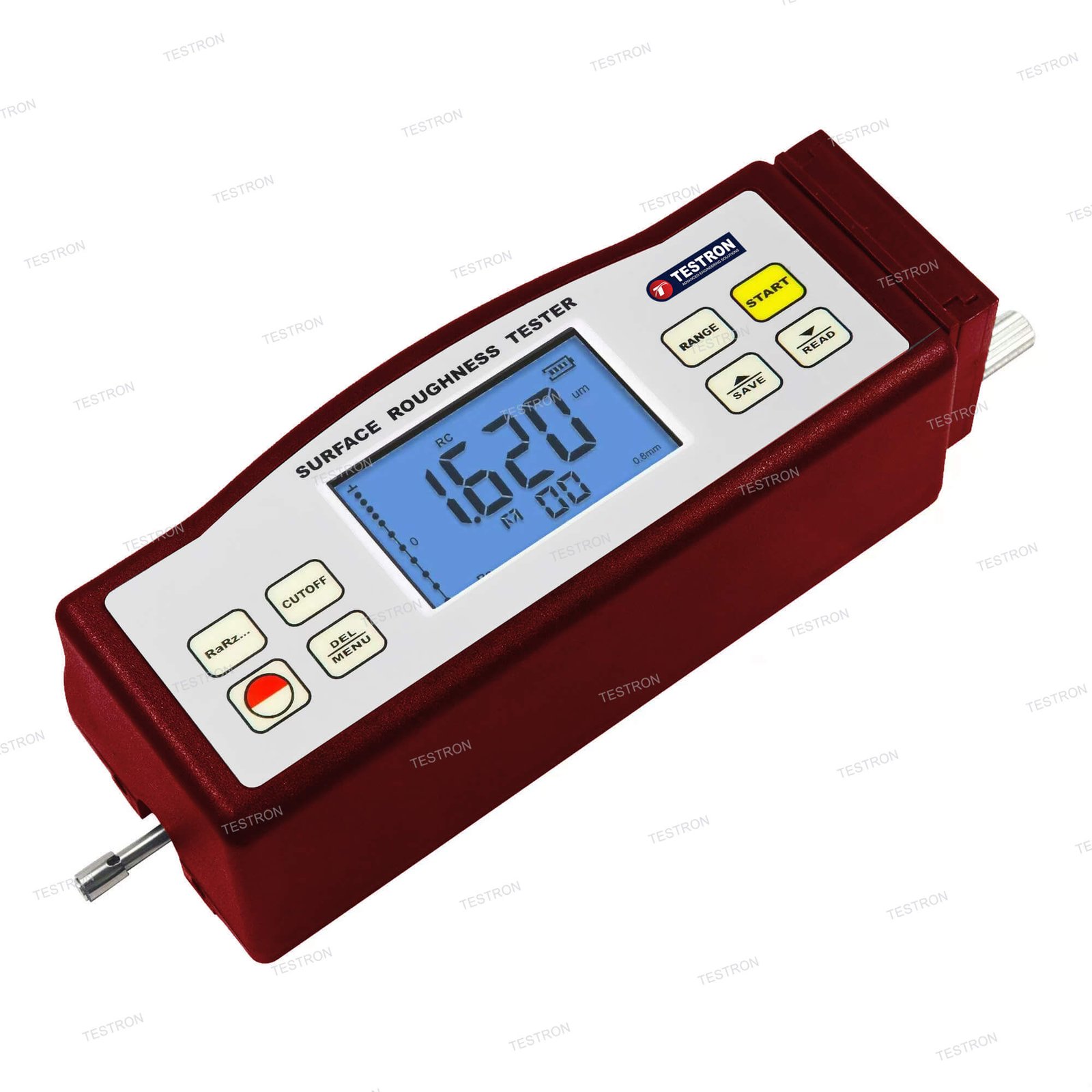

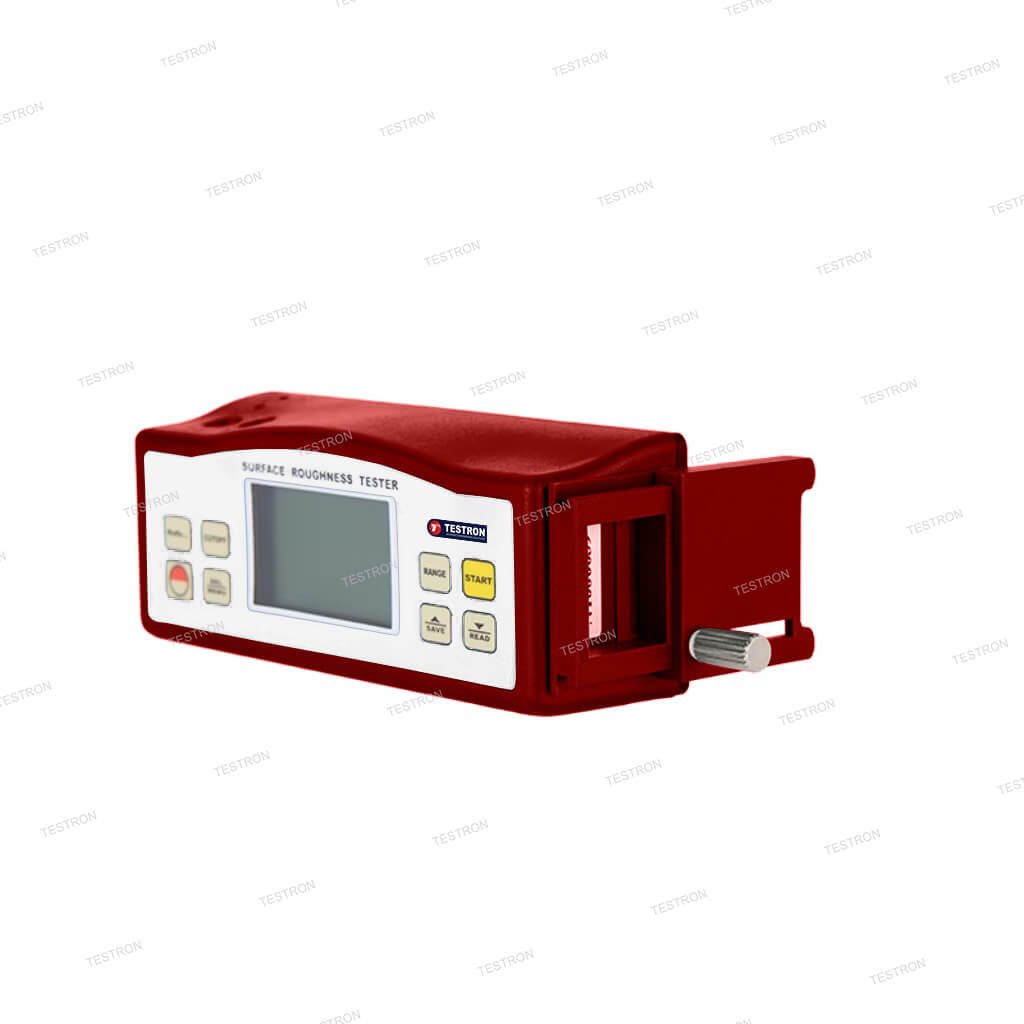

Features of TT-RT Series Surface Roughness Tester
- Handheld, lightweight and easy to use
- Highly sophisticated inductance sensor
- Built-in lithium ion rechargeable battery and control circuit with high capacity
- Manual or automatic power off. Metric /Imperial
- Use RS-232 data output to connect with PC
- Provide Bluetooth data output choice
Technical Specification of TT-RT Series Surface Roughness Tester
Model | TT-RT-S4 | TT-RT-S16 | |
Parameters | Ra, Rq, Rz, Rt | Ra, Rz | |
Measuring Range | Ra, Rq: 0.005~16.00μm
/ 0.020~629.9μinch
Rz, Rt: 0.020~160.0μm / 0.078~6299μinch |
Ra: 0.05~10.00μm
/ 1.000~400.0μinch
Rz: 0.020~100.0μm / 0.780~4000μinch |
|
Accuracy | ≤±10% | ||
Fluctuation of Display Value | ≤6% | ||
Resolution | 0.001 / 0.01 / 0.1 | ||
Sensor | Radius of Probe Pin | 5μm | 10μm |
Material of Probe Pin | Diamond | ||
Measurement Force of Probe | 4mN (0.4gf) | 16mN (1.6gf) | |
Probe Angle | 90° | ||
Vertical Radius of Guiding Head | 48mm | ||
Maximum Driving Stroke | 17.5mm / 0.7inch | ||
Cutoff length (l) | 0.25mm, 0.8mm, 2.5mm | ||
Driving
Speed |
Sampling | When Length = 0.25 mm, Vt = 0.135 mm/s | |
When Length = 0.8 mm, Vt = 0.5 mm/s | |||
When Length = 2.5 mm, Vt = 1 mm/s | |||
Returning | Vt = 1mm/s | ||
Profile Digital Filter | RC, PC-RC, GAUSS, D-P | ||
Evaluation Length | 1~5 L Optional | ||
Data Memorize | 7 Groups | – | |
Operating Conditions | Temp.: 0~50℃ | Humidity: <80%RH | |
Power Supply | Built-in Rechargeable Li-ion Battery | ||
Dimensions | 140x52x48 mm | ||
Weight | 420g |
Probes of TT-RT Series Surface Roughness Tester
Item | Application | Structure Diagram |
Standard Sensor | Used for roughness tests on plane surface, shafts and in bores from 5.5 mm diameter. Maximum bore depth 22mm | ![]() |
Groove Stylus | Used to measure the surface roughness of deep groove, greater than 5 mm in width, less than 9.5 mm in depth; or the pedestal seat less than 9.5 mm in height. | ![]() |
Curvature Probe | Used to measure surface roughness of curved workpiece larger than 3 mm in curvature radius | ![]() |

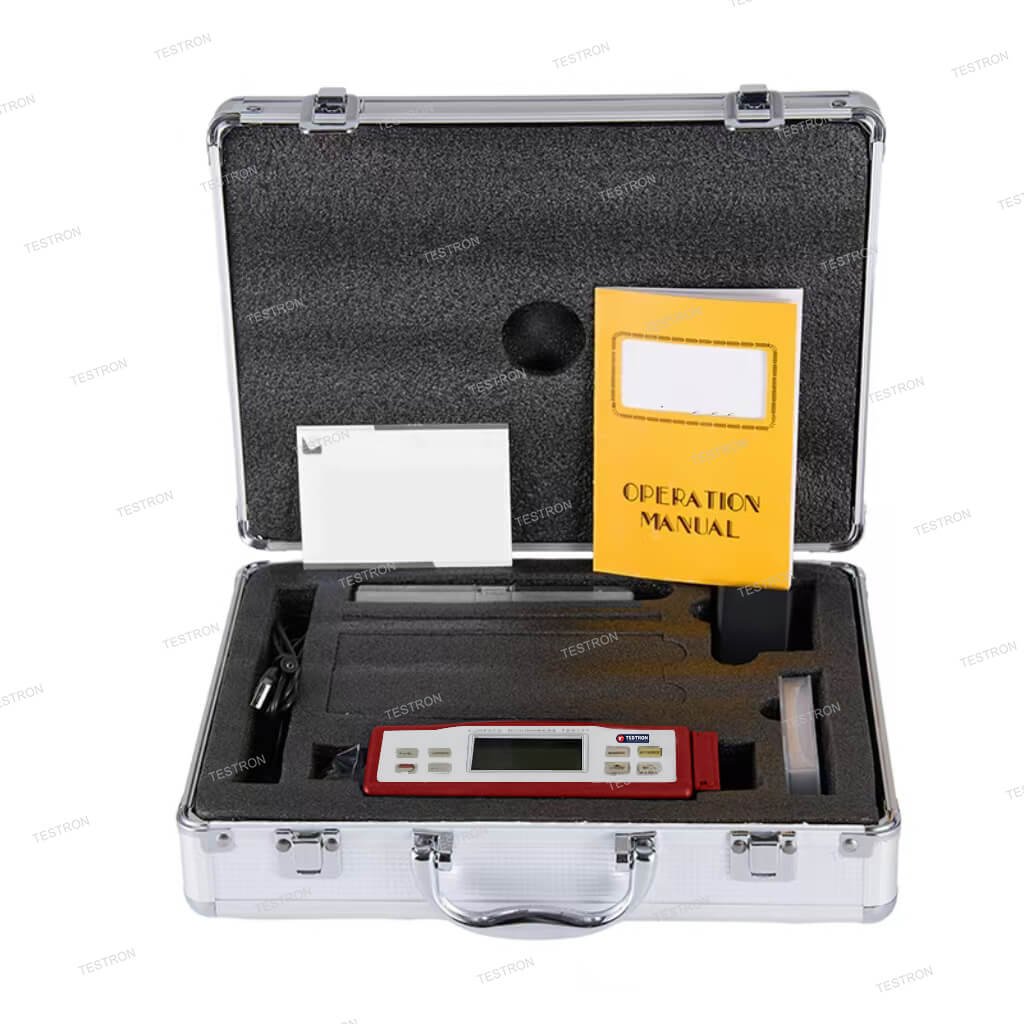

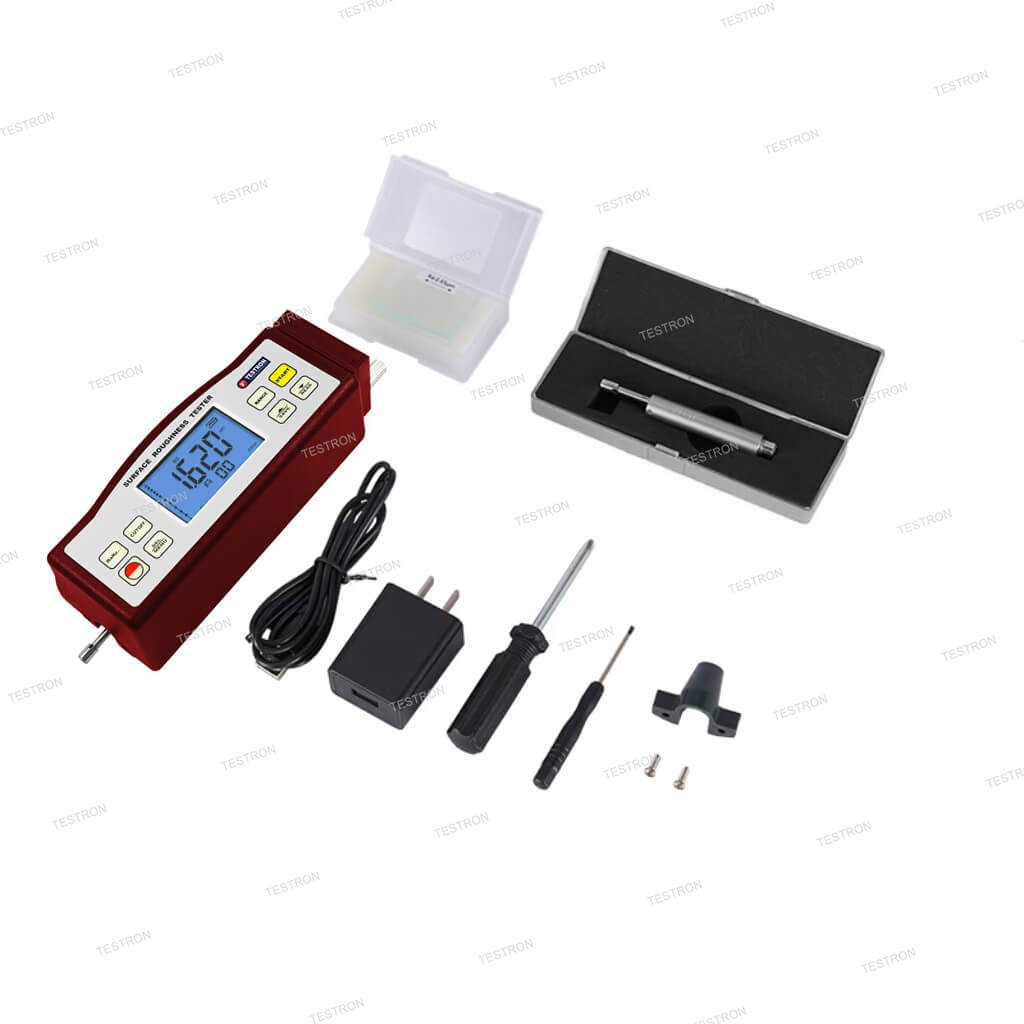

Standard Configuration of TT-RT Series Surface Roughness Tester
Item | Qty |
Main unit | 1 |
Standard sensor | 1 |
Small screwdriver | 1 |
Carrying case | 1 |
Operation manual | 1 |
Quality certificate | 1 |
Warranty card | 1 |
Optional Accessories of TT-RT Series Surface Roughness Tester
Item | Qty |
Extension rod | 1 |
Groove stylus | 1 |
Curvature probe | 1 |
Measurement stand | 1 |
RS-232C Cable with software | 1 |
Bluetooth Adapter with software | 1 |
