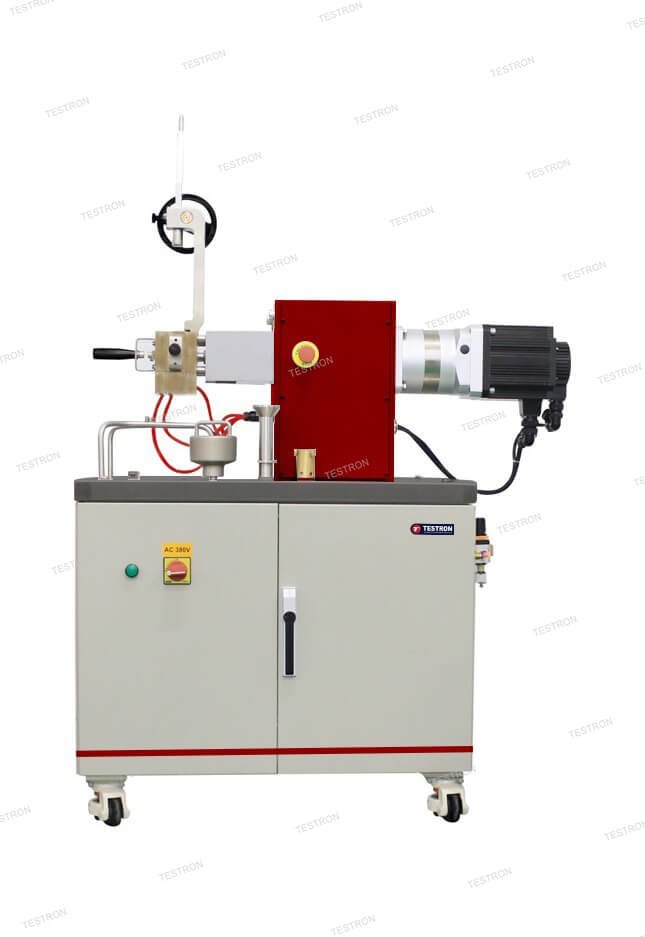

Application of TT-RHEO200 Torque Rheometer
For Polymer material formulation design, raw material performance and quality inspection, PVC melting characteristics test for PVC, test for plasticizer absorption performance of PVC, dry mix PVC, thermal and shear stability testing of thermoplastic materials, studying flow and solidification behavior of cross-linking polymers and formulation design of inorganic powder sintering molding materials such as metal and ceramics
Mainly used for Plastics and Rubber etc.
Features of TT-RHEO200 Torque Rheometer
- Adopts a non-contact dynamic torque sensor that makes the data testing accuracy high and repeatability good.
- With a building block structure design, flexible disassembly and assembly of mixing chamber and rotor and easy to clean materials.
- Made of high-performance corrosion-resistant and wear-resistant materials of mixing chamber and rotor.
- Equipped with high performance servo motor, wide speed range, and speed stability
- With its self-developed specialized software, the equipment has a powerful functions and good human-computer interaction
- High precision in torque and temperature measurement, sensitive to subtle differences in formula
- Refined structural design for more convenient operation
Technical Specifications of TT-RHEO200 Torque Rheometer
Model | TT-RHEO200 |
| Mixing chamber and volume | 55ml |
| Rotating speed | 185 rpm |
| Rotating speed ratio | 3:2 |
| Rotor | Roller (Optional: Banbury, Cam, Sigma, Delte) |
| Torque measurement range | 0-200Nm |
| Torque measurement range accuracy | 0.5%F.S |
| Heating/cooling method | Electic Heating / Compressed air cooling |
| Operating temperature | 350ºC room temperature |
| Temperature control and accuracy | ±1ºC |
| Main motor power | 4.5kW |
| Power | Three-phase 380VAC±10%, single-phase 220VAC±10%,50Hz |
| Rated power | Approx. 4.5KW |
| Dimensions | 1173mm×610mm×1578mm |
| Weight | Approx.250kg |
Rotor reference
- Roller: For mixed thermoplastic materials, such as polyolefin, polyvinyl chloride, engineering plastics, etc.
- Banbury: For mixing elastomers, which can also be used to mix powders into thermoplastic materials. More common applications in the rubber industry
- Sigma: Thermoplastics, less axial distribution, ceramic composites, food (viscous, high torque)
- Cam: Food applications and plastic aerosols (with torque limitations)

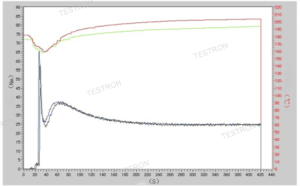

Test report on Torque Rheometer Curve Superposition
- Roller: For mixed thermoplastic materials, such as polyolefin, polyvinyl chloride, engineering plastics, etc.
- Banbury: For mixing elastomers, which can also be used to mix powders into thermoplastic materials. More common applications in the rubber industry
- Sigma: Thermoplastics, less axial distribution, ceramic composites, food (viscous, high torque)
- Cam: Food applications and plastic aerosols (with torque limitations)
Product Structure of TT-RHEO200 Torque Rheometer
- Rack Assembly: Integrated frame, light and beautiful, stand wear and tear; 304 stainless steel tabletop, practical and beautiful. Integrated load-bearing suspension casters
- Drive assembly: Main motor: 3kw servo motor, special servo drive
Reducer: special servo motor reducer, self-lubricating system
- Torque sensor: German ETH (Non-contact, diswear & maintenance-free)
- Transmission assembly: High-strength integrated molding gearbox. High-precision gear.
- Mixing chamber assembly: High strength, corrosion-resistant mixing plate, mixing rotor of mixing chamber assembly
Heating/cooling method: heating rod heating/compressed air cooling
Rotor:
- Roller(default)
- Banbury(optional)
- Cam (optional)
- Sigma (optional)
- Feed assembly: 304 stainless steel rotary hopper, easy to operate. Pressing rod, with standard hammer
- Protective device for safety: Equipped with E-STOP button and two JOG buttons for safe operation
- Control System: Brand Business Computer. Configuration based on self-developed control program and measurement and control software. The computer programmable controller is composed of an upper control system which has special functions that traditional control systems cannot achieve, such as temperature and speed adaptive control and graphic and textual display of process parameters. This greatly improves the user-friendly system, intelligence, and safety.
- Melt measurement system: Temperature measurement: 0-400℃
- Electric cabinet: Electrical cabinet with integrated rack, aluminum alloy electrical installation board. Low-voltage electrical appliances, special electrical cabinet fans and ventilation filters.
- Electric safety: Electric grounding with grounding marking. With automatic fault shutdown and manual emergency stop switch
Standard Configuration of TT-RHEO200 Torque Rheometer
Standard tools, accessories, and spare parts.
Items | Qty | Remarks |
| Toolbox | 1 piece | accessory |
| Inner hexagon spanner | 1 set | tool |
| Small slotted screwdriver | 1 set | tool |
| Small cross screwdriver | 1 set | tool |
| Small slotted screwdriver | 1 set | tool |
| Big cross screwdriver | 1 set | Tool |
| Wrench | 1 set | tool |
| Copper brush | 1 set | tool |
