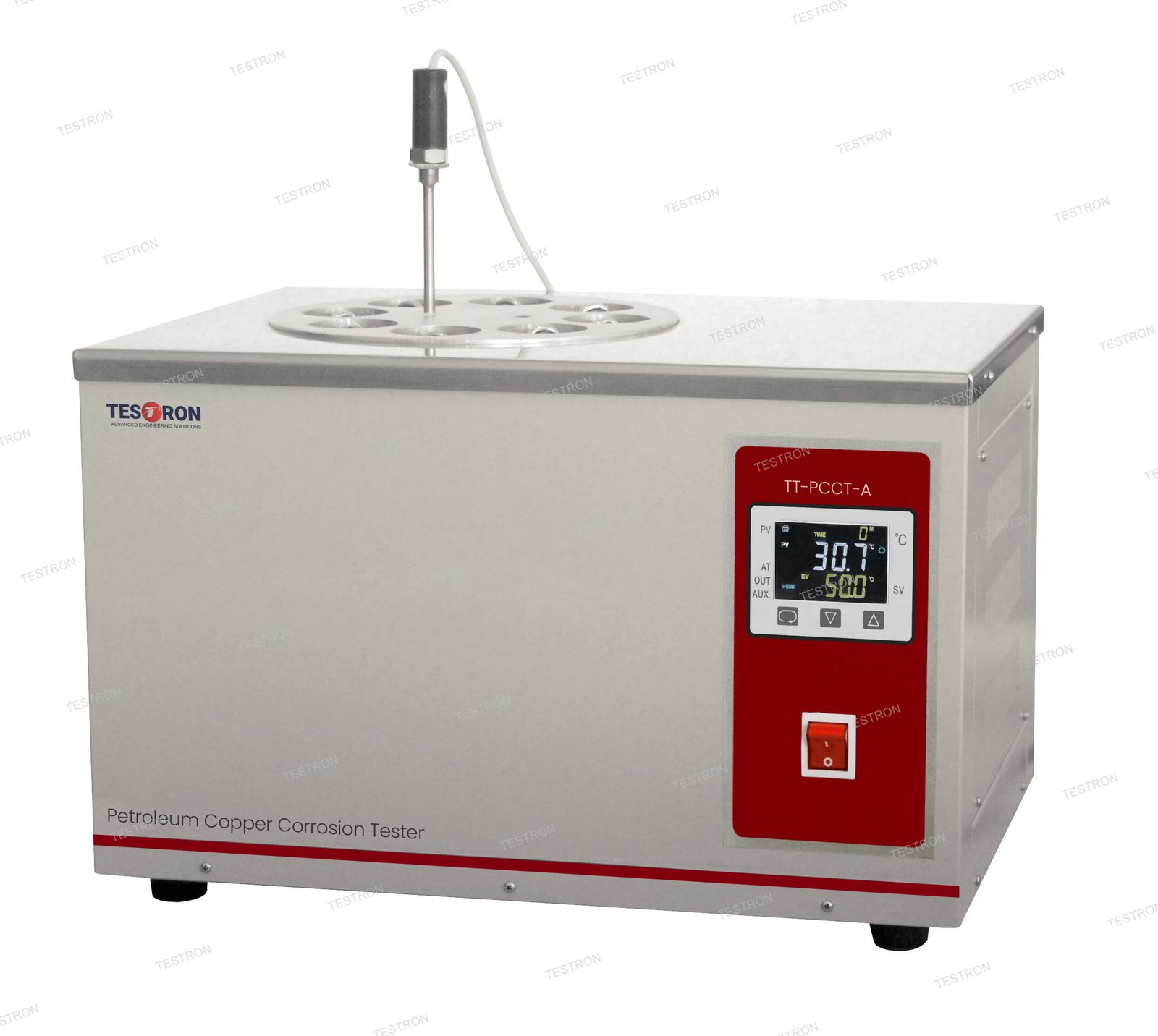

Test Standard of TT-PCCT-A Petroleum Copper Corrosion Tester
ASTM D130
Application of TT-PCCT-A Petroleum Copper Corrosion Tester
It is widely used in petroleum refineries and fuel quality control processes to determine the corrosiveness of petroleum products and related materials such as fuels, lubricants, and solvents when in contact with copper.
Features of TT-PCCT-A Petroleum Copper Corrosion Tester
- Metal Bath Design
Utilizes a durable metal bath instead of an oil or water bath, providing excellent thermal stability and uniform heat distribution. This design is particularly well-suited for high-altitude regions, where traditional baths may suffer from boiling point fluctuations and reduced heating efficiency.
- Flexible Sample Configuration
Equipped with 8 individual test holes, allowing users to conduct multiple tests simultaneously. The configuration supports interchangeable combinations of test shells and test tubes, accommodating various sample types and test requirements, which enhances versatility and productivity in the lab.
- Advanced Temperature Control
Incorporates a high-precision temperature regulation system featuring PID (Proportional-Integral-Derivative) auto-tuning. This ensures consistent and accurate temperature maintenance throughout the testing process, reducing the risk of thermal deviation and improving repeatability.
- Efficient Dual Heating System
Features both a constant temperature heater and an auxiliary heater, working in tandem to deliver faster ramp-up times and improved energy efficiency. This dual heating approach enables the system to reach and stabilize at target temperatures more quickly, enhancing overall testing throughput.
Technical Specification of TT-PCCT-A Petroleum Copper Corrosion Tester
Model | TT-PCCT-A Petroleum Copper Corrosion Tester |
Temperature control range | Room temperature ~150℃ |
Temperature control Accuracy | ±0.5℃ |
Test Holes | 8 |
Dimensions | 310X430X260mm |
