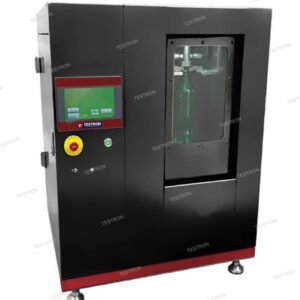

Characteristics of TT-PBT20 PET Bottle Burst Tester
- 3 international test methods available
- Servo system precisely to control the linearized pressurization, the predetermined pressure point, the pressurizing rate and the filling volume
- Automatic clamping, filling and testing system, all in one button after setting
- Display curves of pressure, volume expansion and water temperature during the test
- Large-sized color touch screen editing and management of information of operators and products
- With calibration function, convenient for regular calibration
- With pressure calibration function and calibration pack
- With water filtration system
- RS232 serial output
- Water recycling system (optional)
Technical Specification of TT-PBT20 PET Bottle Burst Tester
| Measuring range | 0-20 bar |
| Resolution | 0.1 bar |
| Pressure unit | bar |
| Capacity unit | ml |
| Pressure required | nitrogen (user-supplied) |
| Water input | 0.1-0.3 MPa tap water |
| Temperature range | 0-50º C |
| Power supply | 220/240VAC, 50/60 Hz |
| Maximum expansion capacity | 4L |
| Sample range | Up to 3 L bottle (bigger sizes upon request) |
| Data output | RS232 |
| Dimensions | 820(W)×710(D)×910(H)mm |
| Weight | 120kg |
