Application of TT-MM7800 Moisture Meter Series
Applicable of wood fiber materials, wooden articles, tobacco, cotton paper, building, soil and other fibre materials
Features of TT-MM7800 Moisture Meter Series
- Dual Measurement Methods for Enhanced Flexibility
Combines both search-type (non-invasive) and pin-type moisture measurement methods, allowing users to select the most suitable technique based on the material, application, and required accuracy. - Non-Invasive Search-Type Moisture Detection
The search-type moisture meter utilizes advanced electromagnetic sensing technology to measure moisture content beneath the material surface without causing any damage, making it ideal for finished products and sensitive materials. - Conductivity-Based Pin-Type Measurement
The pin-type moisture meter determines moisture levels by measuring the electrical conductivity between two probe pins inserted into the sample, providing accurate spot measurements and deeper moisture analysis. - Dual Indication System
Features both a high-visibility digital display and a color-coded LED indicator, enabling users to quickly assess moisture conditions through precise numerical readings and intuitive visual status indicators. - Large Data Storage Capacity for TT-MM7828
Equipped with built-in memory capable of storing up to 240 measurement groups, allowing users to record, review, and compare test results efficiently without manual data logging. - Statistical Analysis Functions
Includes statistical processing capabilities such as data review, averaging, and trend evaluation, helping users monitor moisture variations and improve quality control processes. - PC Connectivity via RS-232 Interface
Supports RS-232 data output for seamless connection to a computer, enabling data transfer, storage, analysis, and report generation through compatible software. - Optional Bluetooth Wireless Communication
Available with Bluetooth data transmission functionality for convenient wireless transfer of measurement data to computers and other compatible devices, improving operational efficiency and mobility. - User-Friendly Operation
Designed with an intuitive interface and ergonomic controls, ensuring easy operation for both laboratory and field applications. - Suitable for Multiple Material Types
Ideal for moisture testing of wood, paper, textiles, building materials, packaging materials, and various industrial products where reliable moisture monitoring is required.
Technical Specifications of TT-MM7800 Moisture Meter Series

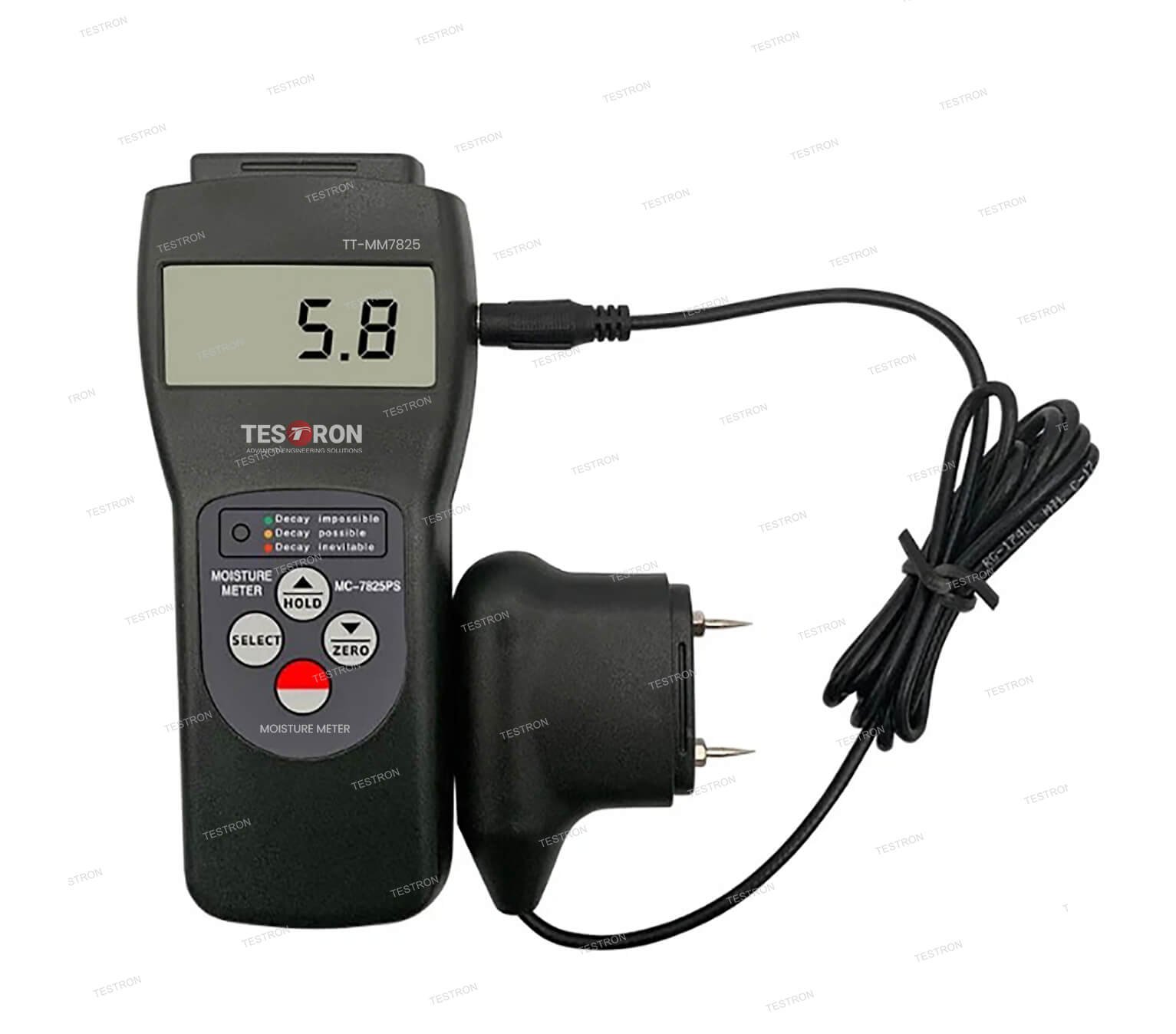

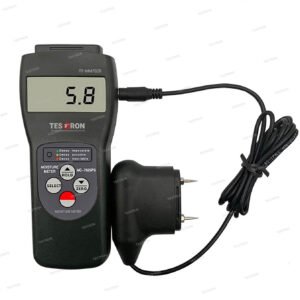

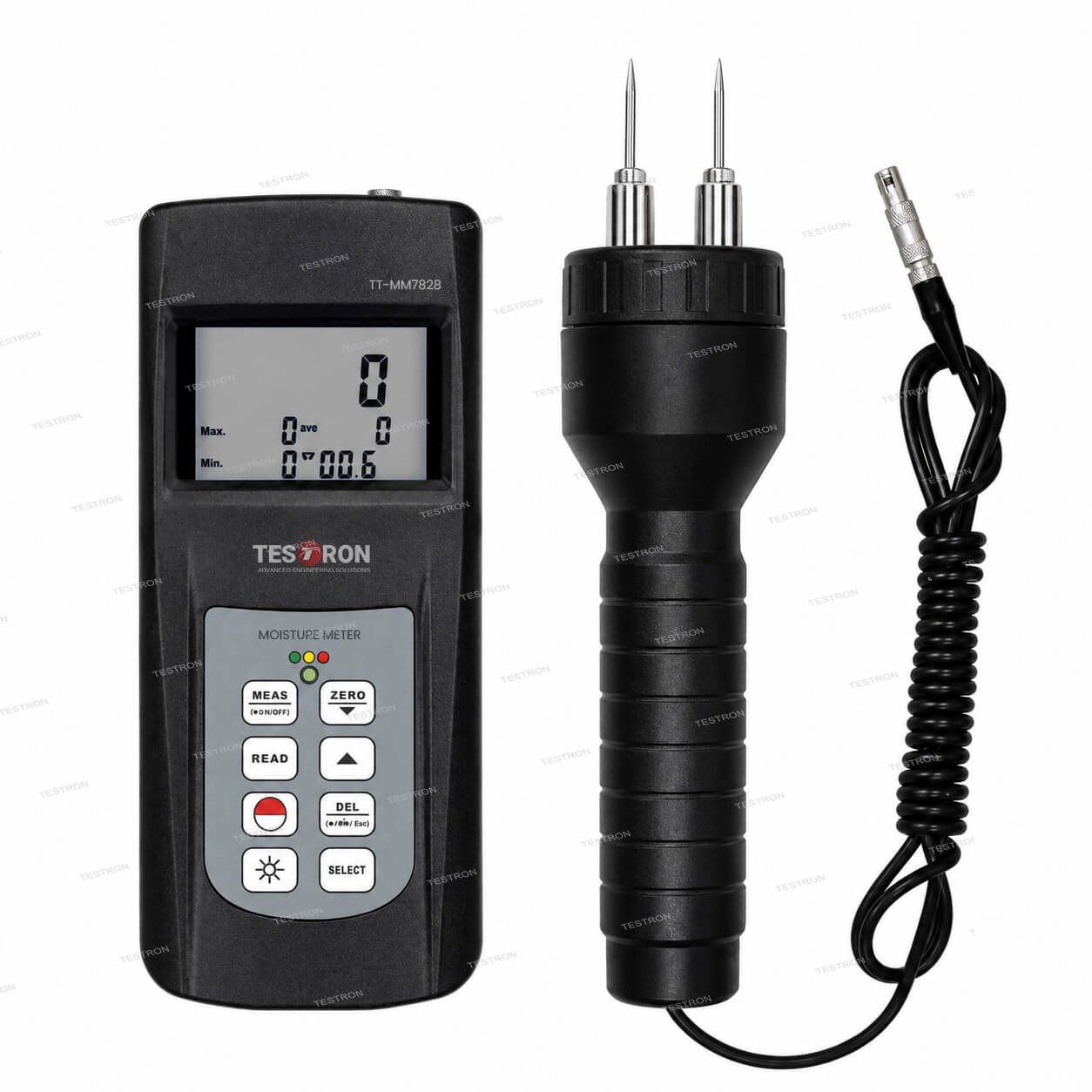

| Model | TT-MM7825 | TT-MM7828 |
| Sensor type | Search and Pin | Pin |
| Measurement Codes | 30 | 10 |
| Range | 0~80% | |
| Accuracy | ±(0.5%n+1) | |
| Resolution | 0.1 | |
| Display | LCD | |
| LED Indicator | Green LED represents a safe, air-dry state Yellow LED represents a borderline state Red LED represents a damp state | |
| Length of Pin | 10.5mm | 25mm |
| Diameter of Pin | 1.9mm | 2.3mm |
| Distance Between 2 Pins | 25mm | 18mm |
| Contact Area of Search Sensor | 36.5×12.5mm | – |
| Operating Condition | Temperature 0~50°C; Humidity < 90%RH | |
| Power Supply | 4×1.5V AAA (UM-4) Battery | |
| Dimension Sensor | 71x65x22mm | 192x44x44mm |
| Dimensions | 165x62x26mm | 150x65x30mm |
| Weight | 175g | 324g |
Standard Accessories of TT-MM7800 Moisture Meter Series
| Items | Qty |
| Main unit | 1 |
| Probe | 1 |
| Measuring Hammer | 1 |
| Carrying Case | 1 |
| Operating Manual | 1 |
| Warranty Card | 1 |
