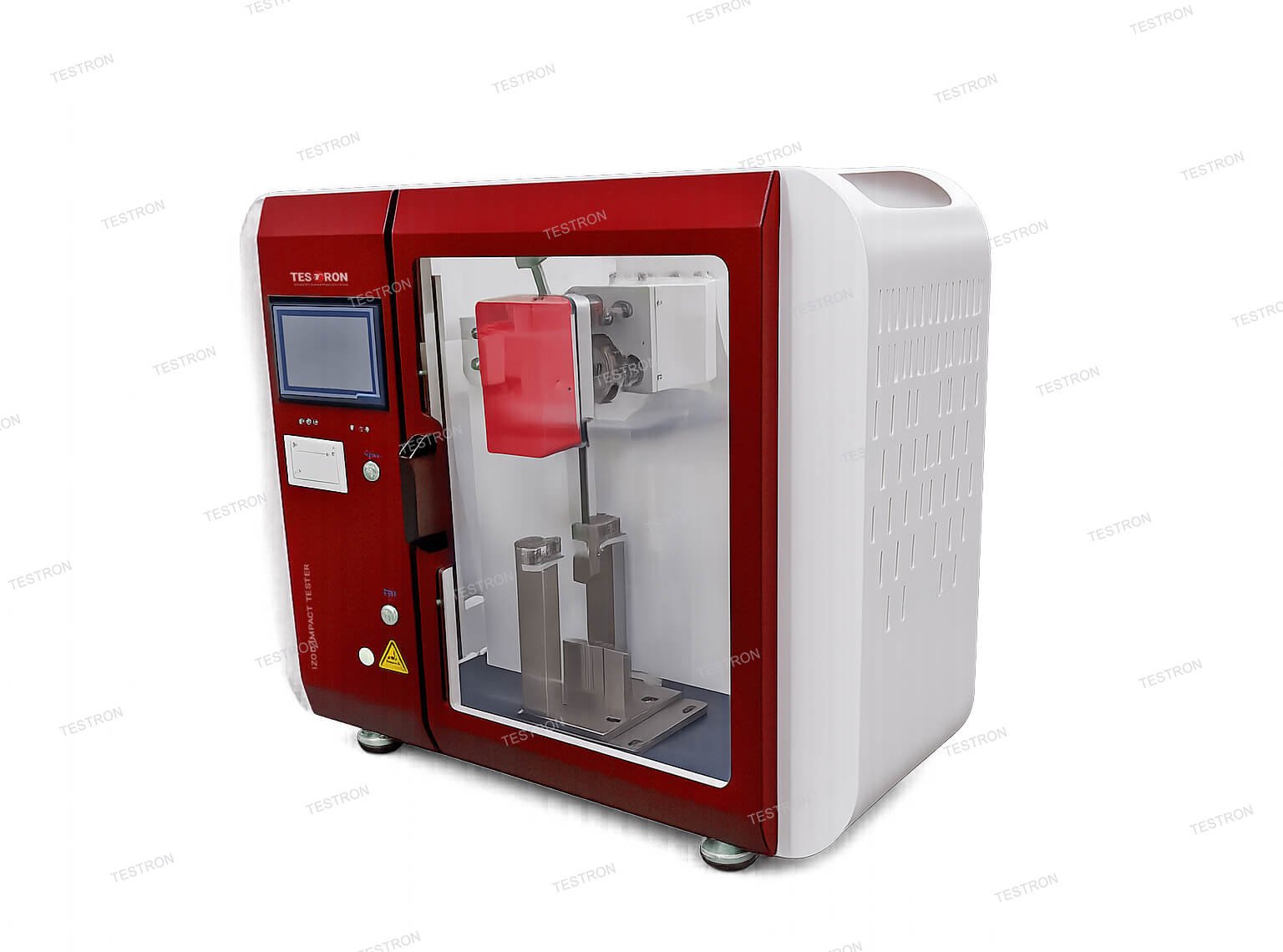

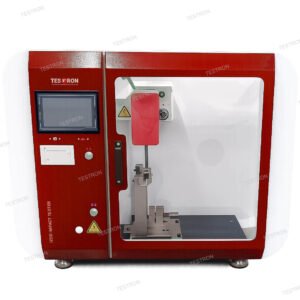

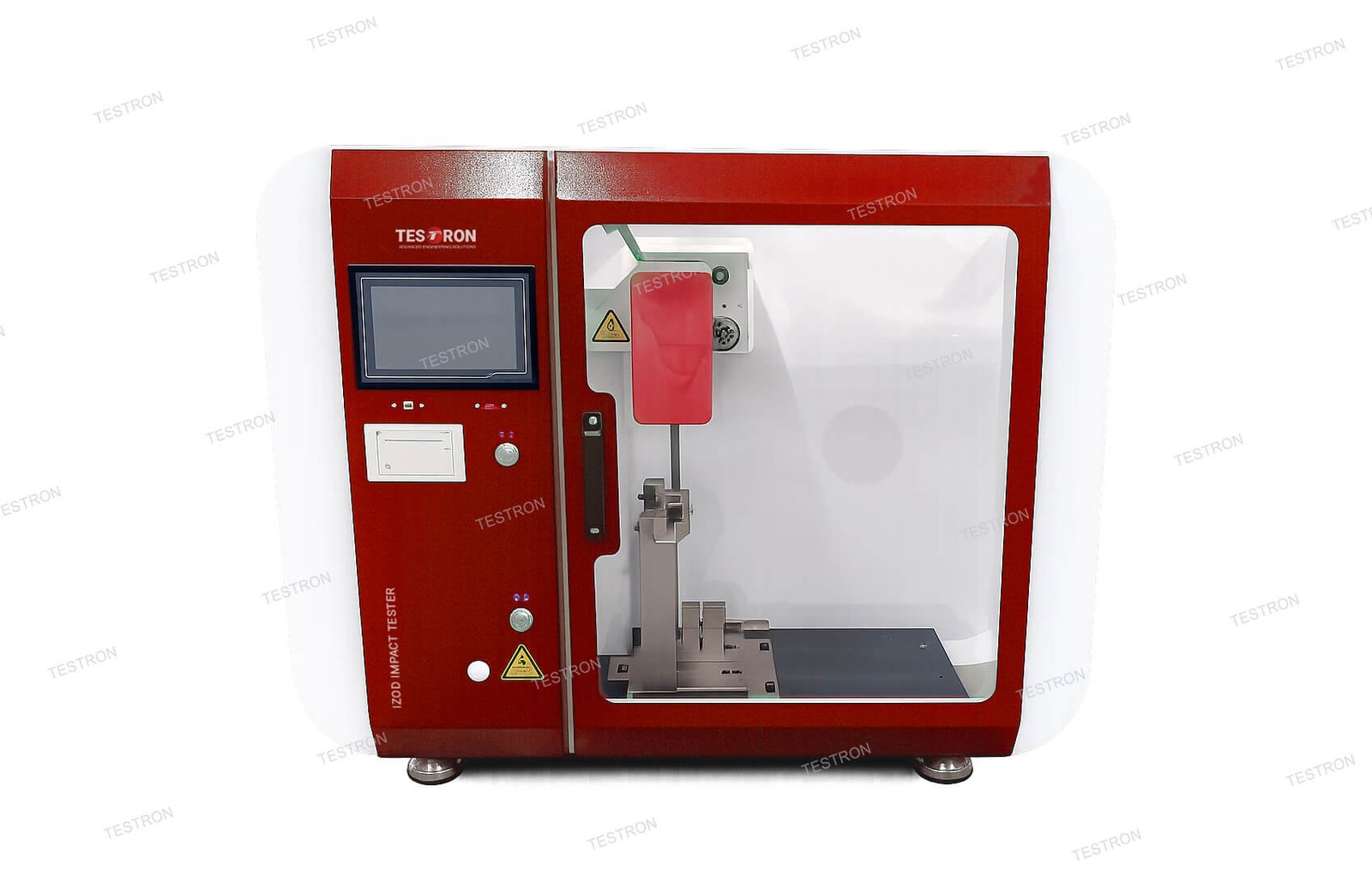

Application of TT-IZ2000 Advanced Izod Impact Tester
It is a commonly used piece of equipment for quality inspection in research institutes, universities and colleges, and manufacturers of non-metallic materials.
Test Standards of TT-IZ2000 Advanced Izod Impact Tester
ISO 180-2000, ASTM D 256-2010, GB/T1843-2008, GB/T 13525-1992 , JB/T8761-1998
Features of TT-IZ2000 Advanced Izod Impact Tester
- Integrated high-precision intelligent control system with 7-inch TFT touchscreen for real-time data acquisition, visualization, and parameter setting
- Supports bidirectional communication with external PC for data export, remote operation, and dual-control functionality
- Carbon fiber pendulum arm with optimized mass distribution to maximize impact rigidity, minimize energy dissipation, and ensure vibration-free operation
- Imported high-resolution digital encoder for precise angular displacement measurement with superior repeatability and long-term stability
- Aerodynamically optimized impact hammer assembly combined with imported low-friction bearings to minimize mechanical energy losses
- Mechanical manual braking system enabling controlled damping of pendulum motion post-impact to enhance operator safety
- Automatic calculation of impact energy, with storage capacity for up to 12 test datasets and statistical averaging capability
- Multi-language HMI interface with configurable output units (J/m, kJ/m², kg·cm/cm, ft·lb/in)
- Integrated micro-thermal printer for immediate test result documentation and report generation
Technical Specifications of TT-IZ2000 Advanced Izod Impact Tester
| Model | TT-IZ2000 |
| Impact energy | 2.75J ,5.5J, 11J and 22J |
| Pitch angle | 150°(Accuracy: 0.01°) |
| Impact velocity | 3.5m/s |
| Centre-to-centre distance of the pendulum | 335mm |
| Radius of the impact edge of a cantilever beam | R=0.8±0.2mm |
| Distance from the impact blade to the upper surface of the jaws | 22mm±0.05mm |
| Centre sample | 1 |
| Power supply | AC220V±10% 50HZ |
Standard Configuration of TT-IZ2000 Advanced Izod Impact Tester
| Items | Qty | |
| Main Host | 1 | |
| Cantilever beam 2.75J ,5.5J, 11J and 22J | 1 | |
| Cantilever beam alignment template | 1 | |
| Printer | 1 | |
| Printing paper | 1 | |
| USB stick | 1 | |
| Warranty Card | 1 copy | |
| Operation Manual | 1 copy | |
| Instruction Manual | 1 copy | |
