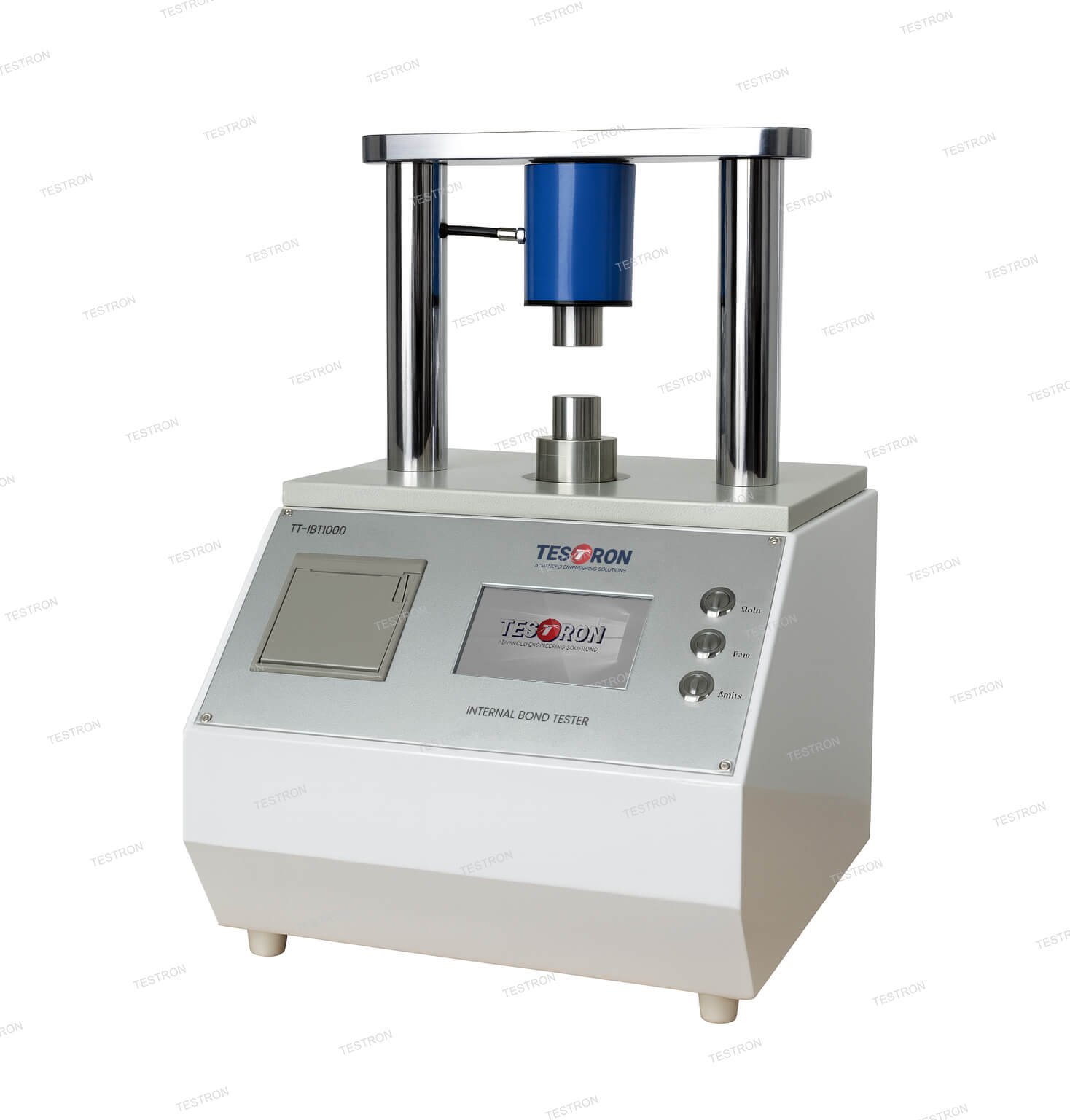

Test Standards of TT-IBT1000 Internal Bond Tester
ISO15754, TAPPI T541, GB/T 31110-2014
Application of TT-IBT1000 Internal Bond Tester
It is widely used in the white paper board, box paper, kraft paper, white cardboard, parchment, bond and other internal bond strength testing. The bonding strength is an important index of cardboard printing performance.
Features of TT-IBT1000 Internal Bond Tester
- High precision and repeatability
Using high precision load cell transmission force value, American computer chip high-speed sampling control, stepper motor precision ball screw drive, coupled with reasonable design precision machining, to ensure the equipment is of high accuracy and repeatability.
- High automation
From the compression and pasting time of adhesive tape to the z-direction rapid stretching (stripping). The automatic completion is not only convenient but also reduces human error, greatly improving the test accuracy.
- Easy to use, easy to operate
High resolution color touch screen displayed in English, friendly man-machine interface operation. The test data statistical handling function, miniature printer output can also be connected to PC. Results when connected to a computer, in addition to the automatic memory storage, can also show that the tensile curves and save.
- Used in scientific experiments and analysis
Stretch (peel off) test speed adhesion pressure compression time and other changeable preset, convenient for school scientific research units and other departments to conduct scientific experiments and analysis.
- Easy to clean, easy calibration
The upper and lower pressure heads are easy to be removed, which makes it easy to leave residues on the adhesive tape during the cleaning experiment and to connect the standard sensor for force value calibration.
- Superior performance
This instrument is a new generation of products developed and produced by our company according to the latest international standards.
Technical Specifications of TT-IBT1000 Internal Bond Tester
| Model | TT-IBT1000 |
| Measurement Range | (10~1000) N |
| Resolution | 0.1 kPa |
| Accuracy | ±0.5% |
| Test area | (645±10)mm² |
| Test Speed | (1~200) mm/min（Standard：66mm/min） |
| Pressure range | 99~1999N（Standard :900N） or 0.15～3.1MPa (Standard :1.4 MPa) |
| Time Range | 1~200s |
| Weights | 33kg |
| Dimensions | About 335 ×325 × 515 mm |
| Power | AC110~240V |
