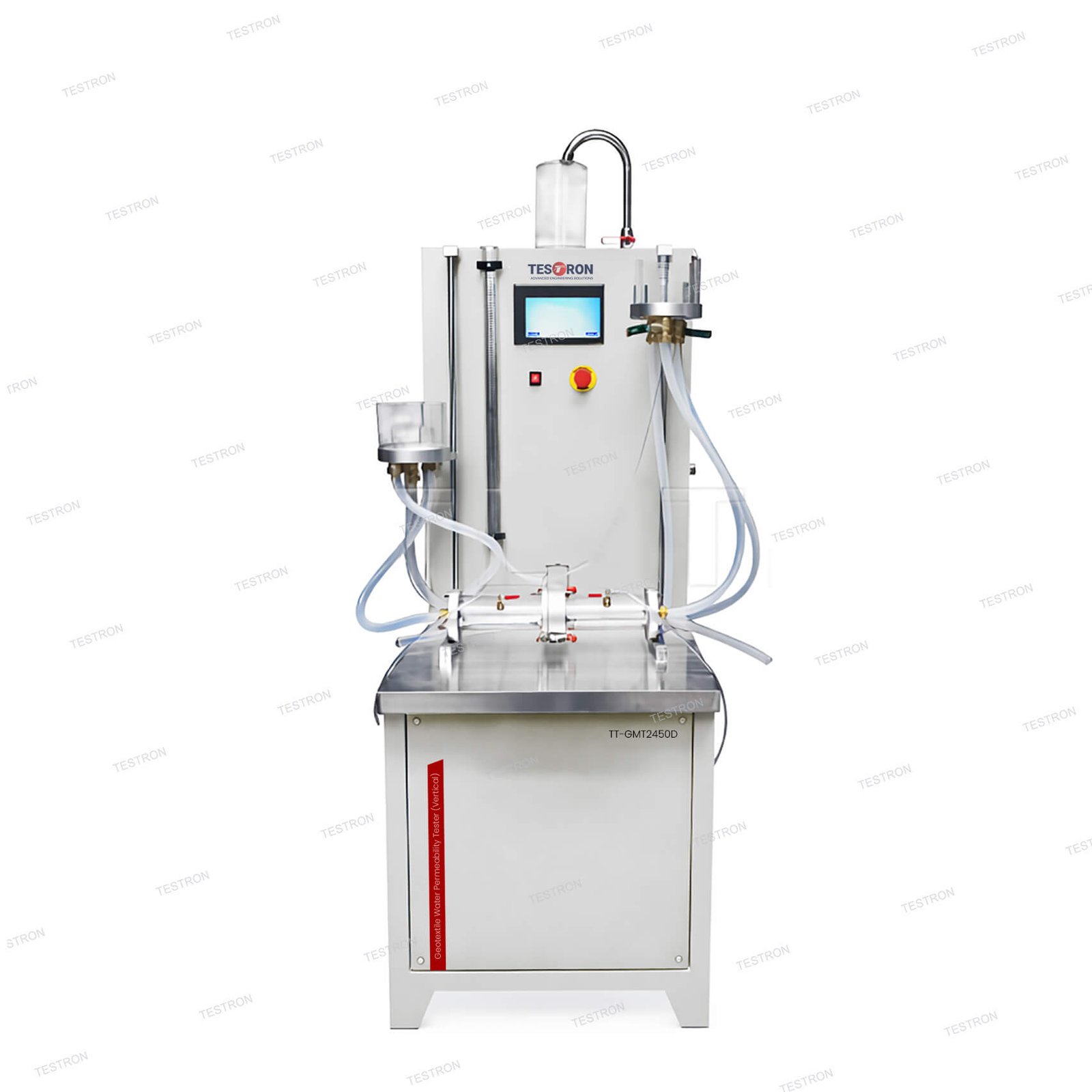

Test Standard of TT-GMT2450D Geotextile Water Permeability Tester (Vertical)
ISO 11058 Clause 6, GB/T 15789-2016 A Method, JTG E50-2006
Application of TT-GMT2450D Geotextile Water Permeability Tester (Vertical)
Geographic fabrics and composite industrial fabrics
Features of TT-GMT2450D Geotextile Water Permeability Tester (Vertical)
- The instrument features a high‑resolution color screen interface that provides clear visual guidance throughout the testing process. Real‑time display of flow rate, pressure, and permeability curves allows operators to monitor test conditions instantly and make informed decisions with confidence.
- Equipped with an advanced measurement system, the tester automatically calculates test results, significantly reducing operator workload and minimizing human error. This intelligent automation ensures greater accuracy, repeatability, and consistency, even in high‑throughput laboratory environments.
- The instrument’s robust construction, stable hydraulic system, and precision‑engineered components ensure long‑term durability and dependable performance. User‑friendly operation, intuitive menu navigation, and simplified calibration procedures make the tester suitable for both experienced technicians and new operators.
Technical Specifications of TT-GMT2450D Geotextile Water Permeability Tester (Vertical)
| Model | TT-GMT2450D |
| Operating interface | 7.8 inch touch color screen |
| Maximum water difference | 250mm |
| Blesser inner diameter | 51mm±0.2mm |
| Test the thickness | 0.1～20mm |
| Thermometer | 0-100℃±0.1℃ |
| Time controller | 0-999.9 seconds to set at any, control accuracy 0.1S |
| Water head measurement accuracy | 3% |
| Dimension | 650x700x1550mm |
| Weight | 105kg |
Standard Configuration of TT-GMT2450D Geotextile Water Permeability Tester (Vertical)
Main unit, Operational Manual, Warranty Card
