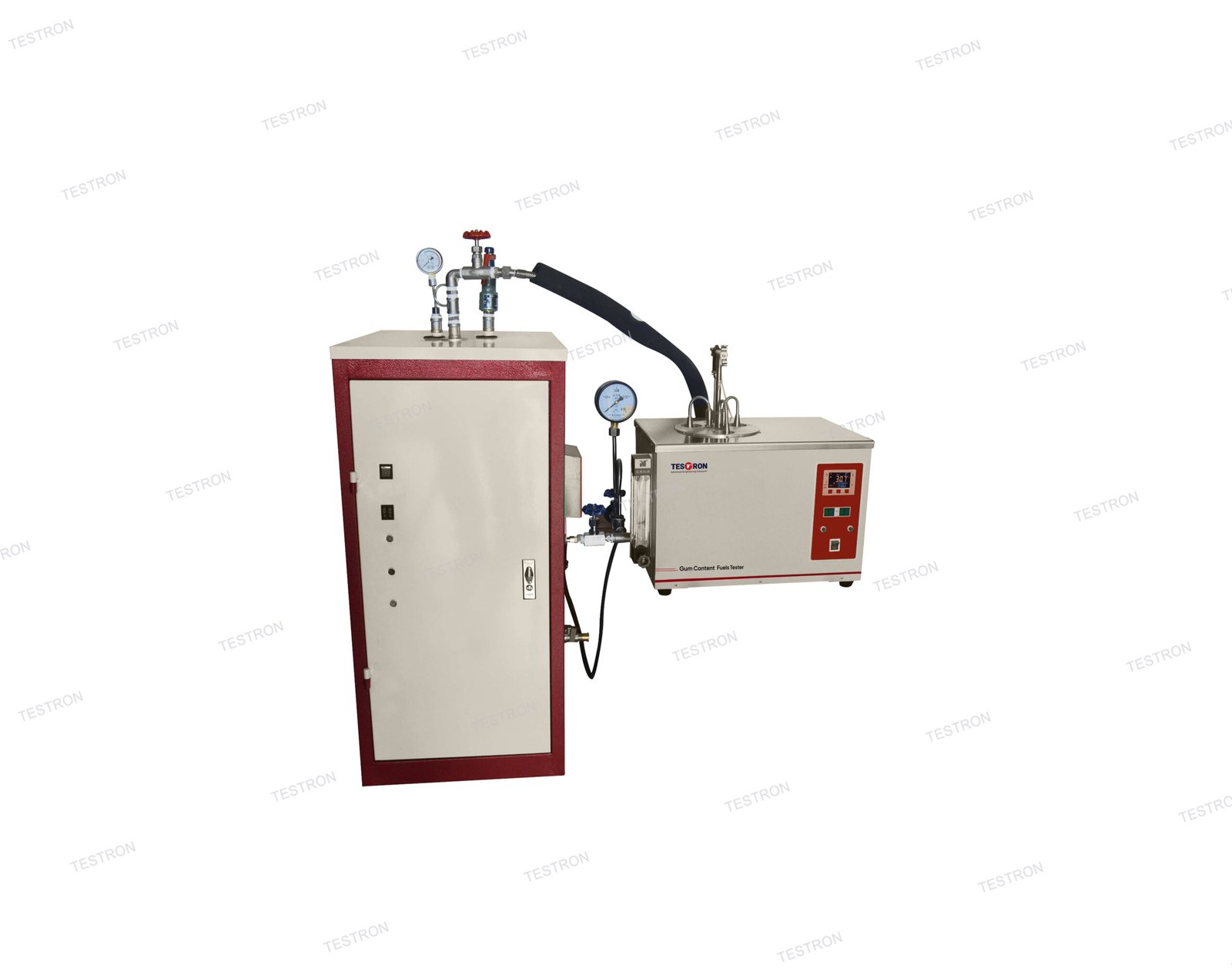

Test Standard of TT-GCF-A Gum Content Fuels Tester (Steam Jet Evaporation Method)
ASTM D381
Application of TT-GCF-A Gum Content Fuels Tester (Steam Jet Evaporation Method)
It is used in refineries, aviation fuel labs, fuel distribution centers, and quality control facilities to evaluate fuel cleanliness, stability, and deposit-forming tendencies. It is critical for ensuring product compliance with regulatory standards and maintaining optimal engine performance in both automotive and aviation sectors.
Features TT-GCF-A Gum Content Fuels Tester (Steam Jet Evaporation Method)
- Environmentally friendly metal bath has fast heating speed, more test holes, and is safe and reliable.
- High temperature control precision, with PID auto-tuning function. Sensor temperature can be modified.
- Steam generator with triple protection of over temperature, over pressure and water shortage is safe and reliable.
Technical Specification TT-GCF-A Gum Content Fuels Tester (Steam Jet Evaporation Method)
| Model | TT-GCF-A Gum Content in Fuels Tester |
| Power | 1300W |
| Temperature control range of evaporation bath | 160~165℃ (Air Method) 232~246℃ (Steam Method) |
| Temperature control precision of test hole | 150~160℃ (Air Method) 229~235℃ (Steam Method) |
| Number of Test holes | 5 |
| Air flow (per hole) | 600±90ml/s |
| Steam flow (per hole) | 1000±150ml/s |
| Dimensions | 620X330X450 mm |
| Weight | 40Kgs |
