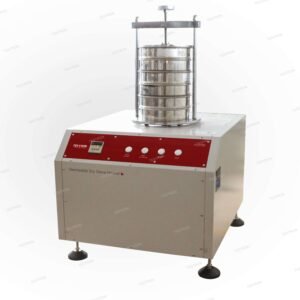

Application of TT-D4751S Geotextile Dry Sieve Shaker
TESTRON TT-D4751S is used for the determination of effective aperture by dry sieve method for geotextiles
Test standards of TT-D4751S Geotextile Dry Sieve Shaker
ASTM D4751，SL/T 235, JTG E50 T1144, GB/T 14799，
Features of TT-D4751S Geotextile Dry Sieve Shaker
- Has uniform sieving that ensures consistent particle distribution analysis.
- With user-friendly controls for easy and straightforward operation
- Provides accurate results for precise particle size distribution analysis.
- Equipped with timer that enables precise control over sieving duration.
Technical Specifications of TT-D4751S Geotextile Dry Sieve Shaker
| Model | TT-D4751S |
| Maximum diameter of screen | 200mm |
| Sieve stacking height | 400mm |
| Radius of rotation | 12±1mm |
| The number of lateral sieve shaking | 220 times/min |
| Vertical vibration times | 150 times/min |
| Amplitude | 10±2mm |
| Timing range | 0 ~ 99 minutes |
| Power supply | AC380V±10% 50Hz 400W |
| Overall size | 590×700×700mm |
| Weight | 75kg |
