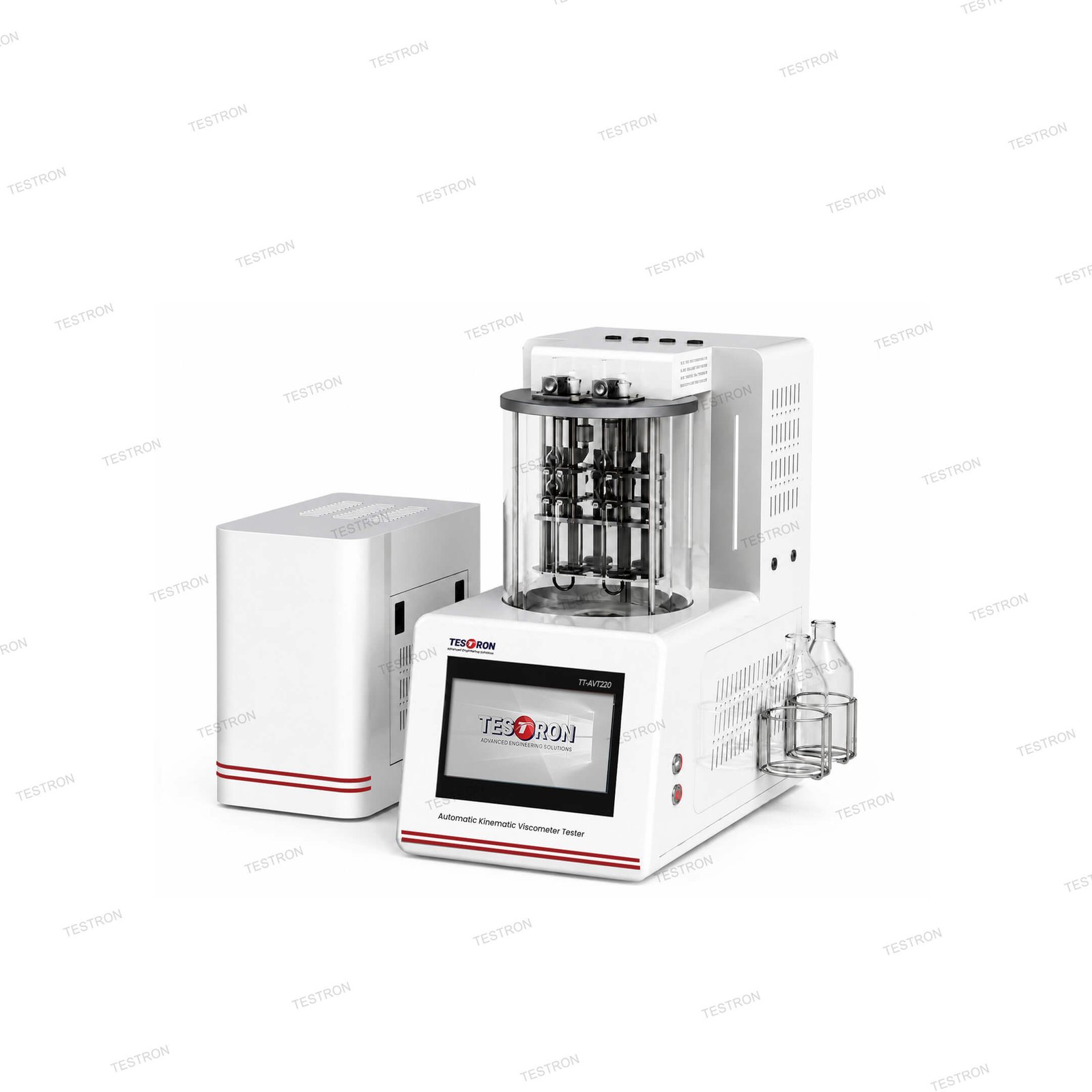

TT-AVT220 Automatic Kinematic Viscometer Tester

TESTRON TT-AVT220 is used to automatically determine the kinematic viscosity of liquid petroleum products (Newtonian liquids). The instrument uses precise temperature control, automatic timing, and integrated PLC control to ensure stable and accurate testing. The determination process is completed automatically, including temperature control, timing, cleaning, drying, liquid-level monitoring, experimental data recording, and automatic calculation of test results.

Inquiry Now

Categories: Material Testing, Petroleum Testing

Description

Test Standards of TT-AVT220 Automatic Kinematic Viscometer Tester

GB/T 265, ASTMD445, D446, ISO3104, ISO 3105, GB/T 30515

Application of TT-AVT220 Automatic Kinematic Viscometer Tester

It is widely used in petrochemical, electric power, railway, scientific research, and other industries for petroleum product analysis, quality inspection, and kinematic viscosity testing.

Features of TT-AVT220 Automatic Kinematic Viscometer Tester

High-Precision Temperature Sensor: Uses a high-precision temperature sensor to ensure the accuracy of temperature measurement.
PLC Integrated Control: Adopts PLC control to improve the degree of automation and ensure stability during operation.
Touch LCD Screen: Equipped with a touch LCD screen, man-machine dialogue menu, and guided operation for simple and convenient operation.
Automatic Test Process: The determination process is completed automatically, including automatic temperature control, timing, cleaning, drying, liquid-level prompting, waste-liquid prompting, experimental data recording, and automatic calculation of experimental results.
Automatic Data Management: Provides selective automatic data saving and selective automatic printing of experimental results.
Anti-Dry-Burning Design: Features an anti-dry-burning design to ensure the safety of the test.
LIMS Connectivity: Provides an RJ-45 network port and USB interface, with optional connection to a LIMS system and scanner gun.
Low-Noise Vacuum Control: Provides vacuum pressure of -70 kPa with low-noise operation.
Anti-Corrosion Cleaning System: Uses SMC three-way and two-way valves with anti-corrosion and durable characteristics, together with a fluorine hose liquid pipeline for anti-corrosion performance.
Low-Vibration Stirring Motor: Uses a DC motor with good mute effect and small vibration.

Technical Specifications of TT-AVT220 Automatic Kinematic Viscometer Tester

Model	TT-AVT220
Control Module	PLC integrated module, electronic circuit and touch screen control vacuum pressure: -70kPa (low noise).
Water Discharge Flow	220ml/min.
Cleaning Valve Body	SMC three-way valve body (anti-corrosion and durable), SMC two-way valve (anti-corrosion and durable) liquid pipeline: fluorine hose (anti-corrosion)
Stirring Motor	DC motor (good mute effect and small vibration)
Temperature Control Module	high-precision temperature control module.
Temperature Measurement Range	10℃ ~ 120℃, and the discrimination rate of refrigerator below room temperature is 0.01℃
Detection Technology	: infrared photoelectric technology, timing accuracy: 0.001s, measuring range: 0.5-5000mm²/s s.
Sample Dosage	10mL constant temperature
Constant Temperature Bath	1
Detection Position	2
Detection Time	≥ 200 s
Working Power Supply	AC 220v 10%, 50hz 10%.
Power of the whole Machine	Rated Power 500W, Maximum Power 1200W W
Operating Environment	Temperature 5℃ ~ 40℃, humidity < 85% RH; There is no strong vibration, airflow, strong electromagnetic interference and corrosive gas around the laboratory.
Overall Dimensions	main engine size 615mm×350mm×660mm, pump box size 410mm×235mm×405mm (length x width x height)
Instrument Weight	60kg (with pump box)
