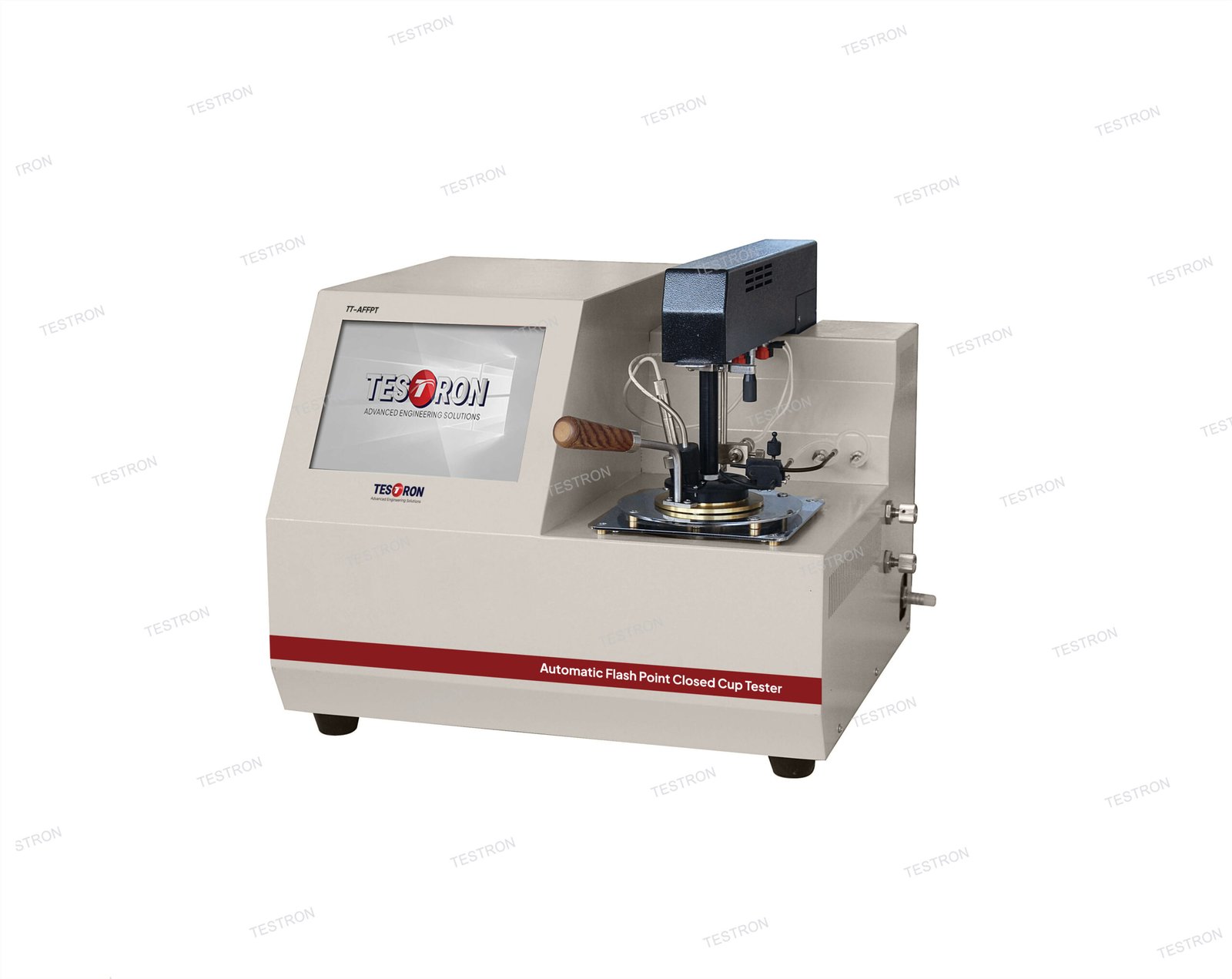

Test Standard of TT-AFPCT Automatic Flash Point Closed Cup Tester (Pensky-Martens)
ASTM D93 , ISO 2719
Application of TT-AFPCT Automatic Flash Point Closed Cup Tester (Pensky-Martens)
It measures the lowest temperature at which a liquid emits flammable vapors in a sealed environment. It’s widely used in petroleum, chemical, and lubricant industries to ensure safety and regulatory compliance.
Features of TT-AFPCT Automatic Flash Point Closed Cup Tester (Pensky-Martens)
- Embedded computer, 8-inch color LCD touch screen, all English interfaces.
- Real-time display of expected flash point, applicable standard, maximum flash point, detection sensitivity and test status and other information.
- It has the functions of automatic control of heating rate, automatic ignition, automatic judgment, automatic cooling and so on.
- Stepper motor is used to stir the sample, the speed is stable and accurate, completely in line with ASTM D93 standard for stirring speed.
- Can save 500 test results, test data can be transmitted to the LIMS system.
- With electronic ignition and gas ignition two ways.
Technical Specification of TT-AFPCT Automatic Flash Point Closed Cup Tester (Pensky-Martens)
| Model | TT-AFPCT |
| Measurement range | 40~300℃ |
| Flash point detector | Micro thermocouple |
| Heating speed | A method:5~6℃/min |
| B method:1~1.5℃/min | |
| C method:3.0±0.5℃/min | |
| Heater | 220V 0.5KW |
| Gas source | Liquefied petroleum gas/Butane |
| External dimensions | 384 X 418 X 328 (mm) |
| Weight | 15Kgs |
Standard Configuration of TT-AFPCT Automatic Flash Point Closed Cup Tester (Pensky-Martens)
| Items | Qty |
| Main machine | 1 set |
| Fuse wire Φ6×30 10A | 1 piece |
| Oil cup | 1 piece |
| Thermometer －5～110℃ | 1 piece |
| Thermometer 20～150℃ | 1 piece |
| Thermometer 90～370℃ | 1 piece |
| Thermometer adapter | 1 set |
| Windshield | 1 piece |
| Temperature sensor | 1 piece |
| LPG connection pipe | 1 piece |
| Mouse, keyboard | 1 set |
| Main board battery | 1 piece |
| Hose clamp φ16 | 1 piece |
| Socket hexagon wrench | 1 piece |
| Warranty Card | 1 copy |
| Instructional Manual | 1 copy |
