Application of TT-2510E Coating Thickness Gauge
It is ideal for painted surface testing, car paint inspection, and quality control. Ferrous substrates like steel and iron, it measures non-magnetic coatings such as paint and powder coating. It helps ensure coatings meet industry standards in automotive, aerospace, and construction. Non-ferrous materials like aluminum, copper, and brass, it measures coatings on conductive surfaces. It is useful for checking protective layers on aircraft and vehicle parts to ensure durability and performance.

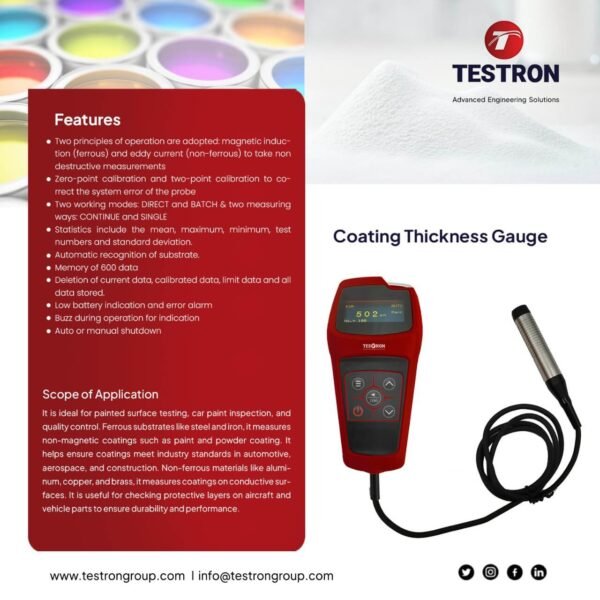

Features of TT-2510E Coating Thickness Gauge
- Two principles of operation are adopted: magnetic induction (ferrous) and eddy current (non-ferrous) to take non-destructive measurements
- Zero-point calibration and two-point calibration to correct the system error of the probe
- Two working modes: DIRECT and BATCH & two measuring ways: CONTINUE and SINGLE
- Statistics include the mean, maximum, minimum, test numbers and standard deviation.
- Automatic recognition of substrate.
- Memory of 600 data
- Deletion of current data, calibrated data, limit data and all data stored.
- Low battery indication and error alarm
- Buzz during operation for indication
- Auto or manual shutdown
Technical Specifications of TT-2510E Coating Thickness Gauge
| Model TT-2510E | ||||
| Probe Type | F | N | ||
| Working Principle | Magnetic induction | Eddy current | ||
| Measuring range | 0-1250 μm | 0-1250 μm, 0-40μm (for chrome plate on copper) | ||
| Minimum resolution | 0.1μm | |||
| Tolerance | Zero point calibration | ±(3%H+1) μm | ±(3%H+1.5) μm | |
| H means the thickness of tested piece | ||||
| Two points calibration | ±{(1-3)%H+1}μm | ±{(1-3)%H+1.5}μm | ||
| H means the thickness of tested piece | ||||
| Measuring Condition | Min. curvature radius | Convexity 1.5 mm | Convexity 3 mm | |
| Min. area diameter | Φ7 mm | Φ5 mm | ||
| Critical thickness of the base | 0.5 mm | 0.3 mm | ||
| Operating environment | Temperature: 0℃ – 40℃ | |||
| Humidity: 20%-90% | ||||
| No strong magnetic field | ||||
| Power | 2 pcs AAA 1.5 V battery | |||
| Dimension | 110 x 50 x 23 (mm) | |||
| Weight | 100 g | |||
Standard Configuration of TT-2510E Coating Thickness Gauge
| Item | Qty |
| Main Unit | 1 |
| Substrate | 2 |
| Calibration Foil set | 1 |
| Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
Optional Accessory of TT-2510E Coating Thickness Gauge
- Connecting Cable
- Data view software
