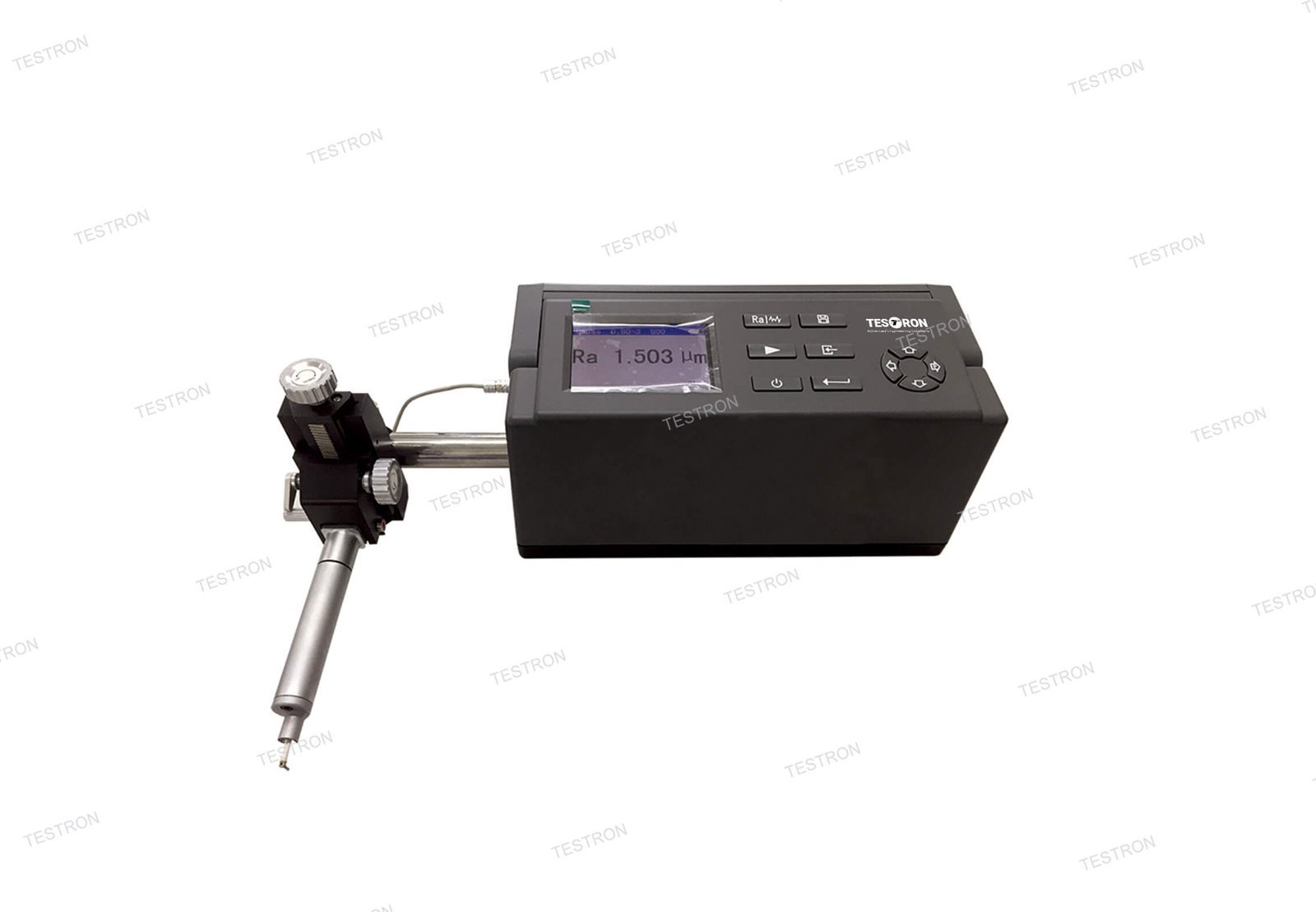

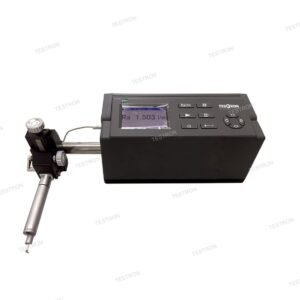

Application of TT-3233 Surface Roughness Tester Profilometer
A surface roughness tester (profilometer) is an indispensable tool across multiple industries that require high precision in surface texture. It is essential not only for ensuring the functionality, durability, and quality of parts but also for maintaining safety standards and aesthetics in products.

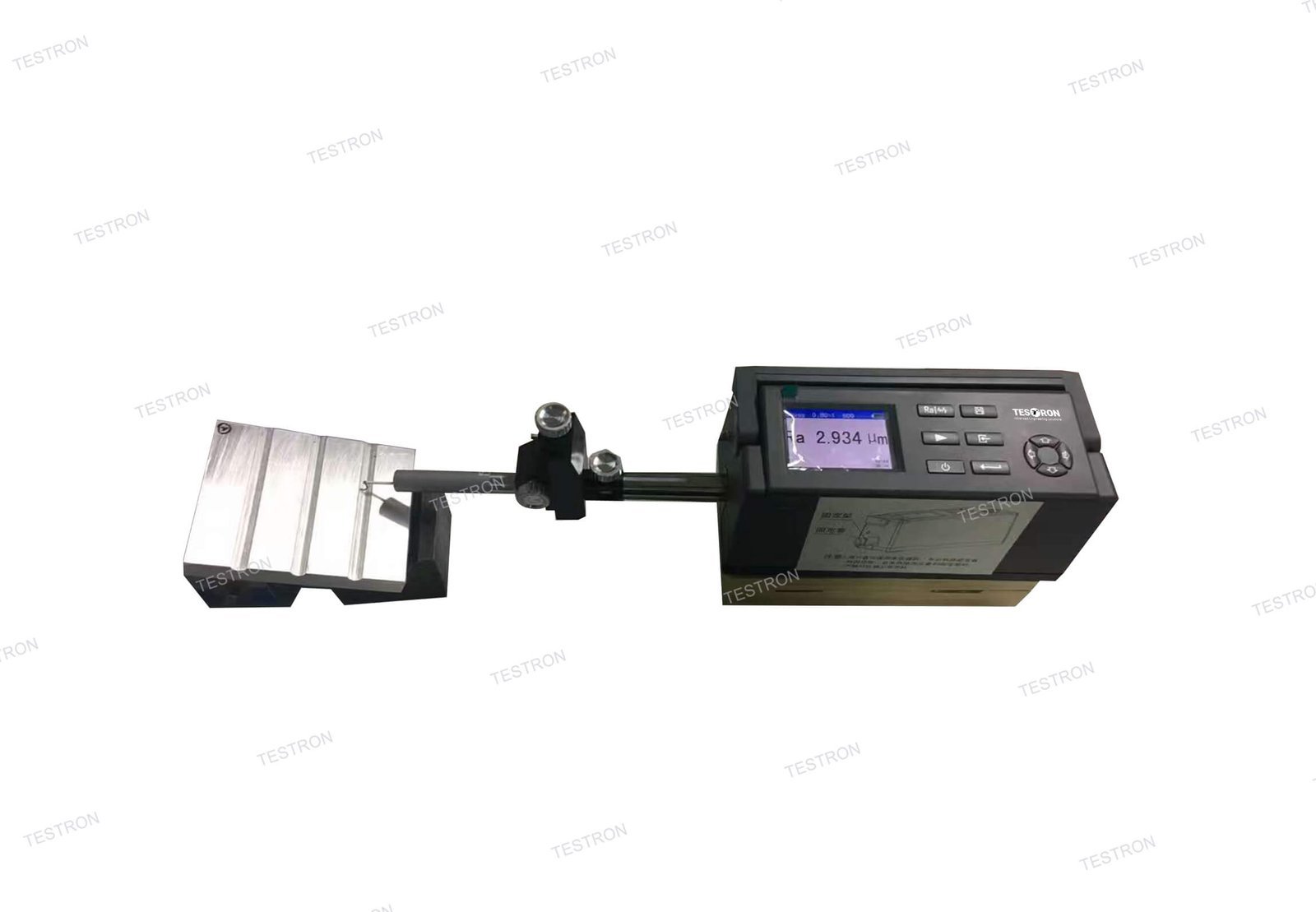

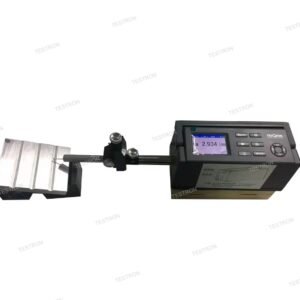

Features of TT-3233 Surface Roughness Tester Profilometer
- Separated design, easy and convenient to use, especially for narrow spaces down to 1.5mm
- 55 kinds of measurement parameters conform to
- Rectangular driver for 90 angle measurements, even without lead.
- High accuracy in the surface roughness, waviness and primary profile testing.
- LCD displays digital and graphic information
- Numerous optional sensors to approach even the most inaccessible places, with or without leads
- Transfer to PC via RS232 with advanced PC
- Software TestronSurf for more analyzing management, and data can be stored in Excel file.
- Printer can be connected to print the digital and graphic information
- Wide measurement ranges up to 800 um, with the Accuracy 5 % and Repeatability 3%
- Adjust angle and lifting height by your choice.
- Full length waving testing with the maximum tracing length up to 50 mm.
Technical Specifications of TT-3233 Surface Roughness Tester Profilometer
| Model | TT-3233 |
| Assessed profile | R (Roughness), W (Waveness), P (Primary profile) |
| Measuring range | ±400μm, ±25μm |
| Filtering | RC, PCRC, Gauss, D-P, ISO 13565 |
| Parameters | R: Ra, Rp, Rv, Rt, Rz, Rq, Rsk, Rku, Rc, RS, RSm,
Rlo, RHSC, Rpc, Rmr(c), RzJIS, R3y, R3z W: Wa, Wp, Wv, Wt, Wz, Wq, Wsk, Wku, Wc, WS, WSm, Wlo, WHSC, Wpc, Wmr(c), WzJIS P: Pa, Pp, Pv, Pt, Pz, Pq, Psk, Pku, Pc, PS, PSm, Plo, PHSC, Ppc, Pmr(c), PzJIS Rk: Rk, Rpk, Rvk, Mr1, Mr2 |
| Cut-off length | 0.08mm,0.25mm,0.8mm,2.5mm,8mm,10mm |
| Max. tracing length | 50mm |
| Analysis graphs | ADC, BAC |
| Evaluation length | 1L-5L |
| Resolution | 0.001μm/50μm；0.016μm/800μm |
| Tolerance | ±5% |
| Display | LCD |
| Memory | 10 groups of primary data |
| Data output | RS232, USB |
| Power supply | Li battery / AC adapter |
| Dimensions (mm) | 409×96×98 |
| Weight (g) | 2300 |

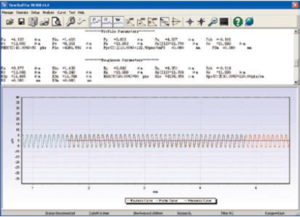

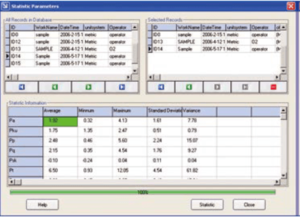

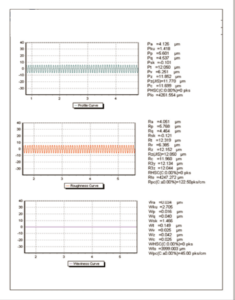

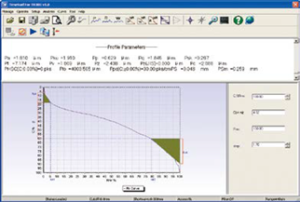

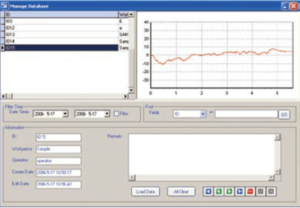

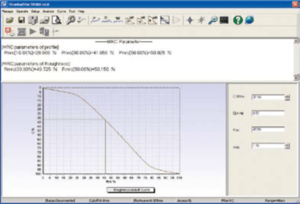

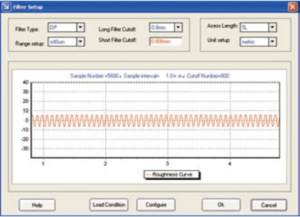

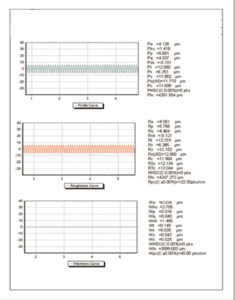

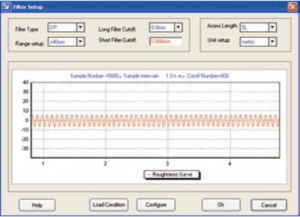

Software of TT-3233 Surface Roughness Tester Profilometer
Optional Accessory
- PC software (TestronSurf for Testron323X)
- RS232 communication cable
