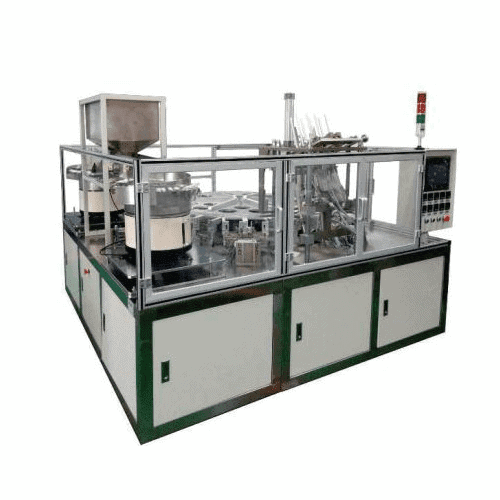

Spout Insert and Sealing Machine Features:
- Fully automatic; a single set of machine needs only one operator, and the operator just needs to load enough spouts and bags at intervals.
- Adopting round disc structure, the equipment occupies small space.
- All the components are made of aluminum and stainless steel, and meet the hygienic and quality requirements of food, pharmaceutical, environmental and industries.
- Easy to use with precise control; runs stably and works long hours continuously.
- Adopts imported temperature control module, SMC pneumatic component, Omron PLC control unit to ensure the quality, performance, and life of the machine.
- Automatically detects faults, gives alarms, stops, diagnoses and show where the fault is.
Spout Insert and Sealing Machine Technical Specifications:
- Bag types: self-stand bags, three-side sealing bags, doypacks, irregular bags and cubic bags
- Spout standard: diameter 8.5mm or 10mm, customization is available
- Bag width: medium tube 60-120mm, inclined tube 60~150mm
- Bag length: medium tube 70~210mm, inclined tube 60~150mm
- Processing speed: medium tube 90pcs/min (customized bag rack, three-side sealing bags and doypacks) Inclined tube 80pcs/min (irregular bags)
- Main transmission structure: splitter (0-degree error)
- Servo motor: special flange gear-down motor
- Sealing method: heat sealing
- Sealing blades: 6 sets– 1 set for cooling.
- Controlling method: PLC controlled
|
1. Pouch options
|
Doypack bag, three-side sealed bag, stand up pouch with top center spout, stand up pouch with top corner spout
|
|
2. Bag size
|
Bag sealing width range: 60~120mm Bag sealing length range: 70~230mm
|
|
3. Material type
|
Bag: In-layer PE, in-layer PP Spout: PE, PP
|
|
4. Spout size
|
Caliber 8.5mm(normal), Caliber 10 mm
|
|
5. Production speed
|
Adjustable from 90 pcs/ min
|
|
6. Heat sealing cutter
|
Preheat: 1 group, Heat sealing: 4 Group, Cooling: 1 group
|
|
7. Power
|
13KW
|
|
8. Electric source
|
380V, in three-phase four-wire system
|
|
9. Machine size
|
about 290cm(width) x 270cm(length) x 220cm(height)
|
|
10. Weight
|
2500kg
|
Spout Insert and Sealing Machine Main Components:
|
No.
|
Name
|
Brand
|
|
1
|
Servo motor
|
Made in China
|
|
2
|
Frequency transformer
|
Omron
|
|
3
|
PLC
|
Omron
|
|
4
|
Magnetic switch
|
SMC
|
|
5
|
Photoelectric switch
|
KEYENCE/Omron
|
|
6
|
Pneumatic component
|
SMC/AIRTAC
|
|
7
|
Temperature control module
|
Omron
|
|
8
|
Slitter
|
DEX
|
|
9
|
LCD touch screen
|
Omron
|
Spout Insert and Sealing Machine Configuration:
|
No.
|
Name
|
Quantity
|
|
1
|
Spout sealing machine
|
1 set
|
|
2
|
Vibrating disk
|
2 sets
|
|
3
|
Sealing blade
|
6 sets
|
|
4
|
Bag putting track
|
2 tracks
|
|
5
|
Sealed bag collecting track
|
1 set
|
|
6
|
Installation tools
|
1 set
|
|
7
|
Specification (User Manual)
|
1 set
|
Spout Insert and Sealing Machine Mechanical Structure:
|
1. Control cabinet
|
PLC, Power, Display, Leakage Protection, etc.
|
|
2. Spout delivery
|
Base, Spout inlet section, feeding track, vibration disk, vibration feed out
|
|
3. Turntable
|
Main turntable, 12 groups station frames
|
|
4. Station
|
6 groups sealing cutting and finished & wasted products station
|
|
5. Bag putting platform
|
Magnetic Valve, active groups of cylinders, upper and down support board, support column
|
|
6 . Automatically placed bag system
|
Cylinder, Guide rail, Bag collecting platform
|
|
7. Regulator panel
|
Panel, regulating table, pressure regulating Valve
|
|
Spout delivery system
|
Position sensor
|
Photoelectric sensor
|
|
Photoelectric sensitivity
|
≤0.5 mm
|
|
|
Bag delivery system
|
Drive mode
|
Cylinder drive
|
|
Control mode
|
Central control system
|
|
|
Structural
|
Duplex Sending Line
|
|
|
Bag output system
|
Drive mode
|
Pneumatic Drive
|
|
Control mode
|
Automatic counting of the central control system, control pendulum edges, each slot 50-54 pcs
|
|
|
Empty bag detection
|
Photoelectric switch
|
