HCL Corrosion Noxious Gas Test Chamber | Gas Testing

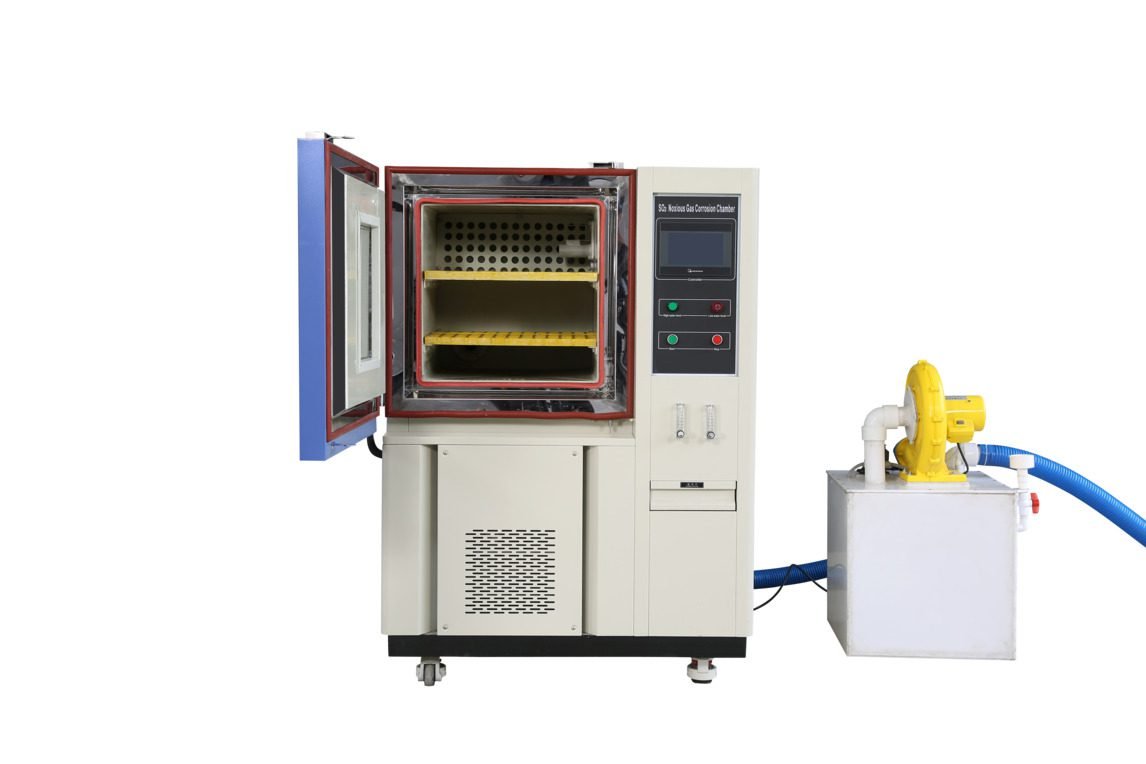

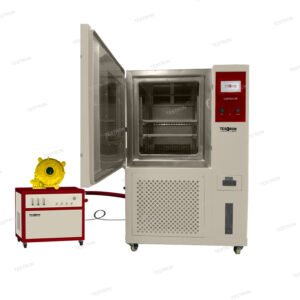

SO2 H2S CO2 HCL Corrosion Noxious Gas Test Chamber

SO2 Noxious Gas Test Chambers reproduce damages by temperature, relative humidity, and noxious gas Corrosion to material, components, and constructions.

This noxious gas chamber can be used for single gas tests and mixed gas tests. Test methods are in accordance with IEC 60068-2-42, IEC60068-2-60, and other standards.

Corrosion Noxious Gas Test Chamber Features:

Floor Type
Automatic measure and control gas
Temperature control and display unit
Humidity control and display unit
Test SO2 H2S CO2 HCL single gas and mixed
Programmable color LCD touch screen controller
USB and Ethernet
Electromagnetic lock to prevent the door from opening under the working
Air-cooled refrigeration system
Casters, shelf, and cable port are standard
Safety protection system
CE mark, ISO17025 calibration

Corrosion Noxious Gas Test Chamber Models:

Model	Internal Dimensions (mm)	Overall Dimensions(mm)	Temperature Range	SO2_concentration
SO-100	450450500	10508801440	15 ºC ~+80 ºC	25 ±5 ppm
SO-225	500600750	105010202000	15 ºC ~+80 ºC	25 ±5 ppm
SO-500	800700900	132013202170	15 ºC ~+80 ºC	25 ±5 ppm
SO-800	80010001000	147015202315	15 ºC ~+80 ºC	25 ±5 ppm
SO-1000	100010001000	167015202315	15 ºC ~+80 ºC	25 ±5 ppm
