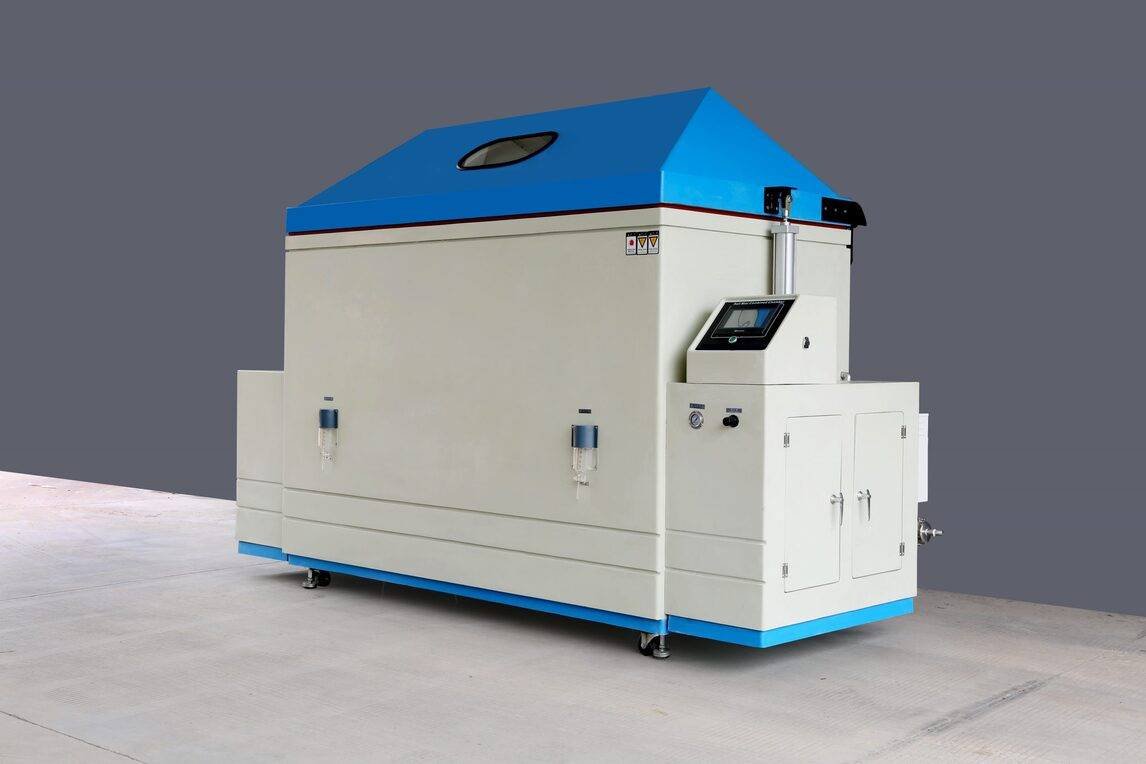

Cyclic Salt Spray Corrosion Test Chamber

The cyclic salt spray chamber is different from the basic salt spray test chamber. Cyclic corrosion test chamber exposes samples to a series of different environments in repetitive cycles that incorporate temperature, humidity, salt spray, and dry. Accelerated corrosion test methods included ASTM B117, ASTM BG85, ISO9227, IEC60068-2-52, iec61701-2, ISO7253, and many others.

SC series corrosion chambers are upgraded to programmable controller and Ethernet access. All models are automated and can be working continuously. various models can meet different test requirements.

Cyclic Salt Spray Corrosion Test Chamber Features:

Pneumatic open /close lid
Material is Glass fiber reinforced plastics (corrosion resistance, high-temperature resistance, aging resistance)
Temperature measure, control, and display Unit, temperature from +10℃ to +90℃
Humidity measure, control, and display Unit, humidity from 30%RH to +98%RH
Salt fog measure and control, 1 to 2 ml/80cm2.h
Programmable color LCD touch screen controller
Ethernet access & USB(option)
Casters and holders are standard
SO2 gas measurement and control(option)
Protection system
Standard and custom.
CE mark, ISO17025 calibration

Cyclic Salt Spray Chamber Models:

Model	Internal Dimensions (mm)	Overall Dimensions (mm)	Temperature Range	Salt Spray Deposition
SC-010	8001450680	140025001720	10℃ ～90℃	1～2ml / 80cm2 • h
SC-016	10001600800	160026501840	10℃ ～90℃	1～2ml / 80cm2 • h
SC-020	10002000900	160030501940	10℃ ～90℃	1～2ml / 80cm2 • h

Cyclic Salt Spray Corrosion Test Chamber Accessories:

Number	Name	Description
No.1	Salt spray nozzle	Salt spray nozzle, Material： Glass
No.2	Salt Fog Collector	Material： Glass Size: Superficial area is 80 cm2
No.3	Measuring cylinder	Material： Glass 25ml (for S-150，S-250) 60ml (for S-750，S-010.S-016；S-020)
No.4	Air Compressor	Pressure：8KG; Air storage tank: 40L; Weight: 12kgs; Size: 650X450X700 mm (for S-150 S-250 S-750 S-010 ); Pressure：8KG; Air storage tank: 80L (for S-020)
No.5	Peristaltic Pump	>Flow: 1~30ml/ minute
No.6	Salt for salt spray testing	Salt for salt spray test; Purity 99.5%
No.7	Heater	Heater
