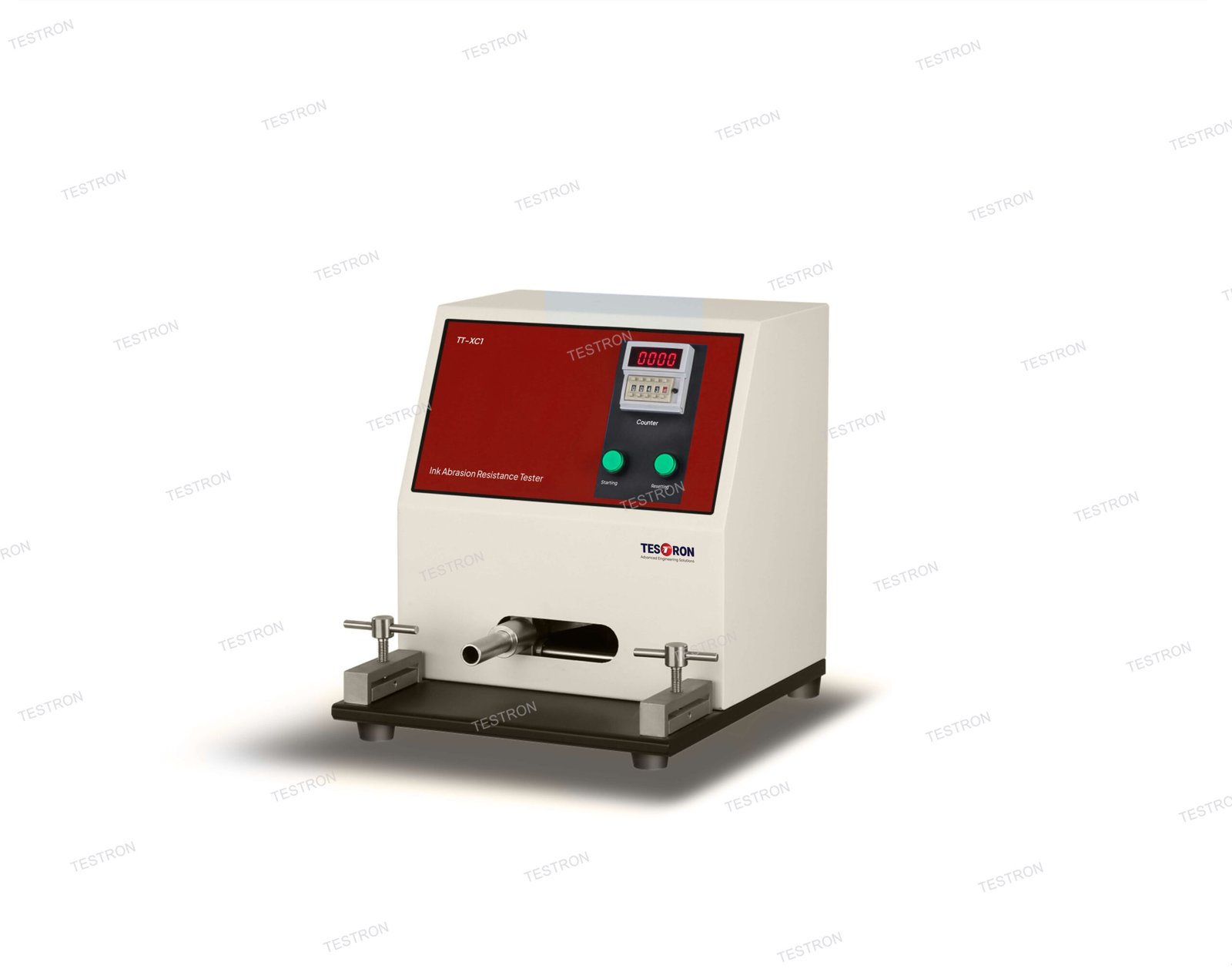

Ink Abrasion Resistance Tester Standards:
ASTM D5264, GB/T 7706-2008
Ink Abrasion Resistance Tester Features:
- Microcomputer control, LCD dynamic display.
- Testing parameters input by press key and having the memory function of an outage.
- Controlling and solving the problems of the proof grade of print ink abrasion resistance, low rub resistance.
- It is compatible with the PS version of a high-sensitive layer of abrasion resistance testing, analysis, and forecasting the PS version of the anti-print forces.
Ink Abrasion Resistance Tester Specifications:
| Item | Technical Parameters |
| Rub pressure | 20±0.2N |
| Rub speed | 43cpm per time or minute |
| Rub area | 155mm(L) x 50 mm(B) |
| Rub times | 0~999 times |
| Sample size | 230mm × 50mm (short samples can be joint together) |
| Instrument size | 260mm × 290mm × 340mm |
| Weight | 20kg |
| Power | 40W |
| Power supply | AC 220V 50Hz |
Ink Abrasion Resistance Tester Configuration List:
| A, Spare parts | |||
| NO. | Name | Remark | Quantity |
| 1 | Power cable | 3*0.75 10A 1.8M | 1 PC |
| 2 | Wooden box | 1 PC | |
| 3 | Slider | 1 PC | |
| C, User provide | |||
| 1 | Power supply 500w 220V 10A three holes socket ground wire | ||
