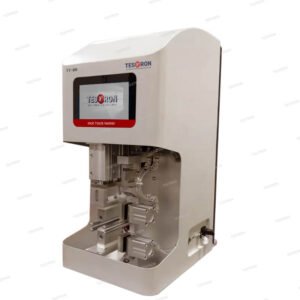

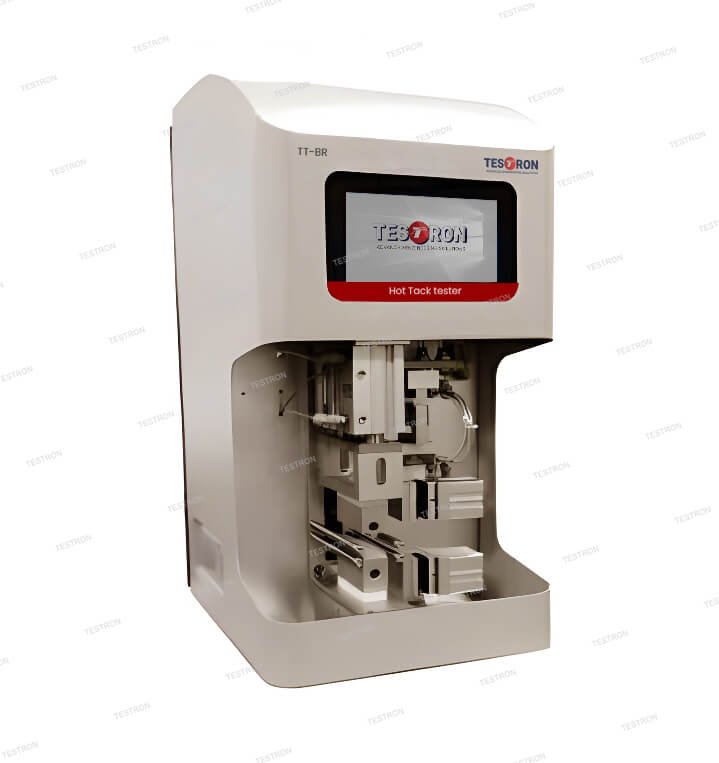

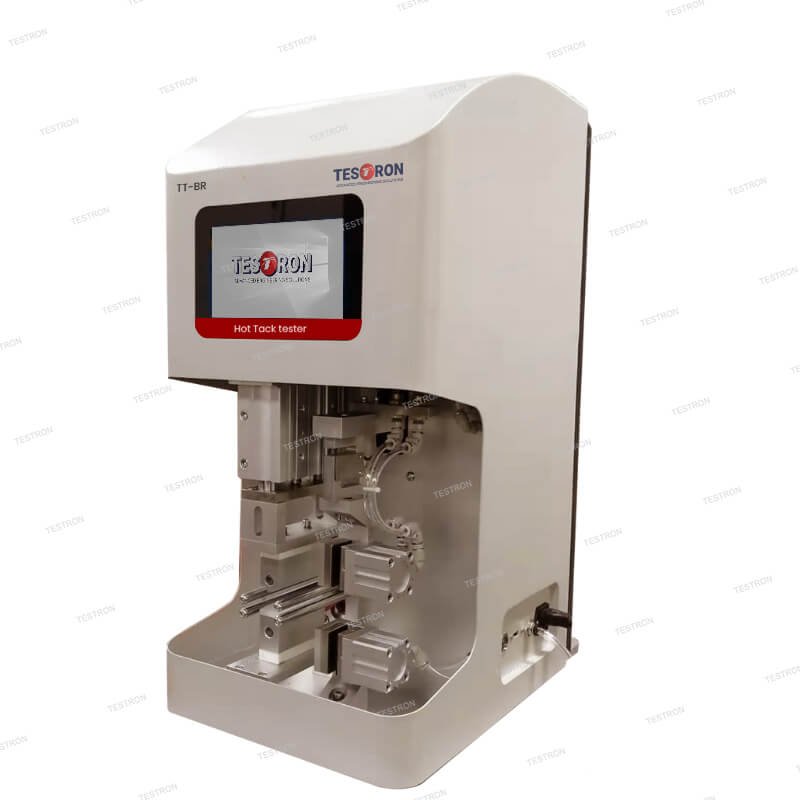

Standards:
ASTM F1921, ASTM F2029, QB/T 2358, YBB00122003

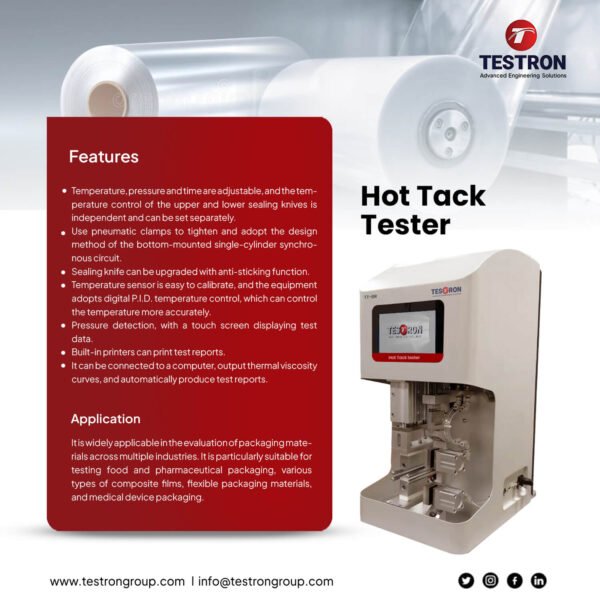

Features:
- LCD display test data
- Temperature, pressure, and time are adjustable; upper and lower heat seal bars can set different temperatures
- Use compressed air, pneumatic drive
- Built-in printer can print out report
- Can customize size, shape, and smoothness of heat seal bar
Technical Specifications:
| Item | Technical Parameters |
| Temperature range | Room temperature~250℃ |
| Temperature accuracy | ±1℃ |
| Heat sealing pressure | 0.04~0.8 MPa |
| Hot tack time | 0~99 s |
| Power supply | AC 220V，50 Hz |
| Instrument size | 600mm×320mm×500mm |
| Sample length | 200 mm |
| Force range | 0~300 N |
| Power | 2000 W |
