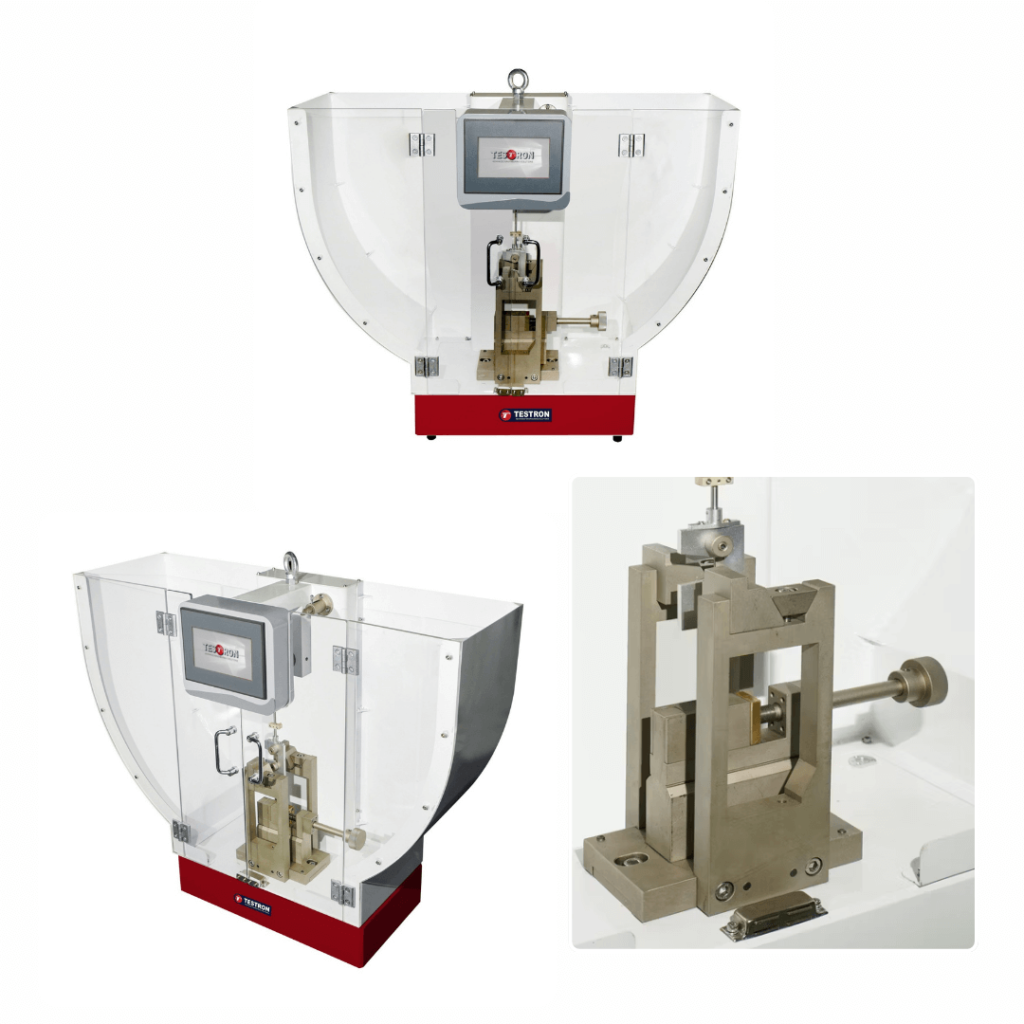

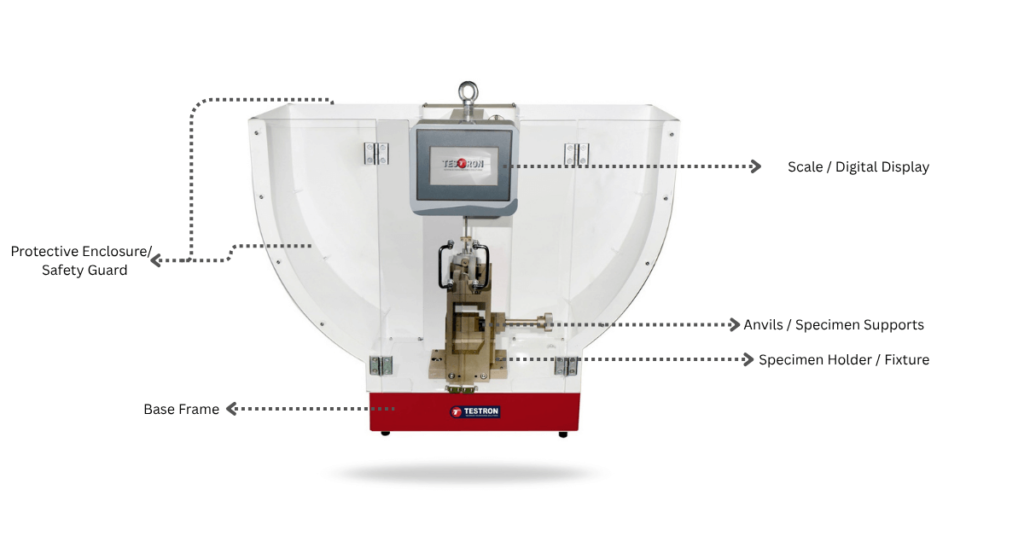

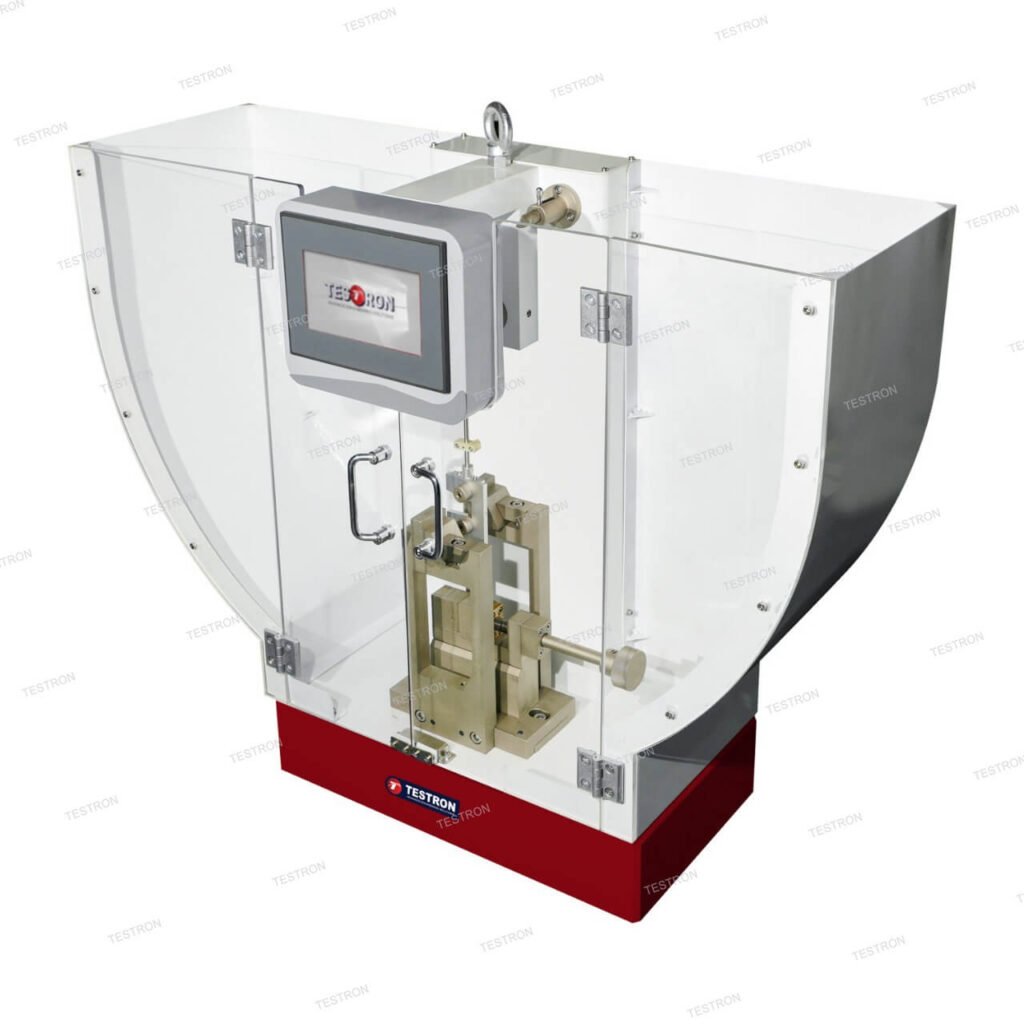

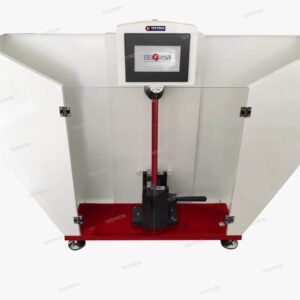

Charpy Impact Tester

Charpy Impact Tester Standards:

• ISO 179 Part 1 (non-instrumented impact test).

Charpy Impact Tester Features:

• Impact speeds of 2.9m/s & 3.8m/s, as well as multiple impact energies, can be generated by one pendulum.
• High mass, traditional pendulum design concentrates energy at the impact point with minimal energy loss due to vibration.
• The electrics contain a high-resolution encoder for accurate measurement of the impact angel.
• Touch screen control for quick and easy input of parameters
• Results are automatically corrected for energy loss due to air and mechanical friction.

Charpy Impact Tester Technical Parameters:

• Energy levels (max capacity): 1J, 2J, 4J and 5J (Model: CIT-5) / 15J, 25J, 50J (Model: CIT-50)

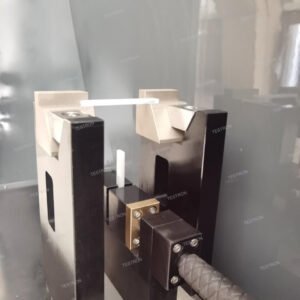

• The span of Charpy: 62mm
• Charpy testing impact speed: 2.9 m/s (Model: CIT-5); 3.8m/s (Model: CIT-50)
• Measurement resolution: 0.01J

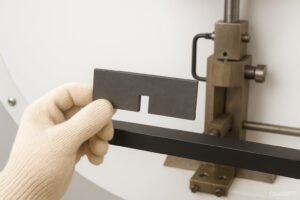

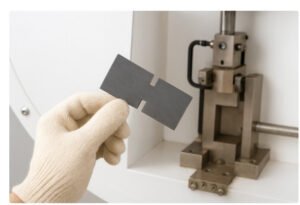

• Notch A: 45º±1º Radius of the notch bottom, R=0.25±0.05mm
• Notch B: 45º±1º Radius of the notch bottom, R=1±0.05m
• Notch C: 45º±1º Radius of the notch bottom, R=0.10±0.02mm
