Drop Weight  Impact Tester

The test results , especially the True Impact Rate ( TIR ) , provide a reliable estimate of a production batch’s compliance. Manufacturers often adopt the round the clock method or staircase method to determine the TIR , ensuring quality consistency across every production run.

When selecting the best falling weight impact tester or drop weight impact test machine, it’s essential to consider not only the drop weight impact test standard compliance but also the machine’s adaptability for future testing requirements. Testron’s range of equipment is designed with long term durability, easy calibration , and compatibility with various drop weight impact test machine accessories, ensuring that laboratories and production facilities can handle diverse material testing needs without frequent equipment upgrades.

This adaptability makes our machines a cost effective choice in the long run, especially when you factor in the competitive drop weight impact tester price and the industry leading support provided by one of the top falling weight impact tester manufacturers. Whether you require a compact benchtop model for small scale testing or a fully automated drop weight impact testing machine for large production runs, Testron delivers unmatched reliability and precision, solidifying its position as a trusted partner in quality assurance.

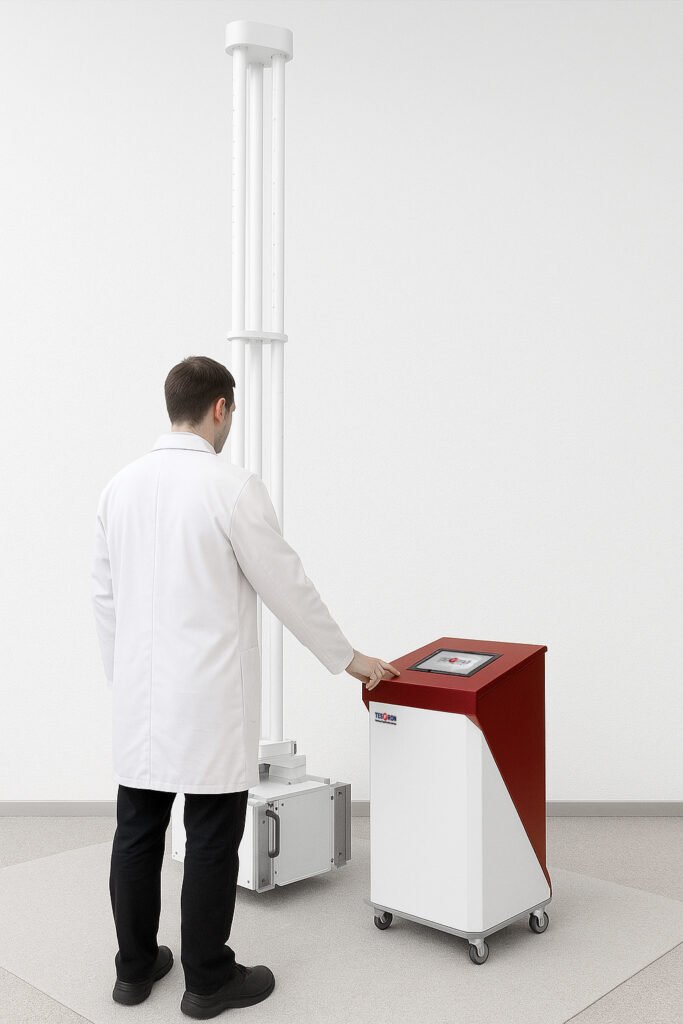

1. Falling Weight Impact Tester – Standard Model

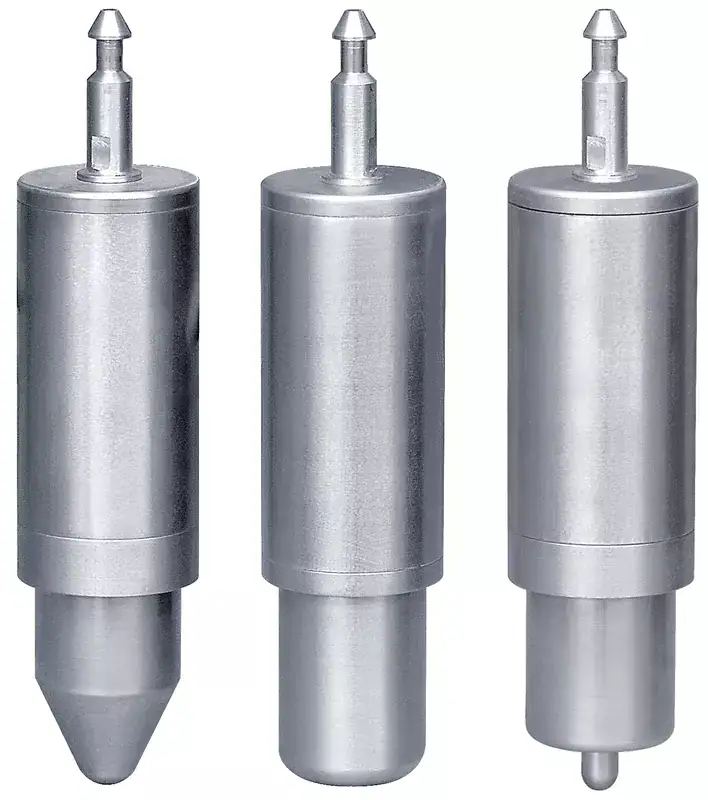

The standard Falling Weight Impact Tester is designed to determine the resistance of thermoplastic pipes with circular cross sections to external blows. A falling striker, with a specified mass and shape, is dropped from a known height onto the pipe’s circumference.

Key Highlights:

• True Impact Rate estimation for batch or production runs.
• Maximum TIR acceptance typically set at 10%.
• Suitable for both round the clock and staircase test methods.
• Robust construction for long term industrial use.

2. TT UL6 Falling Weight Impact Tester

The TT UL6 model is a specialized drop weight impact test machine designed for rigid PVC conduits (Schedule 40 and Schedule 80). It ensures precise and consistent test results with advanced safety and automation features.

Standards Compliance:

• ASTM D 2444
• UL 651 – Schedule 40 and 80 rigid PVC conduit

Features:

• Touchscreen interface for easy parameter setting and visual control.

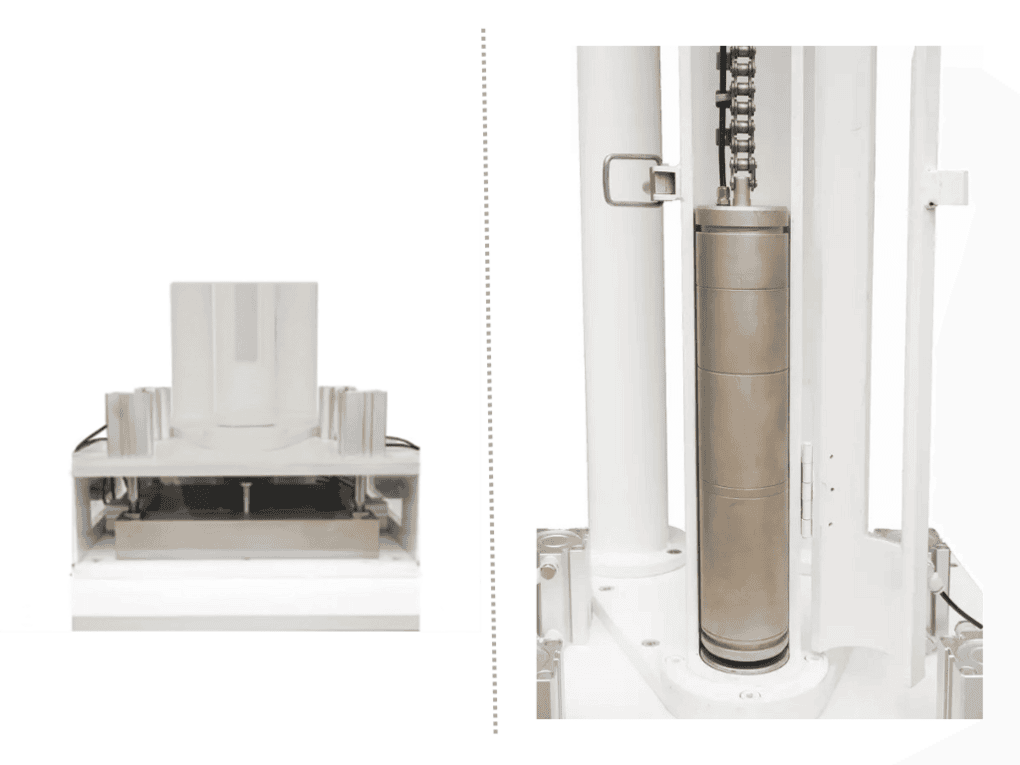

• Pneumatic anti rebound system to catch the striker post impact, improving operator safety.
• Adjustable impact height from 100 mm to 3350 mm.
• Automatic safety interlocks for chamber and striker window.
• High strength striker plates and polyurethane buffering for durability.
• Reduced air friction for smooth striker movement.

Technical Specifications:

• Impact height:- 100 mm – 3350 mm (±3 mm accuracy)
• Striker weight:- 9.1 kg (φ51) & 34 kg (φ150)
• Test specimen OD:- ½” to 6”
• Control Unit:- 550 × 650 × 1100 mm
• Main Frame:- 800 × 650 × 4350 mm
