ASTM D297-93-16 (Rubber) and ASTM D792-00 (Plastic) Density Testing
ASTM D297-93-16 (Rubber), ASTM D792-00 (Plastic), JIS K6268A, JIS K7112 (Plastic)
The determination of the specific gravity (relative density) and density of solid plastics in forms such as sheets, rods, tubes, or molded items; and the determination of the density and relative density of non-cellular plastics in the form of sheet, film, tube, molded objects, and molding powders, granules, and pellets are all covered by these test methods.
Features of Density Measurement for Rubber and Plastics
➢ Accurate measurement of the specific gravity of rubber, plastics, and much more
➢ High stability weighing sensor
➢ Auto-weighing function
➢ Powder Density, which improves working efficiency and accuracy
➢ Simple & convenient operation by placing the sample on top of the container, and then in the water container
Advantages of Using a Density Tester for Solid and Liquid Samples
➢ Measuring capacity up to 3kg
➢ Compact body and accurate density measurement for solid and liquid samples.
➢ Only 10 seconds to measure density and volume, just putting the sample into the water.
➢ Powder density measurement with a resolution of 0.001g/㎤ and a reference value of 0.0001g/㎤.
Technical Specifications

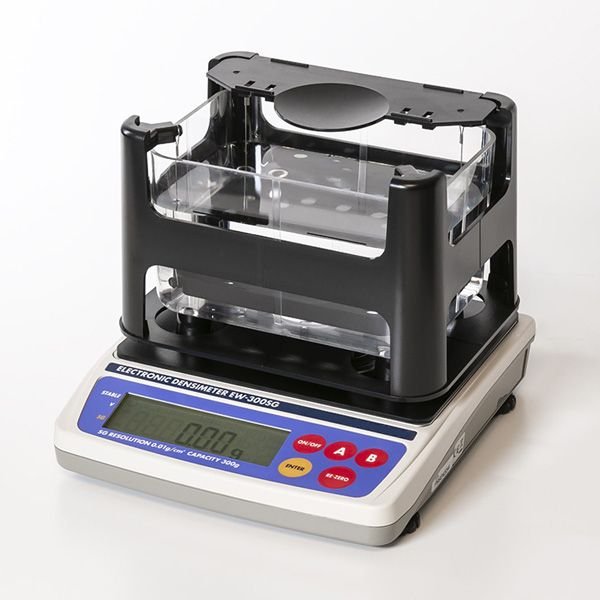

| Functions | EW300SG | MD300S | MDS300 | SD200L | MDS3000 |
| Density Resolution (g/㎤) | 0.01 | 0.001 | 0.001(0.0001) | 0.0001 | 0.01(0.001) |
| Volume Display (㎤) | 0.01 | 0.001 | 0.001 | 0.0001 | 0.001 |
| Scale Capacity (g) | 0.01 ~ 300 | 0.01 ~ 300 | 0.001(0.0001) ~ 300 | 0.0001~200 | 0.01(0.001) ~ 3000 |
| Repeatability (g/㎤) | ±0.01 | ±0.001 | ±0.001 | ±0.0001 | ±0.01 |
| ※Necessary weight against density | |||||
