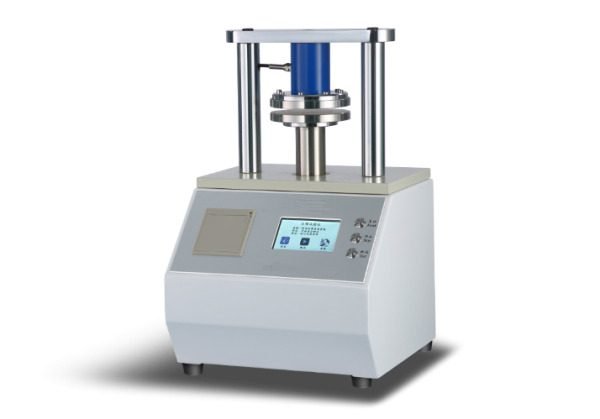

Crush tester is used to test the compression (crush) resistance in vertical direction of corrugated paper, kraft paper and paper board. With the proper accessories (optional), it can also test the bonding strength and horizontal pressure resistance. It meets TAPPI T472 and JIS P 8126 standards.
The crush tester is designed to perform standard TAPPI fiberboard tests such as flat crush, edge crush, ring crush and pin adhesion.
TT-Y1 Crush Tester Features:
The instrument is equipped with corresponding auxiliary equipment for the following tests:
- Equipped with center plate and special sampling device for ring crush test to carry out ring crush test for paper and cardboard (RCT）.
- Equipped with edgewise crush (bonding) sampling device and auxiliary guide block to carry out edge crush test for cardboard (ECT).
- Equipped with peeling strength test rack for adhesive (stripping) strength test of corrugated board (PAT）.
- Equipped with flat crush sample sampler for flat crush strength test of corrugated board (FCT);
- Equipped with vertical fluter and auxiliary equipment for laboratory CCT and CMT test, that is, measure the vertical or flat crush strength test of corrugated board).
- Equipped with thickness test pads for thickness test of paper, cardboard, corrugated board, or other sheets.
TT-B25 Edge Crush Test Sample Cutter (ECT)
TT-B25 ECT Sample Cutter is the special sampling apparatus for marginal-pressure strength test and adhesive strength test of the corrugated cardboard. The sampler is in line with the relevant provisions of the QB/T1671 Standard and it can cut the sample of the predetermined size quickly and accurately. It is the ideal auxiliary test equipment for production, scientific research and quality supervision and inspection of the corrugated cardboard for related industries and sectors.
It used to cut sample of corrugated board which are needed o do ECT or PAT.
TT-H152 Ring Crush Test Sample Cutter (RCT)
TT-H152 Sampler is used to cut the Sample for the RCT and CMT test. It has high machining precision and easy to used. The sampler, with advantages of high sampling dimensional accuracy, simple operation, etc., is an ideal auxiliary test appliance for papermaking, packaging, scientific research and quality inspection industries and departments.
