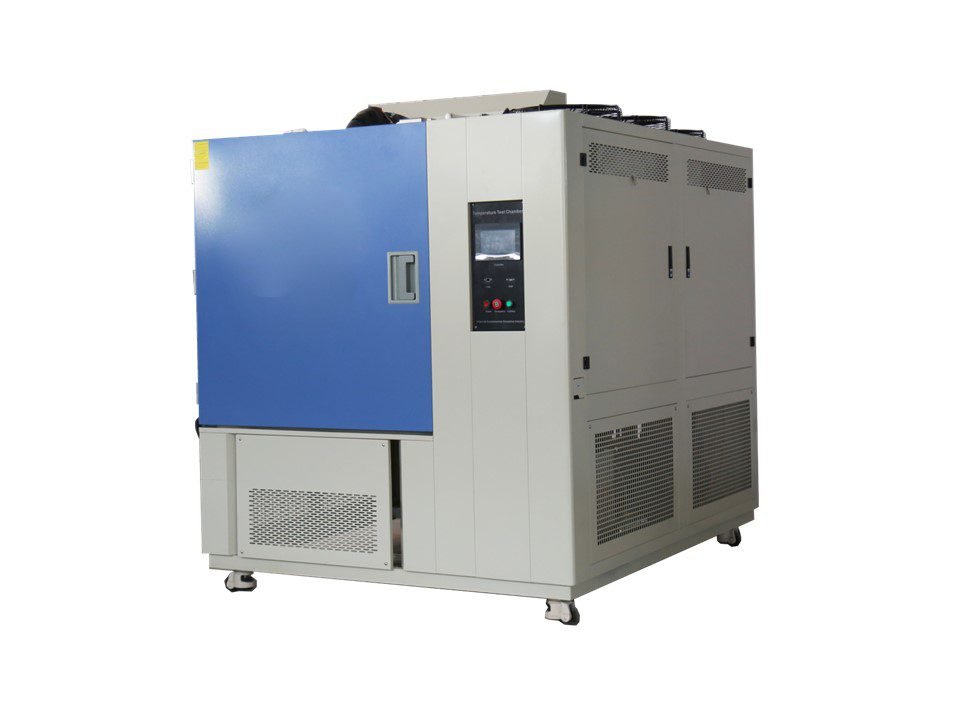

Altitude Test Chamber provides simultaneous environmental testing with temperature, altitude, and optional humidity. Users of an altitude chamber can regulate the temperature of the environmental test room while exposing the product being tested to various altitudes.
In order to imitate the precise altitude above sea level during testing in the aeronautics sector, an efficient combined control of temperature and pressure must be ensured. In some circumstances, humidity management is also important.
Below is the spec of our Altitude Test Chamber Model: AT-270B:
| Model | AT-270B | ||
| Internal Dimension (mm) | 600(D) * 600(W) * 750(H) | ||
| Overall Dimension (mm) | 1350(D) * 1550(W) * 2100(H) | ||
| Interior Volume | 270 liters | ||
| Parameter | Temperature | Range | -40℃ ~ +100℃ |
| Fluctuation | ≤1.0℃ (Ambient pressure, empty loads) | ||
| Deviation | ≤±2.0℃ (Ambient pressure, empty loads) | ||
| Uniform | ≤2.0℃ (Ambient pressure, empty loads) | ||
| Heating Rate | Average value 3.0 ℃/min (Ambient pressure, empty loads) | ||
| Cooling Rate | Average value 1.0 ℃/min (Ambient pressure, empty loads) | ||
| Pressure | Range | 30kpa ~ 125kpa | |
| Deviation | ≤±2kPa (when pressure ≥40kpa)≤±5% (when pressure 30～40kPa) | ||
| Recovery rate | ＜ 10kpa/min | ||
Contact our sales to learn more about our machines and support services: info@testrongroup.com
